Spec Sheet
Product Specs
- Action:
- Momentary
- Actuator:
- Rotary
- Bezel:
- Black
- Environmental Rating:
- IP66, NEMA 4X, 13
- Etching Code:
- X1, X0, X2
- Illumination:
- Non-illuminated
- Inscription:
- I, O, II
- Notes:
- Includes contact block mounting adapter. Can be converted in the field to maintained operation with the removal of a color coded adapter.
- Number Of Positions:
- Three-position
- Operating Cycles:
- 100,000 operations
- Series:
- M22
- Department:
- Electrical
- Product Group:
- Sensors & Switches
- Product Subgroup:
- Switches
- Product Type:
- Selector switch
- Product Size:
- 22.5 mm
- Product Length:
- 1.17 IN
- Product Details:
- Selector switch
- Product Height:
- .93 IN
- Product Weight:
- .995 LB
- Product Width:
- 1.17 IN
- Certifications:
- CSA Certified
- Compliances:
- GoST-R
B-LINE M22S-W3 – Frequently Asked Questions
1) Does the M22S-W3 selector switch include contact blocks, or do I have to order them separately?
The M22S-W3 is an operator only. It ships with the contact block mounting adapter, but the contact blocks themselves are separate and have to be ordered to suit the circuit you're switching. Plan on one block per contact you need behind the three-position rotary actuator.
2) What panel hole size does the M22S-W3 selector switch need?
It's a 22.5 mm operator, so it drops into the standard 22.5 mm panel cutout used across the M22 line. Body footprint is 1.17 x 1.17 x .93 inches, which is what you want to check for clearance behind the panel once a contact block stack is attached.
3) Is the M22S-W3 spring return or does it stay where you turn it?
Out of the box it's momentary, so it springs back to center from either side. It can be converted in the field to maintained operation by removing a color coded adapter, so if you need the selector to hold position for a hand/off/auto style circuit you don't need a different part number.

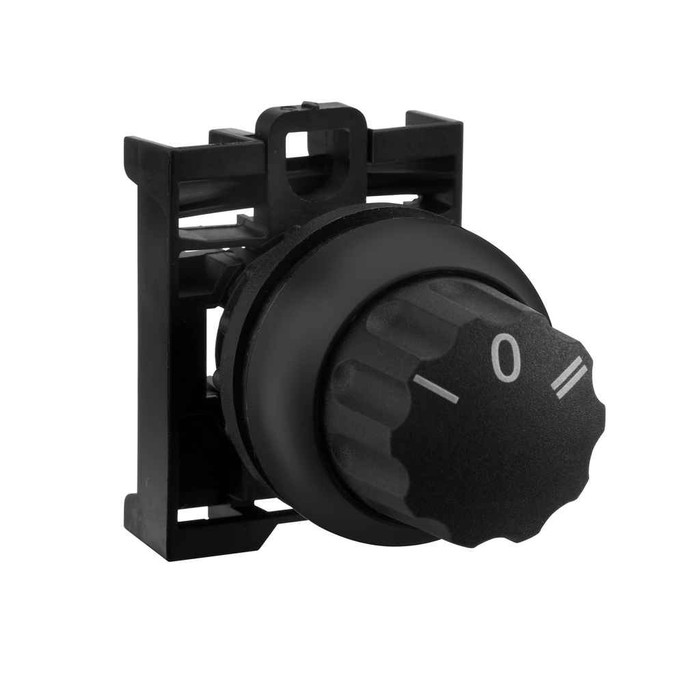

4) What is marked on the M22S-W3 knob positions?
The three positions are inscribed I, O and II, with etching codes X1, X0 and X2. That's the standard two-source or two-speed layout: one supply on the left, off in the center, the second on the right. If your drawing calls for hand/off/auto lettering, this is not the marked version you want.
5) Will the M22S-W3 mount in an existing M22 control panel cutout alongside my other buttons?
Yes. It uses the same 22.5 mm M22 mounting as the rest of the series, so it standardizes straight into an existing row of M22 pushbuttons and pilot devices and shares the same contact block mounting adapter system. Useful if you're keeping one spares kit for a whole facility.
6) What part number do I order for this B-Line three-position momentary selector switch?
Order it as M22S-W3. That single model covers the black bezel, non-illuminated, three-position rotary momentary operator with I / O / II marking.
7) Is the M22S-W3 selector switch illuminated?
No, it's a non-illuminated rotary operator with a black bezel. There's no lamp holder position in it, so if you need the selector itself to indicate state you'll want a separate pilot light in the panel alongside it.
8) How many operations will this selector switch take before it wears out?
The mechanical life on the M22S-W3 operator is 100,000 operations. For a switch cycled a handful of times per shift that's a long service life; for something thrown continuously on a production machine, expect to plan replacement into the maintenance cycle.
