Baldwin Estate PD016 Boulder Privacy Set 2-1/2" Backset Sliding Door Lock
Model: BAL-PD016PRIV
Baldwin Estate PD016 Boulder Privacy Set 2-1/2" Backset Sliding Door Lock
Satin Nickel that is smooth and clean is a nickel-plated brass, bringing the beauty of the finish with the weight of brass...
Baldwin
$953.00
$659.77

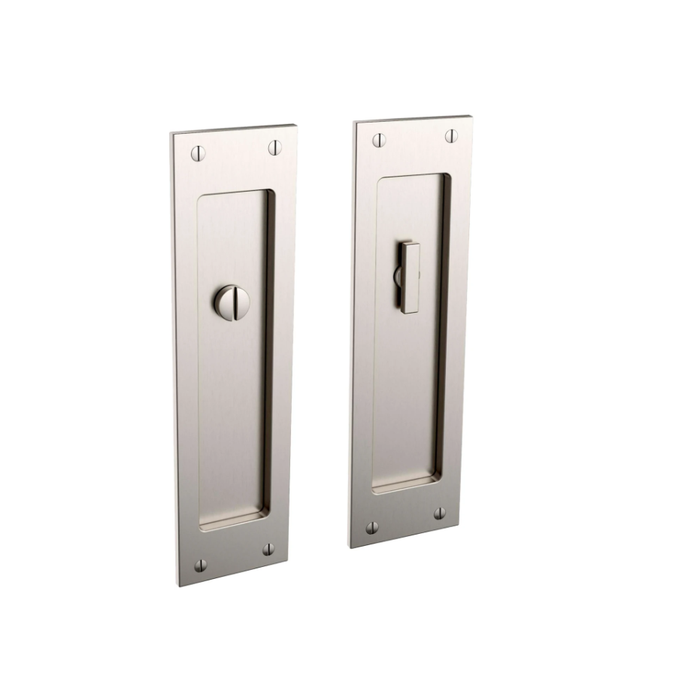

Baldwin Estate PD005 Large Santa Monica Privacy Set 2-1/2" Backset Sliding Door Lock
-
For those who appreciate the patina that comes with a well-loved vintage piece, Baldwin's living finish Non- Lacquered Brass, allows for natural darkening over time.
-
Our passage sets include 2 plates with a spring loaded lock, and our privacy sets include a privacy lock, egress plate, thumb turn plate.
-
Crafted with precision, the Santa Monica Pocket Door Set is a stunning combination of form and function. Its sleek design complements any contemporary or modern interior décor, while its sturdy construction meets the high standards of Baldwin's commitment to excellence.
-
A new surface mounted design that measures about 6.25" tall.
Manufacturer Resources
Product Specs
- Collection:
- Estate Series
- Subcategory:
- Bored Locksets
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Pocket Door Locks
- Commercial/Residential:
- Residential
- Keyed:
- Yes
- Lock Function:
- Privacy
- Cylinder and Keyways:
- C-Keyway
- Keyed Function:
- Single Cylinder
- Product Function:
- Privacy/Bed/Bath
- Door Hand Direction:
- Reversible
- Door Thickness Range:
- 1-3/8"
- Product Design:
- Santa Monica
- Product Dimension:
- 2-3/10" x 8-3/10"
- Keyway Profile:
- C-Keyway
- Door Strike:
- Pocket Strike
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Baldwin PD005056PRIV – Frequently Asked Questions
1) What actually comes in the Baldwin PD005 privacy pocket door set?
The privacy version ships with the privacy lock itself, an egress plate for the outside, and a thumb turn plate for the inside. A pocket strike is the strike type used with it. If you want a non-locking opening instead, the passage version is the one with two plates and a spring loaded latch rather than a privacy lock.
2) Is this pocket door lock surface mounted or does it mortise into the door edge?
Santa Monica PD005 uses a surface mounted design, roughly 6.25 inches tall, with plate dimensions of 2-3/10 x 8-3/10 inches. Surface mount means you are screwing to the face of the slab rather than routing a deep mortise pocket, which matters on a thin 1-3/8 inch door where there is little material to remove.
3) Can the bathroom side of this pocket door lock be unlocked from outside in an emergency?
Yes. The privacy set includes an egress plate on the outside and a thumb turn plate on the room side, so the occupant locks with the thumb turn and the lock can be released from the egress side. It is a privacy/bed/bath function, not a keyed security lock.
4) Do I have to order a left or right hand version of this Baldwin pocket door set?
No handing to specify. The PD005 Santa Monica set is reversible, so the same set works whether the pocket is on the left or the right of the opening. Useful if you are buying several for a floor of bathrooms and do not want to track which way each slab slides.
5) What finishes does the Baldwin Estate Santa Monica pocket door privacy set come in?
Four: 056 Lifetime PVD Satin Nickel, 102 Oil Rubbed Bronze, 190 Satin Black, and 260 Polished Chrome. The Lifetime PVD Satin Nickel is the one to pick if you want the finish to stay as-shipped; Baldwin's Non-Lacquered Brass living finishes are the ones that darken naturally over time, and that option is not part of this group.
6) Is this Baldwin pocket door lock suitable for a commercial corridor or office?
It is specified as residential. The Estate Series Santa Monica pocket door set is meant for homes and residential units (bed and bath privacy), so for a commercial opening with high traffic or code-driven hardware requirements you want commercial-rated hardware instead.
7) Does the Santa Monica pocket door set take a key, and what keyway?
Baldwin lists this set as keyed with a single cylinder on Baldwin's C-Keyway. That matters if you are standardizing a house on one key: C-Keyway is Baldwin's own profile, so it keys alongside other Baldwin C-Keyway cylinders rather than a Schlage or Kwikset keyway.
8) What strike do I need for this pocket door lock, and does the jamb need prep?
It works with a pocket strike, which is the strike type listed for the PD005 set. Since the lock is surface mounted to the slab face and about 6.25 inches tall, plan on prepping the jamb to receive that pocket strike at matching height rather than reusing a standard latch strike from a swinging door.
9) I need to match other pocket doors in the same house. What identifies this exact Baldwin set?
Ask for the Baldwin Estate PD005 Large Santa Monica privacy set, 2-1/2 inch backset, with the finish code. Design name is Santa Monica and the collection is Estate Series. Matching a neighbouring door means matching both the PD005 design and the finish code, since the four finishes are not interchangeable in appearance.
