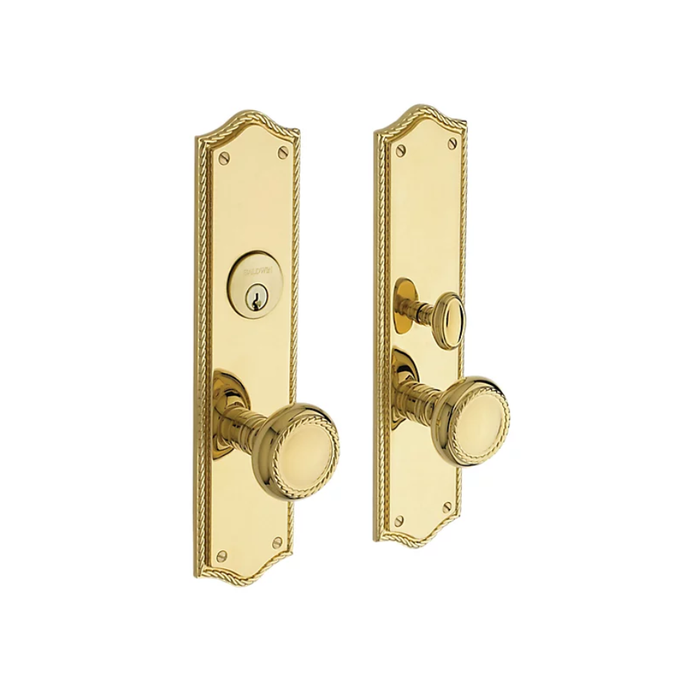

Baldwin Estates 6554 Barclay Single Cylinder Entry Mortise Trim

No. The 6554 Barclay is mortise trim, so the door has to be prepped for a mortise lock body, which is a pocket cut into the edge of the door plus faces bored for the cylinder, knob spindle and turn. It will not drop onto a door bored for a tubular or cylindrical lockset. If the door is already prepped bored, a tubular handleset like the Sure-Loc Alta is the type that fits that prep.

The Barclay 6554 is decorative trim only. A full mortise installation needs the mortise lock body, the strike, the cylinder and the knob or lever, and the trim is one component of that set. The trim is shown with the 5064 knob. Plan the order as a package, not a single part.

It is specified for a 1-3/4 inch door, the standard exterior thickness. Baldwin accommodates thinner or thicker doors on this trim with alternative length spindles and mounting hardware, so a non-standard door is not automatically out, but the spindle and hardware have to be changed to suit.

Handing is not a factor. The Barclay trim is reversible, so one part number covers either swing. The mortise lock body behind it is what gets set for hand at install.

Yes, within the C keyway. The Barclay entry trim is single cylinder and uses Baldwin's C keyway, and it can be ordered keyed alike or keyed different. Keyed alike only works across cylinders sharing that same C keyway, so mixed-brand doors on an SC1 or KW1 keyway will not key into the same system.

The Barclay plate measures 2-3/4 x 11 inches. Measure the existing plate before you commit: an 11 inch plate covers a shorter footprint underneath, but any prior boring or screw holes falling outside that 2-3/4 inch width will still show. The mortise pocket itself has to be cut for the new lock body regardless.

It is a residential product. For apartment unit doors, a clubhouse or an owner's residence it is a fine choice, but for a commercial opening with traffic and code expectations you want a Grade-rated set. The Schlage Residential F60 Addison and the Master Lock HDLB Series handleset are both Grade 2, and the Kwikset 687 Amador is Grade 3.

The Barclay 6554 is decorative entry trim for a mortise application, and mortise preparation is a distinct door condition from a bored prep. Among comparable mortise entrance handlesets, Emtek offers the 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan brass mortise entrance handlesets, all of which are dummy function rather than keyed. The Barclay 6554 is single cylinder keyed entry on a C-keyway, so on a mortise opening that needs a key the Barclay trim is the keyed option and the Emtek 3002 through 3006 group covers the same mortise look in dummy function for an inactive leaf.

The Barclay 6554 requires mortise door preparation, which is cut differently from a standard bored and deadbolt prep. For a bored opening, the Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is Grade 2 and fits doors 1-3/8 inch to 1-3/4 inch, and the Master Lock HDLBA0615/4D is a Grade 2 single cylinder deadbolt handleset in the HDLB Series. Weslock also offers the 2810 Hillcrest single cylinder handleset with Hudson knob for doors 1-3/8 inch to 2 inch. Any of these lands on a conventional prep, where the Barclay trim needs the mortise cut.

They serve the same entry opening but are not the same kind of part. The Deltana 803871B Hanover, 815871 St. Ann and 825871 Kingston are complete solid brass entry handlesets. The Barclay 6554 is decorative entry trim for a mortise application, where the full mortise specification calls for multiple components and this trim is one of them. If the opening is already carrying a mortise lock body and needs new decorative trim, the Barclay is the match; if the door needs a complete handleset assembly, the Deltana Hanover, St. Ann and Kingston are complete units.

The Barclay 6554 trim is specified for 1-3/4 inch doors. For thicker stock, the Weslock 1411 Traditionale Colonial handleset with Eleganti knob is single cylinder and covers 1-3/4 inch to 2-1/4 inch, and the Yale Real Living BYRD226NRRX Assure Lock standalone touchscreen deadbolt with Ridgefield handleset also covers 1-3/4 inch to 2-1/4 inch. On the thinner side, the Deltana 810871 Montego handleset spans 1-3/8 inch to 2 inch. Confirm the actual door thickness before ordering, since the trim and spindle length follow from it.

Single cylinder means key outside, thumbturn inside. That is the usual choice for a front entry and the one most jurisdictions expect on an egress door. The Barclay design is also made in a double cylinder version (key both sides) if the door has glass beside the lock, along with full dummy and exterior-only versions.

Yes. The Barclay entry trim is shown with the 5064 knob, but Baldwin lets you substitute any knob or lever from the range. The escutcheon plate can also be used on its own to build passage, privacy or dummy sets, and it is made cut for cylinder, cut for emergency release, cut for knob, cut for turn knob, and cut for privacy.

The Barclay 6554 is specified at 1-3/4 inches. Handlesets we carry with a stated range that covers 2 inches include the Deltana 810871 Montego at 1-3/8 to 2 inches, the Weslock 2810 Hillcrest at 1-3/8 to 2 inches, and the Weslock 1411 Traditionale at 1-3/4 to 2-1/4 inches. Those are tubular or bored handlesets, not mortise trim, so the door prep is different.

For the second leaf, Barclay is made in a full dummy version, which keeps the same arch plate and knob with no lock function. If you are not tied to Baldwin, dummy mortise handlesets in the Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan designs cover the same job, and the Weslock 6695 Belmont is a dummy handleset as well.

The Barclay 6554 is single cylinder on Baldwin's C-keyway. For a property standardized elsewhere, the Kwikset 687AMD SMT Amador and 687BW SMT Belleview are Grade 3 single cylinder keyed entry handlesets with SmartKey, exterior only, for 1-3/4 inch doors, and the Kwikset 687AMD SMC Amador is the same handleset on the SC1 keyway with SmartKey. The Schlage Residential F60 Addison single cylinder keyed entry with Accent lever is Grade 2 for 1-3/8 inch to 1-3/4 inch doors. The Barclay can be supplied keyed alike or keyed different across an order.

The Barclay 6554 is a keyed single cylinder mortise trim with no electronic function. For electronic access on a handleset opening, the Yale Real Living BYRD226CBARX Assure Lock is a Wi-Fi and Bluetooth touchscreen deadbolt with Ridgefield handleset for 1-3/4 inch to 2-1/4 inch doors, the BYRD226NRRX is the standalone touchscreen version for the same thickness range, and the BYRD256 CBARX is a key-free Wi-Fi touchscreen deadbolt with Ridgefield passage handleset and trim. The Kwikset 815SCEHFL-CP913CNT San Clemente handleset pairs a Halifax lever interior trim with a contemporary SmartCode keypad electronic deadbolt, SmartKey, RCAL latch and RCS strike, for 1-3/4 inch doors.

The Barclay escutcheon can itself be used to build passage, privacy or dummy sets by substituting the knob or lever, so the same Barclay plate carries across a run of doors where only some are keyed. If a separate non-keyed handleset is preferred, the Weslock 6695 Belmont dummy handleset with Impresa knob covers 1-3/8 inch to 2 inch, the Weslock 2815 Hillcrest dummy with New Heaven lever covers the same range, and the Schlage JE285 Barcelona handleset with Seville lever is a Grade 2 non-keyed entry function for 1-3/8 inch to 1-3/4 inch doors.

The Barclay 6554 is mortise trim measuring 2-3/4 inch by 11 inch and follows the mortise lock body's prep rather than a bored backset. Where a bored door needs backset flexibility, the Sure-Loc Aspen AN507 single cylinder keyed entry handleset and the Sure-Loc Madison MA507 keyed entry handleset both have adjustable backset, as do the Sure-Loc Alta AT507 tubular handleset and the Coral CR507 handleset. Those are tubular or bored handlesets, so the door prep differs from the mortise cut the Barclay trim goes onto.

The Barclay 6554 is Estates Series entry trim built for a mortise opening, where the full specification takes several components. For a straightforward keyed entry on a conventional door, the Pamex FS7P31 Lexington single cylinder handleset in satin nickel is entry function for 1-3/8 inch to 1-3/4 inch doors, and the Weslock 2810 Hillcrest single cylinder handleset with Hudson knob is Premiere Essentials for 1-3/8 inch to 2 inch doors. Both are self-contained handlesets on a bored prep, while the Barclay is decorative trim that assumes a mortise lock body.

Polished Brass PVD, Baldwin finish code 003. PVD means the brass is vapor-deposited rather than lacquered, which is the finish to pick for a sun-exposed or coastal front door where a lacquered brass would break down. It is a bright, mirror-polished gold, so match it against the existing hinges and door knocker before ordering.

It is mechanical, key operated on a C keyway with no electronics. For keyless on an entry door we carry the Yale Real Living Assure Lock touchscreen deadbolts paired with the Ridgefield handleset, including a Wi-Fi and Bluetooth version, and the Kwikset 815 San Clemente handleset with a Smartcode keypad deadbolt and Halifax interior lever.
