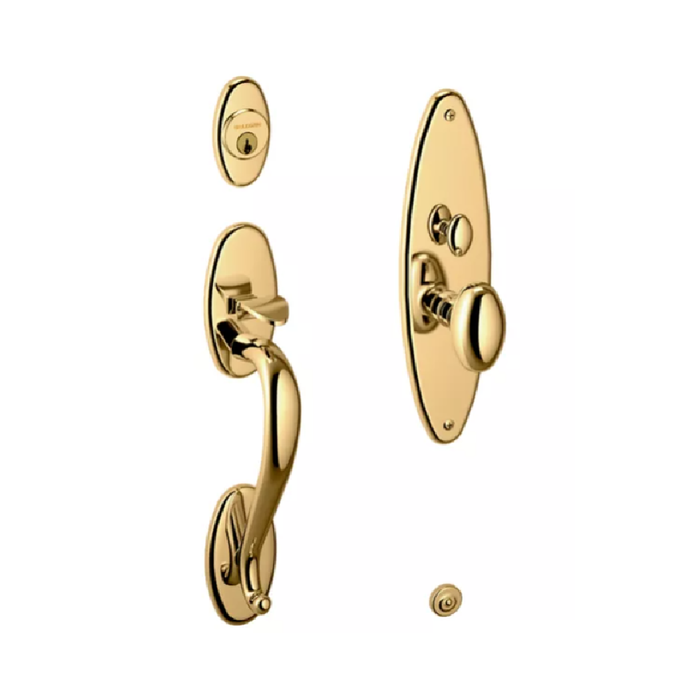

Baldwin Estates 6560 Lexington Single Cylinder Entry Mortise Trim
The Lexington Entrance Trim is a unique, elegant handle design, perfect for any home front door.
Shown in Standard Entry Function, but also available in Double Cylinder, Full Dummy, Exterior Only, and Back to Back, as well as individual escutcheons cut for Cylinder, Emergency Release, Knob, and Turn Knob.
Customize by substituting any interior knob or lever of your choice, or by utilizing the interior escutcheon plate to create passage, privacy, dummy, or entry sets. Thin and thick door kits are available to accommodate a wide range of door conditions and applications.
The mortise application is a unique door condition that requires custom door preparation, specification, and installation. The full mortise specification requires multiple components, including this decorative trim. Please note that the mortise lock body and the cylinder are sold separately. To learn more about specifying mortise, please refer to the "Know Before You Go" section on this page.
Manufacturer Resources
Product Specs
- Collection:
- Estates Series
- Subcategory:
- Handlesets
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Handlesets
- Commercial/Residential:
- Residential
- Keyed:
- Yes
- Lock Function:
- Entry
- Lever Knob Design:
- 5025 Knob
- Cylinder and Keyways:
- C-Keyway
- Keyed Function:
- Single Cylinder
- Product Function:
- Entrance
- Door Hand Direction:
- Reversible
- Door Thickness Range:
- 1-3/4"
- Product Design:
- Lexington
- Product Dimension:
- 2-1/4" X 11-7/20" Handle, 1-11/16" x 3" Cylinder
- Keyway Profile:
- C-Keyway
- Door Strike:
- Mortise
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Baldwin 6560003ENTR – Frequently Asked Questions
1) Does the Baldwin Estates 6560 Lexington entry trim come with a lock body and cylinder?
No. The 6560 Lexington is decorative mortise trim only. The mortise lock body and the cylinder are both sold separately, so a complete opening needs three orders: the trim, the mortise lock body, and a C-keyway cylinder. Budget and specify all three before the door goes to prep.
2) What door thickness does the Baldwin 6560 Lexington handleset trim fit?
As supplied, the Lexington 6560 trim is set up for a 1-3/4 inch door, the standard exterior door thickness. Baldwin offers thin and thick door kits to take it outside that, so a door that is thinner or thicker than 1-3/4 inches is workable but needs the matching kit specified with the order.
3) Can I use the Baldwin Estates 6560 Lexington trim on a standard bored (tubular) door prep?
No. The Lexington 6560 is mortise trim and needs a mortise pocket cut into the door edge plus the matching face prep. A door bored for a tubular handleset will not take it. Mortise is a custom door condition, so the door has to be specified and prepped for mortise before the trim ships. If the door is already bored for a tubular set, look at a tubular handleset instead, such as the Sure-Loc Alta tubular handleset with adjustable backset.
4) Is the Baldwin Lexington 6560 handleset handed, or will it work on a left or right hand door?
Reversible. One part covers both hands of door, so you don't have to declare handing when you order the trim. Handing still gets set by the mortise lock body you pair it with, which is the piece that carries the latch.
5) What does single cylinder mean on the Baldwin 6560 Lexington, and can I get it keyed on both sides?
Single cylinder means one key cylinder on the exterior and a thumbturn or knob on the inside, so nobody needs a key to get out. The Lexington entrance trim is also made in a double cylinder version, which takes a key on both faces, plus full dummy, exterior only, and back to back configurations. If the door has glass beside it and local code allows keyed-both-sides, double cylinder is the version to order.
6) What is the closest alternative to the Baldwin Estates 6560 Lexington handleset if the door is not prepped for a mortise lock?
The Baldwin Estates 6560 Lexington is mortise trim - it uses a mortise strike, and the mortise lock body and cylinder are separate components, so the door has to carry a full mortise pocket. If the door is bored rather than mortised, the Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is a Grade 2 entrance handleset that fits doors 1-3/8 inch to 1-3/4 inch, and the Weslock 2810 Hillcrest single cylinder handleset with Hudson knob covers 1-3/8 inch to 2 inch. Both are keyed entry handlesets that do not require a mortise pocket in the door.
7) Which handleset matches the Baldwin 6560 Lexington on a 1-3/4 inch door for a single cylinder keyed entry?
The Baldwin Estates 6560 Lexington is specified for a 1-3/4 inch door in single cylinder keyed function. On the same 1-3/4 inch thickness, the Kwikset 687AMD SMT Amador single cylinder handleset is a Grade 3 entrance set, and the Kwikset 687BW SMT Belleview single cylinder handleset is likewise Grade 3 entrance at 1-3/4 inch. Both Kwikset sets are exterior-only trim, so the interior side is specified separately - the Baldwin 6560 is also configured with the interior escutcheon or a substituted knob or lever of your choice.
8) What is the difference between the Baldwin 6560 Lexington and the Pamex FS7P31 Lexington handleset?
Both carry the Lexington design name, but they are different specifications. The Baldwin Estates 6560 Lexington is mortise trim in a single cylinder entry function on a 1-3/4 inch door, keyed to the C-keyway, with the lock body and cylinder ordered as separate parts. The Pamex FS7P31 Lexington single cylinder handleset is an entry-function set in a satin nickel finish for doors 1-3/8 inch to 1-3/4 inch. If the door already has a mortise pocket cut for it, the Pamex is not a drop-in for the Baldwin.
9) I need a handleset that looks like the Baldwin 6560 Lexington but does not lock - what do I order for a non-active door?
For an inactive leaf or a double-door where only one side operates, dummy handlesets carry the same exterior appearance without a working latch. The Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose, and 3006 Manhattan are brass mortise entrance handlesets in dummy function, and the Weslock 6695 Belmont dummy handleset with Impresa knob fits doors 1-3/8 inch to 2 inch. The Baldwin Estates 6560 Lexington itself is also offered in a full dummy and an exterior-only configuration alongside the standard entry function.
10) The Emtek 3002 and 3004 are described as mortise entrance handlesets - are they interchangeable with the Baldwin 6560 Lexington?
They share the mortise description but not the function. The Baldwin Estates 6560 Lexington is a single cylinder entry set with a working keyed cylinder on the C-keyway. The Emtek 3002 Memphis and Emtek 3004 Hamilton brass mortise entrance handlesets are dummy function, meaning trim only with no latching or locking action. For a door that has to lock, a dummy set is not a substitute regardless of the matching mortise styling.
11) How big is the Baldwin 6560 Lexington escutcheon plate, and will it cover my old handleset's marks?
The handle plate measures 2-1/4 x 11-7/20 inches and the cylinder escutcheon 1-11/16 x 3 inches. Lay those against the existing prep before you commit: a mortise door prepped for a different plate outline can leave finish marks outside that footprint, and the Lexington plate is fairly narrow for its length.
12) What interior knob or lever comes with the Baldwin Lexington 6560 entry trim?
It is set up with the Baldwin 5025 knob on the inside, but the interior is open: you can substitute any Baldwin interior knob or lever you prefer, or use the interior escutcheon plate on its own to build a passage, privacy, dummy, or entry set. That is how you keep one exterior look while varying function room to room.
13) What finishes is the Baldwin Estates 6560 Lexington handleset available in?
Four: 003 Polished Brass PVD, 031 Non-Lacquered Brass, 056 Lifetime PVD Satin Nickel, and 102 Oil Rubbed Bronze. The two PVD finishes hold their color; 031 non-lacquered brass is a living finish and will darken and patina with handling and weather, which is the point for some front doors and a service call for others. Pick 003 if you want brass that stays bright.
14) Is the Baldwin Lexington 6560 handleset suitable for a commercial entrance or an apartment building?
It is a residential product, built for a house front door. For multi-family common doors or a commercial opening, a graded lockset is the right call. Among comparable handlesets, the Schlage Residential F60 Addison and the Master Lock HDLB Series single cylinder deadbolt handleset are both Grade 2, and the Kwikset 687 Amador is Grade 3.
15) I want the Lexington look but not a mortise door prep. What else could I buy?
A tubular or bored handleset skips the mortise pocket entirely and installs into a standard bore. The Pamex FS7P31 Lexington single cylinder handleset in satin nickel carries the Lexington name and fits doors from 1-3/8 to 1-3/4 inches. The Schlage Residential F60 Addison covers the same 1-3/8 to 1-3/4 inch range in a Grade 2 keyed entry, and the Sure-Loc Madison and Coral handlesets have adjustable backsets if the existing bore centers are uncertain.
16) My front door is 2 inches thick. Will the Baldwin 6560 Lexington work on it?
Not as it comes. The 6560 trim is configured for 1-3/4 inch doors and a thick door kit has to be added for anything heavier. If you would rather not deal with kits, the Weslock 1411 Traditionale colonial handleset covers 1-3/4 to 2-1/4 inches as standard, and the Weslock 6695 Belmont and 2810 Hillcrest both span 1-3/8 to 2 inches.
17) Is there a keypad or smart-lock handleset that can replace the Baldwin 6560 Lexington on a front door?
The Baldwin Estates 6560 Lexington is a keyed mechanical entry set on the C-keyway with no electronic function. If the requirement is keyless access, the Yale Real Living BYRD226CBARX Assure Lock Wi-Fi and Bluetooth touchscreen deadbolt with Ridgefield handleset and the BYRD226NRRX standalone touchscreen version both fit doors 1-3/4 inch to 2-1/4 inch, which covers the same 1-3/4 inch door the Baldwin is specified for. The Kwikset 815SCEHFL-CP913CNT San Clemente handleset pairs a Halifax lever interior with a contemporary SmartCode keypad electronic deadbolt on a 1-3/4 inch door. These are deadbolt-and-handleset assemblies rather than mortise trim, so the door preparation differs.
18) What do I use instead of the Baldwin 6560 Lexington on a door thicker than 1-3/4 inch?
The Baldwin Estates 6560 Lexington is specified at 1-3/4 inch, though thin and thick door kits are offered to accommodate a wider range of door conditions. If you would rather specify a handleset rated for the thicker door outright, the Weslock 1411 Traditionale Colonial handleset with Eleganti knob in single cylinder keyed entry covers 1-3/4 inch to 2-1/4 inch, and the Yale Real Living BYRD256 CBARX Assure key-free touchscreen deadbolt with Ridgefield passage handleset covers the same 1-3/4 inch to 2-1/4 inch range.
19) Which handleset should I choose if the backset in the existing door prep is uncertain?
The Baldwin Estates 6560 Lexington is mortise trim, so it follows the mortise lock body and the custom door preparation cut for it rather than a bored backset. When the existing prep is unknown and you want flexibility, the Sure-Loc Aspen AN507 single cylinder keyed entry handleset, the Sure-Loc Madison MA507 keyed entry handleset, the Sure-Loc Coral CR507, and the Sure-Loc Alta AT507 tubular handleset are all supplied with an adjustable backset.
20) What is a Grade-rated alternative to the Baldwin 6560 Lexington for a facility that specifies ANSI grades?
The Baldwin Estates 6560 Lexington is a residential-classification Estates Series trim. Where a written grade is required on the submittal, the Master Lock HDLBA0615/4D single cylinder deadbolt handleset in the HDLB Series is Grade 2 entrance, the Schlage Residential F60 Addison keyed entry handleset is Grade 2 entrance, and the Kwikset 687AMD SMC Amador single cylinder handleset with SC1 keyway SmartKey is Grade 3 entrance on a 1-3/4 inch door.
21) I want the handleset appearance on the front door but the locking handled by a separate deadbolt - what are the options next to the Baldwin 6560 Lexington?
The Baldwin Estates 6560 Lexington integrates the keyed function into the mortise assembly, with the lock body and cylinder specified as separate components. If you would rather the locking sit in a deadbolt above the handleset, the Schlage Residential JE285 Barcelona style handleset with Seville lever is a Grade 2 non-keyed entry set for 1-3/8 inch to 1-3/4 inch doors, and the Schlage Residential JI18/19 interconnected passage lock pairs a passage function with a keyed deadbolt and Torino lever in satin stainless steel on the same 1-3/8 inch to 1-3/4 inch range.
22) I have a pair of front doors and only want the handle look on the inactive leaf. What do I order?
The inactive leaf takes the dummy version. The Lexington entrance trim is made in a full dummy and an exterior only configuration, either of which gives you the matching handle with no lock function behind it. Keep the single cylinder entry trim on the active leaf so the two doors read the same from the street.
23) Can I order several Baldwin Lexington handlesets keyed to one key?
Yes, keyed alike is an option at order time, and it is the usual choice when a front door, side door, and garage entry should all run off one key. Every opening in the group has to take the same C-keyway cylinder. Keyed different is the alternative if each door should carry its own key.
24) Does the Baldwin 6560 Lexington need to be ordered handed, and how does that compare to the alternatives?
The Baldwin Estates 6560 Lexington is reversible, so one part number serves both a left-hand and a right-hand opening. Among the comparable entry handlesets, the Sure-Loc Aspen AN507 and Madison MA507 keyed entry handlesets ship with an adjustable backset, and the Weslock 2810 Hillcrest single cylinder handleset with Hudson knob is specified for doors 1-3/8 inch to 2 inch. If you are standardizing across several front doors of differing hand, the reversible Baldwin trim keeps the ordering to one line per finish.
