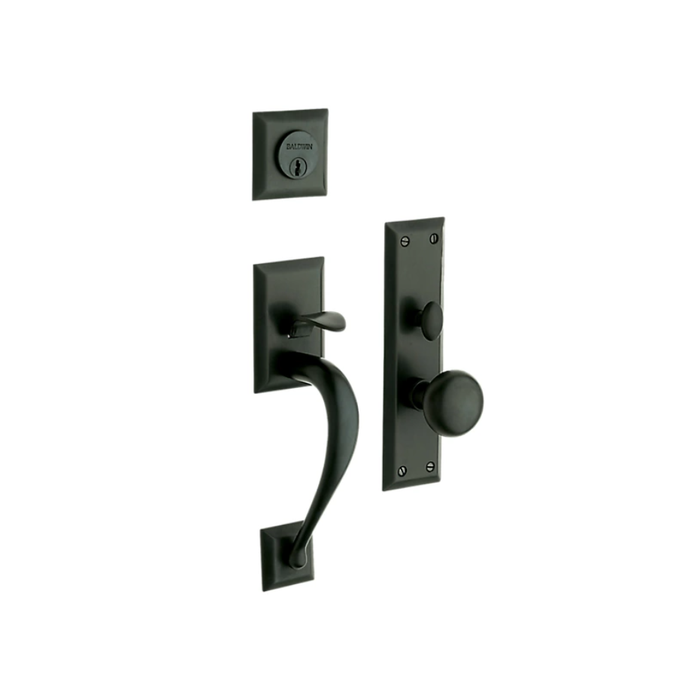

Baldwin Estates 6571 Concord Single Cylinder Entry Mortise Trim
-
The Concord Entrance Trim is an appealing and well-crafted square design that is perfect for any home front door.
-
Shown in Standard Entry Function, but also available in Double Cylinder, Full Dummy and Exterior Only, as well as individual escutcheons Cut for Cylinder, Cut for Emergency Release, Cut for Knob and Cut for Turn Knob.
-
Customize by substituting any interior knob or lever of your choice or by utilizing the interior escutcheon plate to create passage, privacy, dummy or entry sets. Thin and thick door kits available to accommodate a wide range of door conditions and applications.
-
The mortise application is a unique door condition that requires custom door preparation, specification and installation. The full mortise specification requires multiple components, including this decorative trim. To learn more about specifying mortise, please refer to the "Know Before You Go" section on this page.
Manufacturer Resources
Product Specs
- Collection:
- Estates Series
- Subcategory:
- Handlesets
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Handlesets
- Commercial/Residential:
- Residential
- Keyed:
- Yes
- Lock Function:
- Entry
- Lever Knob Design:
- 5000 Knob
- Cylinder and Keyways:
- C-Keyway
- Keyed Function:
- Single Cylinder
- Product Function:
- Entrance
- Door Hand Direction:
- Reversible
- Door Thickness Range:
- 1-3/4"
- Product Design:
- Concord
- Product Dimension:
- 2-1/2" x 9-2/5" Handle, 2-1/2" x 2-1/2" Cylinder
- Keyway Profile:
- C-Keyway
- Door Strike:
- Mortise
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Baldwin 6571003ENTR – Frequently Asked Questions
1) Does the Baldwin Estates 6571 Concord entry trim include the lock, or do I need to order a mortise lock body separately?
The Concord 6571 is decorative mortise trim, not a complete lock. A full mortise opening takes several components and this handle and escutcheon set is one of them; you still need the mortise lock body, cylinder and strike specified alongside it. Plan the door prep around the mortise case, not around a bored lockset.
2) What door thickness does the Baldwin Concord 6571 mortise trim fit?
It is specified for 1-3/4 inch doors, the standard thickness for a residential entry door. Baldwin does offer thin and thick door kits to take the trim outside that range where the door condition calls for it.
3) Do I have to order the Baldwin Concord handleset trim by hand, left or right?
No handing to specify. The Concord 6571 trim is reversible, so the same part works on a left or right hand door. Handing is settled by the mortise lock body and its latch, not by this trim.
4) Can the Baldwin Concord 6571 be keyed to match my other Baldwin locks?
It uses Baldwin's C keyway, so it keys with other C keyway Baldwin cylinders. Ordering lets you choose keyed alike, so several openings run on one key, or keyed different if each door should have its own.
5) What is a good alternative to the Baldwin Estates 6571 Concord entry handleset for a door prepped for a tubular bored lock instead of a mortise lock?
The Baldwin Estates 6571 Concord is mortise trim - it uses a mortise strike and needs the full mortise lock case and custom door preparation behind it. For a door bored for a standard tubular handleset, the Sure-Loc Alta AT507 is a tubular handleset with an adjustable backset, and the Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is an F Series Grade 2 handleset for doors 1-3/8 to 1-3/4 inch thick. Both go into conventional bored prep rather than a mortise pocket.
6) I need a single cylinder entry handleset for a 1-3/4 inch door but not a mortise one - what else works?
The Baldwin Estates 6571 Concord is sized for 1-3/4 inch doors but requires mortise preparation. For the same door thickness without mortise work, the Kwikset 687AMD Amador single cylinder handleset is a Grade 3 entrance set for 1-3/4 inch doors, offered with SmartKey in the SMT version and with an SC1 keyway in the SMC version, and the Kwikset 687BW Belleview is the same Grade 3 entrance handleset in a different style. All three Kwikset 687 sets are exterior-only trim, so an interior knob or lever is ordered separately.
7) What should I use instead of the Baldwin Estates 6571 Concord if the front door needs a keypad or smart lock?
The Baldwin Estates 6571 Concord is key-operated single cylinder mortise trim on a C-keyway. For electronic access on an entry door, the Kwikset 815SCEHFL San Clemente handleset pairs a Halifax lever interior with a Contemporary SmartCode keypad electronic deadbolt for 1-3/4 inch doors, and Yale Real Living offers the BYRD226CBARX Assure Lock Wi-Fi and Bluetooth touchscreen deadbolt with Ridgefield handleset or the BYRD226NRRX standalone touchscreen version, both for 1-3/4 to 2-1/4 inch doors.
8) Is the Baldwin Concord entry handleset single cylinder or double cylinder?
Single cylinder as configured: key outside, thumbturn or interior knob inside. Baldwin also builds the Concord trim in double cylinder, full dummy and exterior only, plus individual escutcheons cut for cylinder, emergency release, knob or turn knob.
9) How much room does the Baldwin Concord 6571 handleset need on the door stile?
The handle plate measures 2-1/2 x 9-2/5 inches and the cylinder escutcheon 2-1/2 x 2-1/2 inches. Lay those out against your stile and any glass or sidelite before cutting the mortise pocket.
10) Can I use a lever instead of the knob on the interior side of the Baldwin Concord handleset?
Yes. The interior side accepts any Baldwin knob or lever you choose, and the interior escutcheon can be used to build passage, privacy, dummy or entry. As shown it carries the 5000 knob in entry function.
11) What other mortise handleset trims could I use instead of the Baldwin Concord?
For the same mortise door prep with a different look, Emtek's brass mortise entrance handlesets cover Memphis, Hamilton, Melrose and Manhattan designs, though those are listed in dummy function rather than keyed entry. If the door is going on a thicker slab, the Weslock 1411 Traditionale Colonial single cylinder handleset covers 1-3/4 to 2-1/4 inch doors.
12) For a rental or multi-family entry door, is there a graded handleset alternative to the Baldwin Estates 6571 Concord?
The Baldwin Estates 6571 Concord is a residential Estates Series set. Where a graded product is wanted, the Master Lock HDLB Series HDLBA0615/4D single cylinder deadbolt handleset is Grade 2 entrance function, and the Schlage Residential F60 Addison with Accent lever is a Grade 2 entrance handleset for 1-3/8 to 1-3/4 inch doors. Kwikset's 687AMD and 687BW handlesets are Grade 3 entrance sets for 1-3/4 inch doors.
13) Which handlesets look like the Baldwin Estates 6571 Concord entry trim but will not lock?
Several similar-looking handlesets are dummy function, meaning fixed trim with no latch or key. The Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan brass mortise entrance handlesets are all dummy, as are the Weslock 6695 Belmont with Impresa knob and the Weslock 2815 Hillcrest with New Heaven lever. The Schlage Residential JE285 Barcelona with Seville lever is a non-keyed entry function. The Baldwin Estates 6571 Concord is a keyed single cylinder entry set, so specify carefully if the door must lock.
14) Is there a thicker-door option than the Baldwin Estates 6571 Concord handleset?
The Baldwin Estates 6571 Concord is specified for 1-3/4 inch doors. For doors heavier than that, the Weslock 1411 Traditionale Colonial handleset with Eleganti knob is a single cylinder keyed entry set rated 1-3/4 to 2-1/4 inch. Weslock's 2810 Hillcrest with Hudson knob is another single cylinder option, covering 1-3/8 to 2 inch.
15) What handleset should I order if the backset on the existing door is unknown?
The Baldwin Estates 6571 Concord is mortise trim, so the door must be prepped to the mortise lock case rather than to a bored backset. If the opening is a standard bored door and the backset is uncertain, the Sure-Loc Aspen AN507 single cylinder keyed entry handleset, Madison MA507 keyed entry handleset, Coral CR507 and Alta AT507 all have an adjustable backset, which lets one part cover either common dimension.
16) What finishes does the Baldwin Concord 6571 come in?
Two: 003 Polished Brass PVD and 190 Satin Black. The PVD brass keeps its color without lacquer upkeep, so it is the one to pick when the rest of the entry is bright brass.
