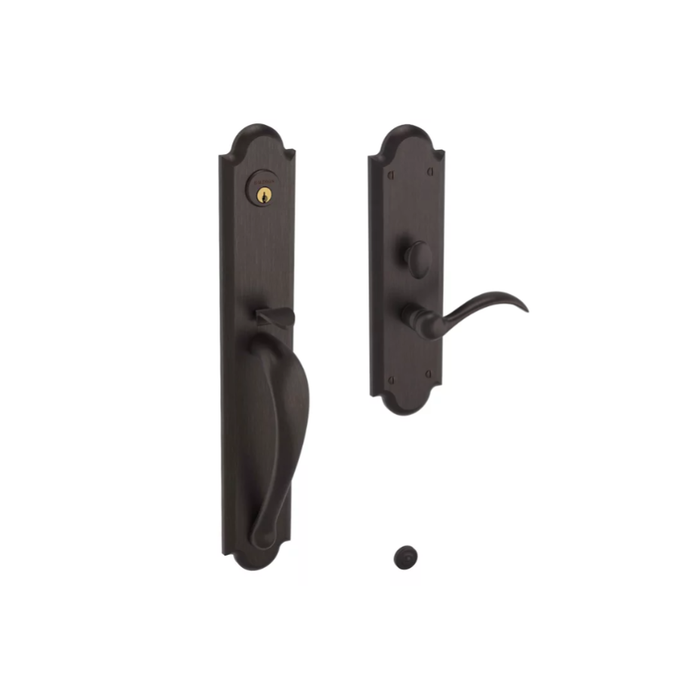

Baldwin M514 Boulder Lever Full Escutcheon Single Cylinder Entry Mortise Trim

Trim only. The M514 Boulder full escutcheon set is the decorative entry trim for a mortise application, and a full mortise opening needs several components beyond the trim to be complete. If you are specifying a new mortise opening, budget for the mortise lock case and cylinder separately from this escutcheon and lever.

Yes, handing is required. The Boulder full escutcheon entry trim is ordered left hand or right hand, so determine which way the door swings and which side the hinges are on before placing the order. There is no reversible or non-handed version.

The Boulder M514 is decorative mortise entry trim, so it only makes sense if the door is already prepped for a mortise case or you are specifying one from scratch. That is a custom door prep. For a standard commercial opening you are usually better off with a cylindrical lever lock in entrance function, such as the Hager 2525 Grade 2 entry lever or the Arrow HK11 entrance lock, both of which drop into a conventional bore.

The Baldwin M514 Boulder is mortise trim - it is decorative trim for a full mortise application, which needs custom door preparation and additional mortise components. On a standard cylindrical bore, use a cylindrical entry leverset instead. The Hager 2525 is a Grade 2 cylindrical entry lock with a lever handle covering 1-3/8 inch to 2 inch doors, and the Falcon B511CP6D is a Grade 2 cylindrical lever with entry/office function. For a residential-style keyed entry lever, the Master Lock BC Series RL01 is a Grade 3 return style keyed entry lockset.

The closest in concept is the Imperial USA ED-EL500HD, a heavy duty escutcheon lever trim in entry function from the ED-500 Series. Like the Baldwin M514 Boulder, it is escutcheon-style entry lever trim rather than a self-contained cylindrical lockset. The Baldwin M514 carries the Boulder design with the 5452V lever, a 4.09 inch lever grip and 3.4 inch projection, and is built for 1-3/4 inch through 2-1/4 inch doors.

The Baldwin M514 Boulder is decorative mortise entry trim carrying the Boulder design, aimed at architectural residential and light commercial openings rather than a graded cylindrical lockset. If your specification calls for a Grade 1 cylindrical lever, look at the Corbin Russwin CL3110 vandal resistant Grade 1 lever, which is fire rated and covers 1-3/4 inch to 2 inch doors, or the Falcon K101 Grade 1 heavy duty lever, fire rated for 1-3/8 inch to 2-1/4 inch doors. Both are non-keyed passage functions, so for keyed openings the Dexter C1000 Series Grade 1 classroom lever is the keyed Grade 1 option in that family.

No. The Baldwin M514 Boulder is built for doors 1-3/4 inch to 2-1/4 inch thick, so a 1-3/8 inch door falls below its range. Entry levers that reach down to 1-3/8 inch include the Hager 2525 Grade 2 cylindrical entry lock at 1-3/8 inch to 2 inch, the Cal-Royal AG00 entrance lever at 1-3/8 inch to 1-3/4 inch, and the Deltana 6201 Manchester Lever Entry at 1-3/8 inch to 2 inch.

C-keyway. If your building is already keyed to a C keyway system, the M514 can be brought onto the same key. For commercial openings in the same facility, the Cal-Royal AG00 entrance lever and the Arrow MK33-BD-CS are also C keyway products we carry, which helps if you are standardizing keying across mixed hardware.

Two: 190 Satin Black and 112 Venetian Bronze, each available left hand or right hand. Both are dark finishes, so if you are matching existing Baldwin trim in a nickel or brass tone on adjacent doors, the Boulder escutcheon in these two options will not blend.

Projection is 3.4 inches, with a lever grip length of 4.09 inches. Worth checking if the door sits close to a return wall, a cabinet, or a second door leaf in a tight vestibule, since that projection determines whether the lever clears when the door swings.

You can. Baldwin's full escutcheon program lets you substitute any interior knob or lever you prefer, and the interior escutcheon plate can be configured to make passage, privacy, dummy or entry sets. Individual escutcheons are offered cut for cylinder, cut for emergency release, cut for knob and cut for turn knob, so a single design can run through a house with different functions per door.

The Baldwin M514 Boulder covers the keyed entry opening in single cylinder entry function. For the non-keyed doors behind it, passage and privacy sets are the usual companions: the Callan Asheville is a Grade 3 passage leverset in satin nickel, the Kwikset 200BRNL Breton is a Grade 3 passage lever for 1-3/8 to 1-3/4 inch doors, and the matching Kwikset 300BRNL Breton is the Grade 3 privacy version for bed and bath. For a decorative dummy on a closet or a fixed leaf, the Emtek Classic Cortina lever dummy pair is a non-functioning option.

The Baldwin M514 Boulder is mortise trim and carries the install burden that goes with a mortise opening - custom door preparation and several separate components. For a bored door on a rental unit, a one-piece cylindrical entry lever is far simpler: the Cal-Royal AUS00 is a Grade 3 entrance/office lever with a solid brass forged body for 1-3/8 to 1-3/4 inch doors, the Callan Artino is a Grade 3 entrance leverset, and the Callan Bennett is a Grade 3 entrance leverset packaged with a deadbolt for units that need both.

The Baldwin M514 Boulder is a single cylinder entry set built around a C-keyway cylinder. If you would rather not issue keys, mechanical and electronic keypad levers are the alternative: the Lockey 2835 is a mechanical pushbutton keyless lever lock that is ADA compliant for doors 1-3/16 inch to 2 inch, the Lockey 1150 is a heavy duty mechanical keypad lever set for 1-1/8 inch to 2 inch doors, and the Delaney LP250 is a Grade 2 electronic keypad leverlock. The Emtek Classic Keypad Leverset is the decorative-styled keypad option.

The Baldwin M514 Boulder is entry function only, so storeroom and classroom openings need a different lock function. The Cal-Royal AG05 is a Grade 2 storeroom lever with a deadlocking latchbolt for 1-3/8 inch to 1-3/4 inch doors, the Hager 2580 is a Grade 2 storeroom lever for 1-3/8 inch to 2 inch, and the Cal-Royal AG03 is a classroom lever with a 6-pin Schlage C keyway and 2-3/4 inch backset - which keys into the same C keyway system the M514 uses.

Yes. Besides the standard entry function shown for the M514, the Boulder full escutcheon trim is offered in Full Dummy and Exterior Only configurations, so you can run the same elongated arch design across working and non-working leaves. If you want a lever dummy from another line instead, the Emtek Cortina dummy pair and the Callan Bentley Grade 2 dummy lever are alternatives we carry.

The 5452V lever, paired with the Boulder full escutcheon, an elongated arch plate with a clean modern profile. Grip length on that lever is 4.09 inches.
