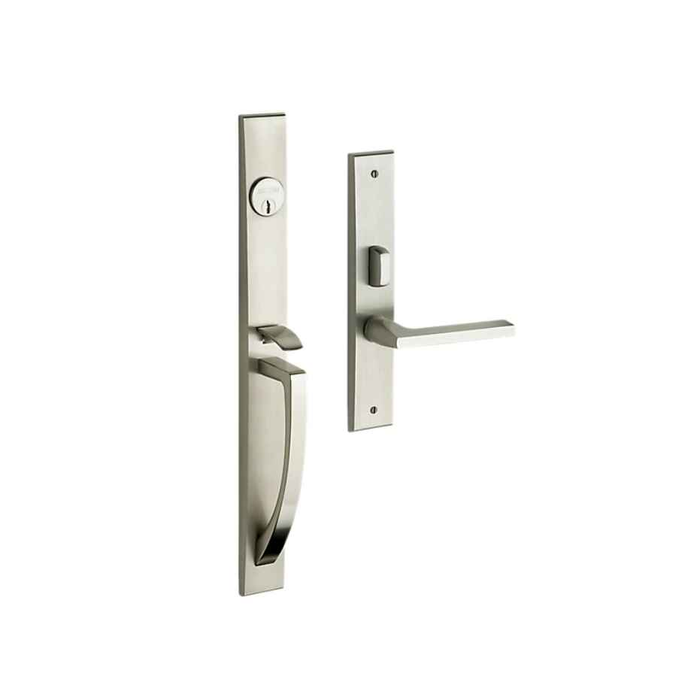

Baldwin MP013ACT4 Lakeshore Multi Point Trim Keyed Entry with Turn Knob Configuration 4
Specifications
all measurements in inches
-
Lock Type : Multipoint
-
Style : Contemporary
-
Lock Function : Entry
-
Lever Grip Length : 4.5
-
Center To Center : 3.625" x 7.875"
-
Projection : 2.9
-
Maximum Door Thickness : 1.75
-
Lever Handing : Reversible
Key Features
-
The Lakeshore Entrance Trim is a clean lined, contemporary design that is perfect for any home front door.
-
Shown in Standard Right Hand Entry Function, but also available in Left Hand Entry, Double Cylinder, Full Dummy, Exterior Only and Back to Back, as well as individual escutcheons Cut for Cylinder, Cut for Emergency Release, Cut for Knob and Cut for Turn Knob.
-
Customize by substituting any interior knob or lever of your choice or by utilizing the interior escutcheon plate to create passage, privacy, dummy or entry sets. Thin and thick door kits available to accommodate a wide range of door conditions and applications.
-
The mortise application is a unique door condition that requires custom door preparation, specification and installation. The full mortise specification requires multiple components, including this decorative trim.
Manufacturer Resources
Product Specs
- Collection:
- Estate Series
- Subcategory:
- Handlesets
- Product Group:
- Mechanical Locks
- Product Subgroup:
- Bored Locksets
- Product Type:
- Handlesets
- Commercial/Residential:
- Residential
- Lock Function:
- Entry
- Cylinder and Keyways:
- C-Keyway
- Keyed Function:
- Single Cylinder
- Product Function:
- Entrance
- Product Design:
- Lakeshore
- Door Strike:
- Mortise
- Product Category:
- Mechanical Locks
- Department:
- Door Hardware
Baldwin MP013150ACT4 – Frequently Asked Questions
1) Is the Baldwin Lakeshore MP013ACT4 a complete lock, or just the trim?
Trim only. The Lakeshore MP013ACT4 is the decorative multipoint entrance trim, keyed entry with a turn knob, in Configuration 4. The mortise application it goes on is a custom door condition that requires its own door prep, specification and installation, and the full mortise spec calls for multiple components on top of this trim. If you are buying for a job, budget for the multipoint lock body, strike prep and cylinder separately. A buyer who wants a one-box handleset should look at a tubular set like the Sure-Loc Alta instead.
2) What are the mounting hole centers on the Baldwin Lakeshore entrance trim?
Center to center measures 3.625 x 7.875 inches, and projection off the face of the door is 2.9 inches. Those two numbers are what decide whether the trim lands on your existing multipoint prep and whether the handle clears a storm door, sidelite return or a tight jamb reveal. Check the projection first on any opening with a screen or storm door in front of it.
3) Do I have to order the Baldwin Lakeshore trim handed?
No. The Lakeshore lever is reversible, so one part covers left and right hand openings. Baldwin does list the Lakeshore in dedicated Left Hand Entry and Right Hand Entry versions along with Double Cylinder, Full Dummy, Exterior Only and Back to Back, so the family is handed at the configuration level even though the grip itself reverses. Confirm which configuration you are ordering matches the swing on your drawing.
4) Can I key the Baldwin Lakeshore multipoint entry into an existing Baldwin master key system?
It runs the Baldwin C keyway and is a single cylinder function, meaning key outside, turn knob inside. If the rest of the doors in the house or building are already on Baldwin C keyway cylinders, a locksmith can key this alike or into the same system with no cylinder swap. If your existing hardware is on a Schlage or Kwikset keyway, this will not key alike to it.
5) Will the Baldwin Lakeshore multipoint trim drop into a standard bored handleset prep?
No. It takes a mortise strike and a full mortise prep, not the two bored holes a standard tubular handleset uses. Replacing a tubular set with this means re-prepping the door edge. If you are working an existing bored door and do not want to cut it, a tubular option with an adjustable backset like the Sure-Loc Madison or Sure-Loc Coral fits the prep you already have.
6) What is a comparable multipoint or mortise handleset trim if the Baldwin Lakeshore MP013ACT4 is not the right look for the door?
The Emtek 3002 Memphis, 3004 Hamilton, 3005 Melrose and 3006 Manhattan are all brass mortise entrance handlesets, so they address the same mortise-prepped door condition in four different escutcheon styles. One difference to plan around: those four Emtek sets are dummy function, while the Baldwin MP013ACT4 Lakeshore is a single cylinder keyed entry trim. If the opening needs to lock, the Emtek dummy sets are not a straight swap; they suit the inactive leaf of a pair where the Lakeshore look is wanted without a working cylinder.
7) The door is prepped for a standard tubular bore, not a mortise. What keyed entry handleset works there instead of the Baldwin Lakeshore MP013ACT4?
The Baldwin MP013ACT4 Lakeshore is trim for a mortise strike condition, which is a custom door preparation. For a conventionally bored door, the Schlage Residential F60 Addison single cylinder keyed entry handleset with Accent lever is Grade 2 and fits doors 1-3/8 inch to 1-3/4 inch, and the Sure-Loc Alta AT507 is a tubular handleset with an adjustable backset. Both are keyed entry sets that go into standard prep rather than requiring a mortise pocket cut into the door edge.
8) Which keyed entry handleset should be used on a door thicker than 1-3/4 inch?
The Baldwin MP013ACT4 Lakeshore trim carries a maximum door thickness of 1.75 inches. For a heavier door, the Weslock 1411 Traditionale Colonial handleset with Eleganti knob is a single cylinder set rated for 1-3/4 inch to 2-1/4 inch doors, and the Deltana 810871 Montego handleset covers 1-3/8 inch to 2 inch. The Weslock 2810 Hillcrest single cylinder handleset with Hudson knob also runs 1-3/8 inch to 2 inch.
9) What looks like a substitute for a single cylinder keyed Baldwin Lakeshore MP013ACT4 but will not lock the door?
Several handlesets in the same visual class are non-keyed and will not secure an opening the way a single cylinder keyed set does. The Schlage Residential JE285 Barcelona handleset with Seville lever is a non-keyed entry function, Grade 2, for 1-3/8 inch to 1-3/4 inch doors. The Weslock 6695 Belmont with Impresa knob and the Weslock 2815 Hillcrest with New Heaven lever are both dummy handlesets for 1-3/8 inch to 2 inch doors. The Schlage JI18/19 with Torino lever is a passage lock paired with a separate keyed deadbolt, so the key works the deadbolt rather than the handleset.
10) Can I use a different interior lever or knob with the Baldwin Lakeshore handleset trim?
Yes, and that is part of how the Lakeshore is meant to be ordered. You can substitute any Baldwin interior knob or lever you like, and the interior escutcheon plate can be used to build a passage, privacy, dummy or entry set rather than only keyed entry. Baldwin also sells the escutcheons individually, cut for cylinder, cut for emergency release, cut for knob and cut for turn knob, if you are matching an existing opening rather than doing a whole new set.
11) What finishes does the Baldwin Lakeshore MP013ACT4 come in?
Five: 031 Unlacquered Brass, 044 Satin Brass, 102 Oil Rubbed Bronze, 150 Satin Nickel and 190 Satin Black. Unlacquered brass is the one to watch on a fleet job, it patinas with handling and will not stay matched to a lacquered or plated brass on the next door over. Satin nickel and satin black are the safest picks if you are standardizing across a run of entries.
12) Is the Baldwin Lakeshore trim a commercial handleset or residential?
Residential. The Lakeshore is part of Baldwin's Estate Series and is built as a contemporary front door trim for a home. For a commercial entry where a facility spec calls for a graded lockset, look at a Grade 2 handleset such as the Schlage Residential F60 Addison or the Master Lock HDLB Series single cylinder deadbolt handleset instead.
13) What is the difference between a multipoint entrance trim and a regular single cylinder handleset?
A multipoint trim like the Lakeshore operates a lock body that throws at several points up and down the door edge, which is why it needs a mortise strike and custom prep. A conventional handleset throws one latch and one deadbolt into a single strike location. Multipoint is what you use on a tall, heavy or glass front door where you want the slab pulled tight against the weatherstrip at top and bottom. If the door is a standard swing entry and you only need latch plus deadbolt, a single cylinder set like the Weslock 2810 Hillcrest or the Pamex FS7P31 Lexington is a much simpler install.
14) I need the exterior escutcheon only for a Baldwin Lakeshore door, not the full set. Is that available?
Yes. Beyond the full keyed entry, the Lakeshore is offered as Exterior Only and Back to Back, and the escutcheons can be bought on their own cut for cylinder, cut for emergency release, cut for knob or cut for turn knob. That is the route when you are replacing a damaged plate on an existing Baldwin multipoint door and the lock body is fine. Match the finish code to what is on the other side of the door.
15) Is there a simpler keyed entry handleset than the Baldwin Lakeshore MP013ACT4 for a rental unit front door?
Yes. The Kwikset 687AMD Amador and 687BW Belleview single cylinder keyed handlesets are Grade 3 entrance sets for 1-3/4 inch doors, supplied as exterior trim only, with the 687AMD available in a SmartKey version (KWI-687AMD-S) and an SC1 keyway SmartKey version (KWI-687AMD-SMC). The Master Lock HDLBA0615/4D is a Grade 2 single cylinder deadbolt handleset. These are conventional keyed sets, where the Baldwin MP013ACT4 Lakeshore is decorative trim for a multipoint and mortise application that requires custom door preparation and additional components to complete the specification.
16) What handleset options exist if the owner wants keypad or app entry instead of a keyed Baldwin Lakeshore MP013ACT4?
The Baldwin MP013ACT4 Lakeshore is a keyed single cylinder trim on a C-keyway. For electronic access, the Kwikset 815SCEHFL-CP913CNT San Clemente handleset pairs Halifax lever interior trim with a contemporary SmartCode keypad electronic deadbolt, SmartKey, RCAL latch and RCS strike, for 1-3/4 inch doors. The Yale Real Living Assure line pairs a Ridgefield handleset with a touchscreen deadbolt in several connectivity forms: BYRD226NRRX standalone, BYRD226CBARX Wi-Fi and Bluetooth, and BYRD256 CBARX key-free Wi-Fi with a Ridgefield passage handleset, all for 1-3/4 inch to 2-1/4 inch doors.
17) Which solid brass entry handlesets compare with the Baldwin Lakeshore MP013ACT4 for a residential front door?
Deltana offers three solid brass entry handlesets in different series: the 803871B Hanover, the 815871 St. Ann and the 825871 Kingston, all entry function. Against those, the Baldwin MP013ACT4 Lakeshore is an Estate Series residential entrance trim in a clean lined contemporary design, offered in unlacquered brass, satin brass, oil rubbed bronze, satin nickel and satin black.
18) The backset on the existing door is not standard. Which handleset can be adjusted to fit?
Sure-Loc builds adjustable backset into several handlesets: the Aspen AN507 single cylinder keyed entry handleset, the Madison MA507 keyed entry handleset, the Coral CR507, and the tubular Alta AT507. That adjustment lets one set cover more than one bore location, which is useful when the existing prep does not match the specification.
19) Is there a single cylinder handleset that covers both a 1-3/8 inch and a 1-3/4 inch door in one part number?
The Pamex FS7P31 Lexington single cylinder handleset in satin nickel is an entry function set that fits 1-3/8 inch to 1-3/4 inch doors, and the Schlage Residential F60 Addison keyed entry handleset with Accent lever covers the same 1-3/8 inch to 1-3/4 inch range at Grade 2. Either one spans both thicknesses without a separate kit, which helps when a building has a mix of door slabs.
20) Which entry handlesets carry a stated ANSI grade for a specification that requires one?
Among comparable residential entry handlesets, the Master Lock HDLBA0615/4D single cylinder deadbolt handleset is Grade 2, the Schlage Residential F60 Addison with Accent lever is Grade 2, the Schlage JE285 Barcelona with Seville lever is Grade 2, and the Kwikset 687AMD Amador and 687BW Belleview single cylinder handlesets are Grade 3. Those give a specifier a graded option when the drawing calls out a grade rather than a design.
21) How long is the grip on the Baldwin Lakeshore handleset?
Lever grip length is 4.5 inches, with the trim spanning 3.625 x 7.875 inches center to center. That is a compact, clean lined contemporary plate rather than a long traditional escutcheon, so if you are matching it against an existing tall handleset footprint on a replacement job, expect the old plate outline to show unless the door is being refinished.
