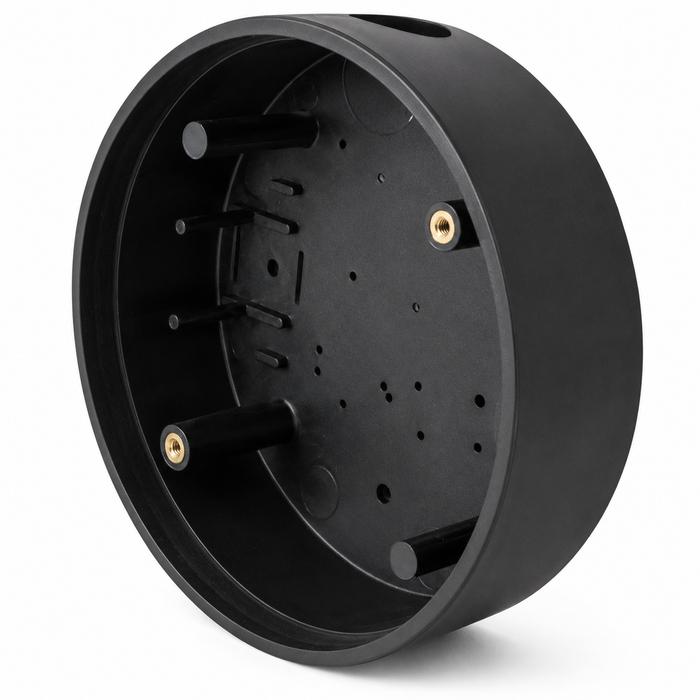

BEA 10BOX6RNDSM 6 in. round surface mount box, black, interior view showing knockout pattern and brass mounting hardware

BEA 10BOX6RNDSM 6 Inch Round Surface Mount Box for Push Plates and Touchless Actuators

(No reviews yet) Write a Review

Model: BEA-10BOX6RNDSM

In Stock (leaves warehouse same day if ordered before 3pm ET)

$55.93
$37.63
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10BOX6RNDSM 6-Inch Round Surface Mount Box

The BEA 10BOX6RNDSM is a 6-inch round surface mount back box for BEA 6-inch round push plates and MS31/MS41 round touchless actuators. It mounts directly to an existing wall surface without recessing, giving installers a clean, finished appearance for electronic access control hardware in commercial openings.

Compatibility

  • BEA 6-inch round push plates (PBS6 series)
  • BEA MS31 and MS41 round touchless actuators
  • Compatible push plate models include PBR, PBR45, PBS, PBS45, PBS6, PBJ, PBO24, PBDGP1, and Magic Switch series

Construction

  • Material: Steel / ABS Plastic
  • Commercial-grade build for high-traffic entry points

Installation

Surface mount configuration. Follow the parent device installation instructions for wiring and alignment. Confirm compatibility with the specific push plate or actuator model before ordering.

Typical Applications

  • Commercial building entry and interior access points
  • Healthcare facility automatic door controls
  • Educational and institutional security systems
  • Multi-tenant residential and hospitality access control

Product Specs

Product Type:
Mounting Box
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
No
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10BOX6RNDSM – Frequently Asked Questions

1) What does the BEA 10BOX6RNDSM mounting box actually do, and is the push plate included?
The 10BOX6RNDSM is an empty enclosure, not an actuator. It's the box you mount to the wall so a 6 inch round push plate or an MS31/MS41 round touchless actuator has something to sit in and terminate wiring behind. The plate or actuator is a separate order. Buy the box when you're mounting on a finished surface and don't want to cut in a recessed back box.
2) I have a concrete or tile wall and can't cut in a back box for a touchless actuator. What do I use?
Surface mount is the answer, and that's what this box is. The 10BOX6RNDSM mounts on the existing wall surface with no recessing or cutting in, so it works on block, concrete, tile, and glass-adjacent walls where a recessed enclosure isn't practical. Run the wiring to it in surface raceway and land the 6 inch round plate or MS31/MS41 actuator on the box.
3) My building has square push plates on some doors and round ones on others. Do I need a different BEA box for each?
Yes, the box has to match the plate footprint. BEA push plate boxes come in single gang 2.75 x 4.5 in, double gang 4.5 x 4.5 in, 4.5 in square, 4.75 in square, 6 in round, 4.5 in round, surface jamb 1.5 x 4.75 in, and hardwired jamb 1.75 x 4.5 in. The 10BOX6RNDSM is the 6 in round one. If you're standardizing a fleet of openings, pick the plate size first, then order the matching box for each.
4) Which BEA push plate series work with these mounting boxes?
BEA's push plate boxes are compatible with the PBR, PBR45, PBS, PBS45, PBS6, PBJ, PBO24, PBDGP1 and Magic Switch series push plates. Match the box to the plate's size and shape, the 10BOX6RNDSM is the 6 inch round enclosure in that family.
5) Can I mount a narrow BEA actuator on a door jamb with this box?
No, the 10BOX6RNDSM is a 6 inch round box and won't fit a jamb. For jamb-mounted actuators BEA does a surface jamb box at 1.5 x 4.75 in and a hardwired jamb box at 1.75 x 4.5 in. Order one of those for the frame and keep the 6 in round for wall-mounted plates.
6) What is the BEA push plate box made of?
Steel and ABS plastic are the construction materials across the BEA push plate box range, including the 6 inch round surface mount version. That matters on a high-traffic opening: the box is the part taking the abuse when a cart or a wheelchair footrest catches the actuator.
7) Is the BEA 10BOX6RNDSM rated for commercial use or is it a residential part?
Commercial. It's specified for commercial access control installs, healthcare entries, schools, retail, industrial and government buildings, and multi-tenant residential entrances, the openings where an automatic operator and a touchless actuator are already in play.
