Professional Industrial Presence Detection Solution

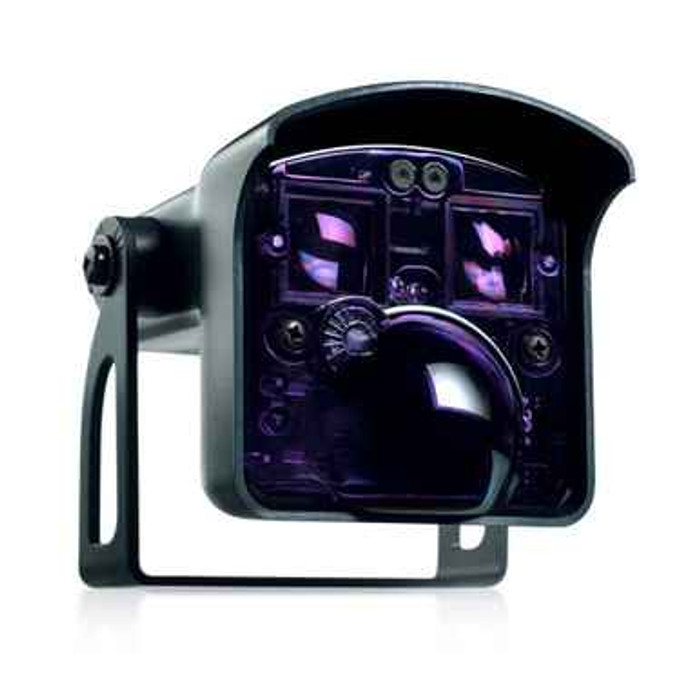

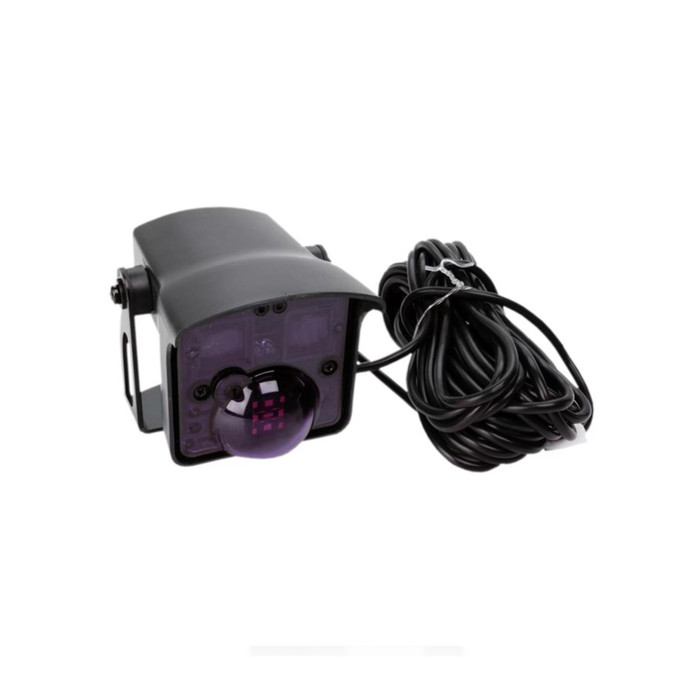

The BEA IS40P is an infrared presence sensor engineered for demanding industrial applications, utilizing 40 active infrared spots for reliable presence detection. Designed for mounting heights from 8 feet to 16 feet, this sensor accommodates most industrial installations with its rugged IP65 rated enclosure that withstands harsh environments including dust, rain, and hose-directed water exposure.

Professional Features & Benefits

• Mounting Height Flexibility: 8 to 16 foot mounting range accommodates various industrial facility configurations and application requirements.
• Advanced Detection Technology: 40 active infrared spots provide comprehensive presence detection coverage for reliable operation in industrial environments.
• Rugged Environmental Protection: IP65 rated enclosure prevents damage from dust, rain, and hose-directed water for dependable outdoor and industrial use.
• Virtual Loop Functionality: Integrated virtual loop capability simplifies installation and integration with automatic door systems and access control equipment.
• Industrial Application Versatility: Ideal for automatic industrial doors, vehicle gates and barriers, loading docks, and other presence detection applications.
• Heavy-Duty Construction: Engineered specifically for industrial environments where standard sensors may fail due to harsh operating conditions.

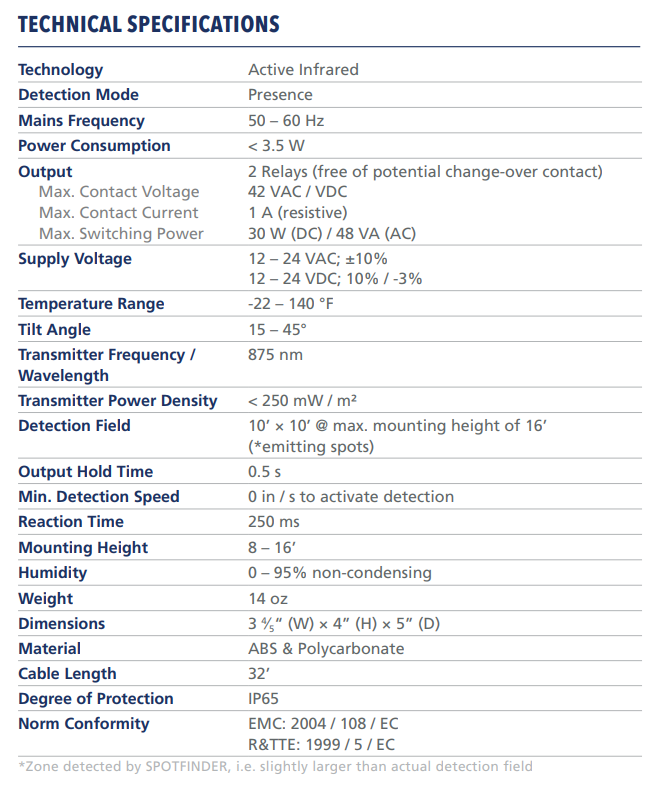

Technical Specifications

• Technology: Active Infrared
• Detection Mode: Presence
• Mains Frequency: 50 - 60 Hz
• Power Consumption: < 3.5 W
• Relay Output: 2 Relays (free of potential change-over contact)
• Max. Contact Voltage: 42 VAC / VDC
• Max. Contact Current: 1 A (resistive)
• Max. Switching Power: 30 W (DC) / 48 VA (AC)
• Supply Voltage: 12 - 24 VAC +/-10% | 12 - 24 VDC 10% / -3%
• Temperature Range: -22 deg. F - 140 deg. F
• Tilt Angle: 15 deg. - 45 deg.
• LED Signal: Red (Presence Relay); Green (Indicator)
• Transmitter Frequency / Wavelength: 875 nm
• Transmitter Power Density: < 250 mW / m2
• Detection Zone (W x D): 10 ft x 10 ft @ max. mounting height of 16 ft
• Output Hold Time: 0.5 s
• Min. Detection Speed: 0 in / s to activate detection
• Reaction Time: 250 ms
• Mounting Height: 96 in - 192 in (8 ft - 16 ft)
• Humidity: 0 - 95% non-condensing
• Weight: 14 oz
• Dimensions: 3.8 in (W) x 4 in (H) x 5 in (D)
• Material: ABS & Polycarbonate

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit at the specified height between 8 and 16 feet ensuring adequate clearance for detection coverage, wiring access, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the industrial application environment.
5. Configure operational settings including virtual loop functionality and detection parameters per application requirements.
6. Restore power and test all functions including normal presence detection, virtual loop operation, and integration with connected door systems or access control equipment.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

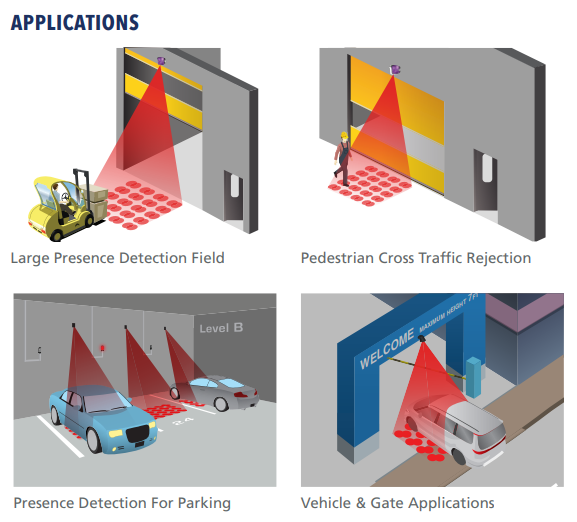

Professional Applications

• Automatic Industrial Door Systems
• Vehicle Gate and Barrier Control
• Loading Dock Safety Systems
• Warehouse and Distribution Centers
• Manufacturing Facility Access Points
• Industrial Equipment Safety Zones
• Commercial Vehicle Service Areas

Why Choose BEA Quality?

BEA industrial presence sensors deliver professional-grade reliability with IP65 rated construction designed to withstand harsh industrial environments including dust, rain, and hose-directed water exposure. The IS40P's 40 active infrared detection spots and virtual loop functionality provide dependable performance for demanding commercial applications where reliable presence detection is essential.
