BEA 10BODYGUARDT Bodyguard-T Overhead Presence Sensor for Automatic Doors with Active Infrared Technology

BEA 10BODYGUARDT Bodyguard-T Overhead Presence Sensor for Automatic Doors with Active Infrared Technology

Advanced Threshold Protection for Automatic Door Systems

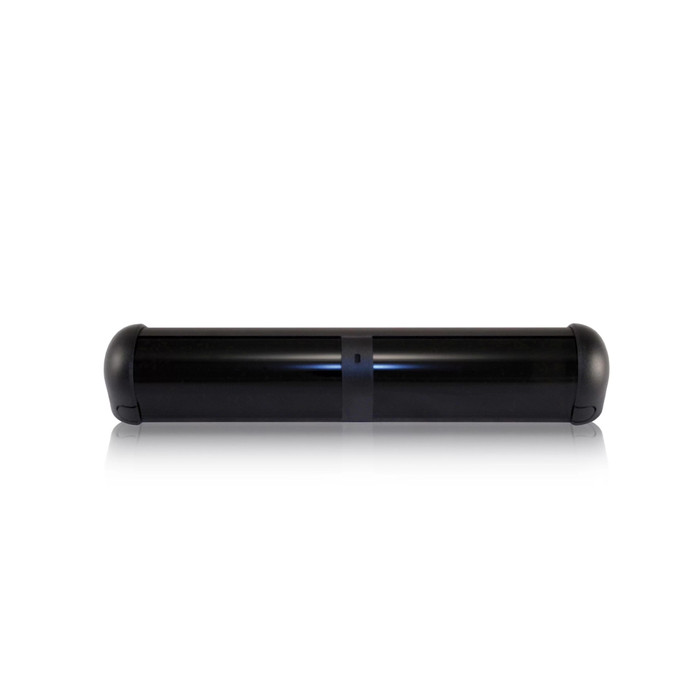

The BEA 10BODYGUARDT Bodyguard-T is an overhead presence sensor specifically designed for pedestrian automatic doors using active infrared technology. This professional-grade sensor provides critical threshold protection during door operation, preventing closed doors from opening and open doors from closing when a person is detected in the zone. The sensor features easy installation with remote control adjustability for optimal performance in commercial automatic door applications.

Professional Features & Benefits

• Active Infrared Technology: Advanced detection system provides reliable presence sensing for accurate door control and safety protection.
• Dual Protection Function: Prevents closed doors from opening and open doors from closing when occupants are detected in the threshold zone.
• Overhead Mounting Design: Ceiling-mounted configuration provides comprehensive detection coverage without interfering with pedestrian traffic flow.
• Remote Control Adjustment: Easy field adjustments using BEA remote control for precise detection zone configuration and sensitivity settings.
• Automatic Door Integration: Specifically engineered for seamless integration with pedestrian automatic door systems and operators.
• Commercial-Grade Construction: Professional electronic components designed for reliable operation in high-traffic commercial environments.
• Threshold Protection: Specialized detection zone coverage ensures safe door operation during open and close cycles.

Technical Specifications

• Technology: Active Infrared
• Detection Mode: Presence
• Installation Height: Variable 108 in max (9 ft); recommended 78 in - 96 in (6.5 ft - 8 ft)
• Mounting Angles: Bodyguard Only: 5 deg., 10 deg. (factory default: 5 deg.) | With Bodymount: 0 deg., 5 deg., 10 deg.
• Power Supply: 12 - 24 VAC / DC +/-10%
• Mains Frequency: 50 - 60 Hz
• Output Max. Contact Current: 1 A
• Max. Contact Voltage: 60 VDC / 125 VAC
• Max Power Supply: 30 W (DC), 60 VA (AC)
• Relay Hold Time: 0.5 - 9 s
• Operating Temperature: -22 deg. F - 140 deg. F
• Immunity: Immune to electrical and radio frequency interference
• Cable: 48 in (4 ft) - 6-conductor cable
• Weight: 1 lb. 11 oz.
• Dimensions: 11.8 in (W) x 1.9 in (H) x 1.9 in (D)
• Material: Aluminum & ABS plastic
• Housing: Black anodized aluminum

Installation & Operation

1. Verify electrical requirements match available power supply and confirm compatibility with existing automatic door operator system.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the sensor unit in the overhead position ensuring adequate clearance for detection zone coverage and future service access.
4. Route and connect wiring according to manufacturer wiring diagrams using appropriate wire gauge and connectors for the automatic door application.
5. Configure detection zone settings and sensitivity using the BEA remote control per application requirements and traffic patterns.
6. Restore power and test all functions including presence detection, door control integration, and threshold protection operation.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Retail Store Entrance Safety
• Healthcare Facility Pedestrian Access
• Educational Institution Door Control
• Office Building Entrance Protection
• Multi-Tenant Residential Automatic Doors
• Government and Municipal Building Access

Why Choose BEA Quality?

BEA presence sensor products deliver professional-grade reliability with active infrared technology engineered for demanding commercial automatic door applications. The Bodyguard-T series provides specialized threshold protection with remote control adjustability for precise field configuration. Designed for dependable performance where pedestrian safety and automatic door control integration are essential.
