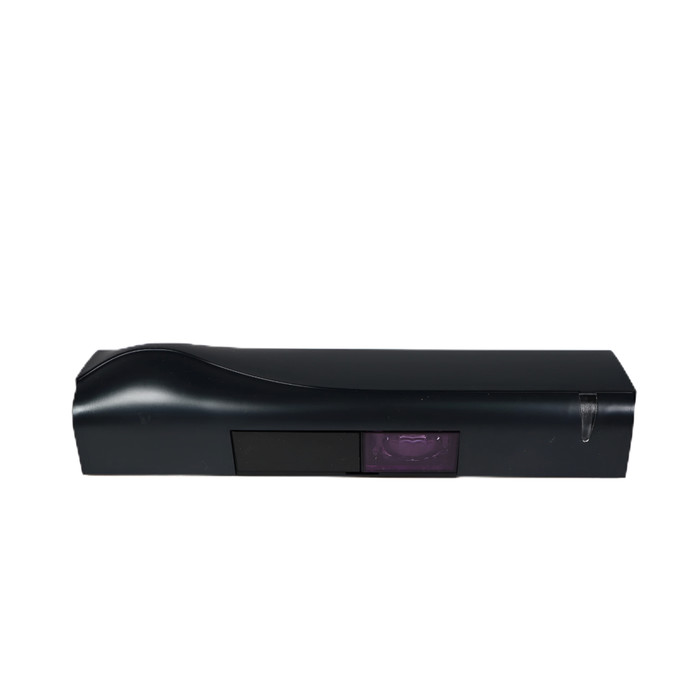

BEA IXIO-ST Active Infrared Presence Sensor for Automatic Sliding Doors

BEA IXIO-ST Active Infrared Presence Sensor for Automatic Sliding Doors

Advanced Presence Detection for Commercial Sliding Door Applications

The BEA IXIO-ST is a state-of-the-art active infrared presence sensor engineered for automatic sliding doors in commercial environments. This versatile sensor provides precise infrared curtains with visible alignment beams for both clear door openings and side-lite protection. The IXIO-ST features an on-board LCD screen that streamlines installation and setup processes, while meeting ANSI compliance requirements and earning comprehensive certifications including FCC and IP54 ratings.

Professional Features & Benefits

• Active Infrared Technology: Precise infrared curtains provide reliable presence detection for enhanced safety and operational efficiency in automatic sliding door applications.

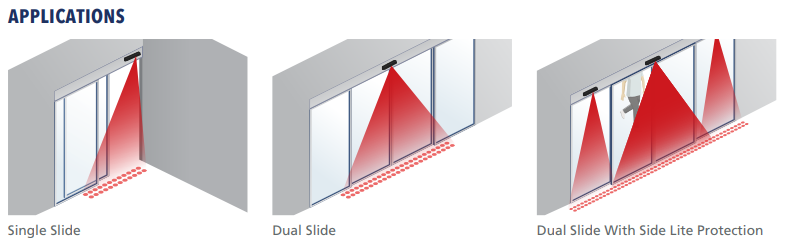

• Dual Application Capability: Designed for both clear door openings and side-lite protection, offering versatile installation options for various commercial configurations.
• Visible Alignment Beams: Integrated alignment beams make the sensor extremely safe and easy to adjust during installation and maintenance procedures.
• On-Board LCD Display: Built-in LCD screen streamlines installation and setup processes, reducing configuration time and improving accuracy.
• ANSI Compliance Ready: Can be adjusted into an ANSI compliant solution for applications requiring specific safety standards and regulatory compliance.
• Comprehensive Certifications: FCC certified with IP54 rating for reliable performance in demanding commercial environments.
• Professional-Grade Construction: State-of-the-art sensor design engineered for consistent performance in high-traffic automatic door applications.

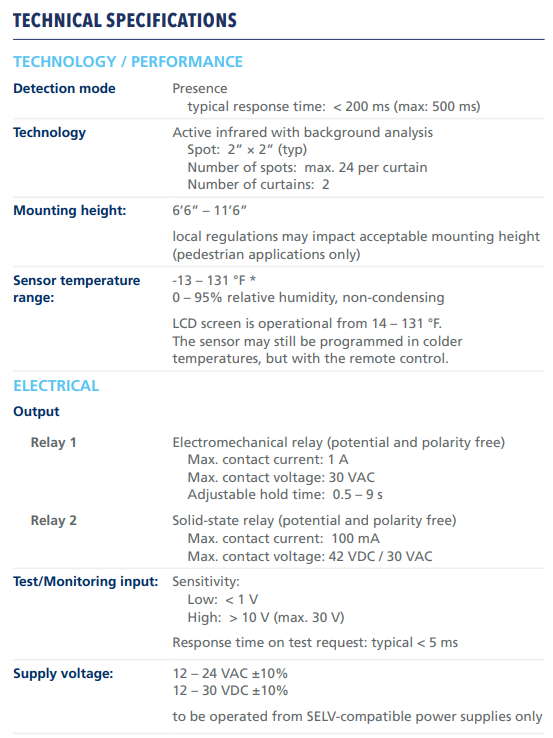

Technical Specifications

• Technology: Active Infrared
• Detection Mode: Presence
• Spot Size: 2 in x 2 in
• Max. Number of Spots: 24 per curtain
• Max. Number of Curtains: 2
• Output (Electro-mechanical relay): Potential and polarity free | Max. Contact Current: 1 A | Max. Contact Voltage: 30 VDC | Hold Time: 0.5 s - 9 s
• Output (Solid-state relay): Potential and polarity free | Max. Contact Current: 400 mA | Max. Contact Voltage: 42 VDC | Hold Time: 0.3 s - 1 s
• Test Input: Sensitivity: Low < 1 V; High > 10 V (max. 30 V) | Response time: typical < 5 ms

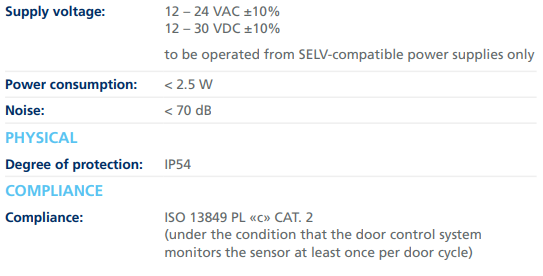

• Supply Voltage: 12 - 24 VAC +/-10%; 12 - 30 VDC +/-10% (SELV compatible power supplies only)
• Power Consumption: < 2.5 W
• Mounting Height: 78 in - 138 in (6.5 ft - 11.5 ft)
• Temperature Range: -13 deg. F - 131 deg. F; 0 - 95% relative humidity, non-condensing
• Degree of Protection: IP54
• Cable Length: 120 in (10 ft) (Pedestrian) | 360 in (30 ft) (Industrial)
• Applicable Directives: R&TTE 1999/5/EC; EMC 2004/108/EC; MD 2006/42/EC; RoHS 2002/95/EC

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings using the on-board LCD screen per application requirements and ANSI compliance needs.
6. Restore power and test all functions including normal operation, presence detection accuracy, and integration with automatic sliding door systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Retail Store Entrance Solutions
• Healthcare Facility Access Points
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Multi-Tenant Residential Properties
• Government and Municipal Buildings

Why Choose BEA Quality?

BEA presence sensors deliver professional-grade reliability with active infrared technology and comprehensive certifications including FCC and IP54 ratings. The IXIO-ST’s state-of-the-art design with on-board LCD display and ANSI compliance capability ensures dependable performance in demanding commercial automatic door applications. Engineered for versatility and ease of installation, BEA sensors provide the precision and safety required for professional sliding door systems.
