BEA 10LO21P Universal Lockout Module for Parallax Packages with BODYGUARD Integration

BEA 10LO21P Universal Lockout Module for Parallax Packages with BODYGUARD Integration

Professional Swing Door Safety Control Module

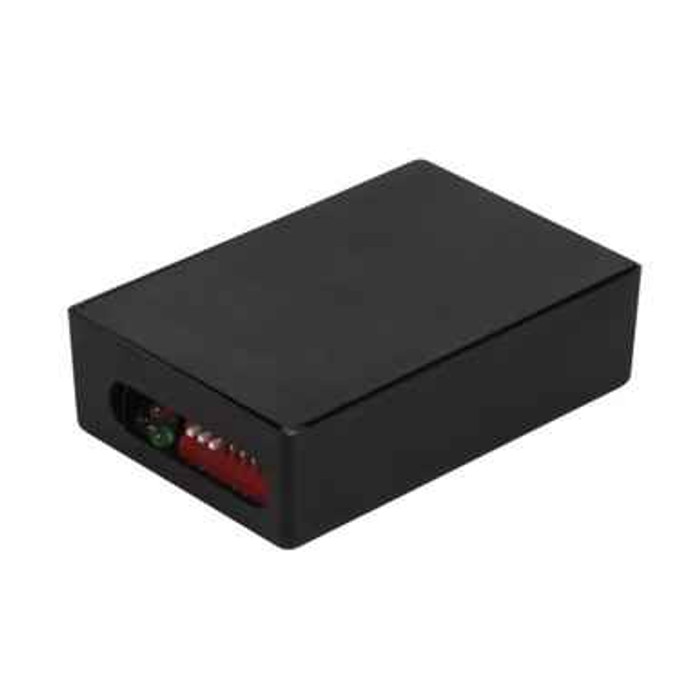

The BEA 10LO21P Universal Lockout Module is specifically designed for swing door applications utilizing BEA’s BODYGUARD system with Parallax packages. This advanced lockout module interprets door open or door closed positions based on motor voltage input, providing critical safety control for automated door systems. The LO21P transmits motor voltage information to the BODYGUARD via data lines, ensuring precise door position monitoring and safety override capabilities.

Professional Features & Benefits

• BODYGUARD System Integration: Seamlessly interfaces with BEA’s BODYGUARD safety system via data lines for comprehensive door monitoring and control.
• Motor Voltage Position Detection: Interprets door open or door closed positions based on motor voltage input for accurate door status monitoring.
• Safety Beam Override Capability: Provides optional safety beam input to override inhibit signals during closing operations for enhanced safety protection.
• Automatic Safety Signal Activation: Cancels inhibit data when safety beam path is blocked during closing, initiating immediate safety signal to door control safety input.
• Parallax Package Compatibility: Specifically engineered for use with BEA Parallax packages for optimized performance and integration.
• Swing Door Application Focus: Designed specifically for swing door applications where precise position monitoring and safety control are essential.
• Professional Installation Support: Includes comprehensive user guide documentation for proper installation and configuration.

Technical Specifications

• Power Supply: 12 - 24 VAC / 15 - 24 VDC
• Operating Frequency: 4 MHz (Microprocessor)
• Power Consumption: 10 mA at rest; 50 mA max.
• Output: 2x SPST Relays
• Max. Voltage - Relay Contact: 60 VDC, 120 VAC
• Max. Current - Relay Contacts: 2 A DC; 0.5 A AC

Installation & Operation

1. Verify electrical requirements match available power supply and confirm compatibility with existing BODYGUARD system before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the LO21P module in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Connect data lines to BODYGUARD system and motor voltage input lines per specifications.
5. Configure operational settings including safety beam input connections and inhibit signal parameters per application requirements.
6. Restore power and test all functions including door position detection, safety beam override operation, and integration with BODYGUARD system.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automated Door Systems
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Retail Establishment Entry Systems
• Industrial Facility Monitoring
• Emergency Exit Compliance Applications
• Multi-Tenant Residential Properties

Why Choose BEA Quality?

BEA lockout modules deliver professional-grade reliability with specialized BODYGUARD system integration designed for demanding commercial swing door applications. The LO21P provides precise motor voltage-based position detection with safety beam override capabilities for comprehensive door safety control. Engineered for commercial applications where dependable automated door safety performance is essential.
