Advanced Laser-Based Safety System for Automatic Swing Doors

The BEA 10LZRFLATSCAN-LERB LZR-FLATSCAN SW is a laser-based Time-of-Flight presence sensor designed for stand-alone safety applications on automatic pedestrian swing doors and low energy door reactivation. This advanced system generates 170 detection points across a single curtain to cover the entire face of a single door leaf including the hinge area, with specialized Finger Detection Technology utilizing 100 detection points within the hinge area for enhanced hand and finger protection during door operation.

Professional Features & Benefits

• Comprehensive Detection Coverage: 170 detection points across a single curtain provide complete door face coverage including critical hinge areas for maximum safety protection.
• Finger Detection Technology: Specialized 100-point detection system within the hinge area protects hands and fingers during door motion for enhanced pedestrian safety.
• Laser Time-of-Flight Technology: Advanced laser-based sensing provides precise, reliable detection with superior performance in various environmental conditions.
• Dual Application Capability: Functions as both a stand-alone safety sensor for automatic swing doors and reactivation sensor for low energy door approach sides.
• ANSI 156.10 Compliance: Exceeds section 8.2.2.3 standard for detection area requirements and meets section 8.1.4 monitoring specifications for code compliance.
• Door-Mounted Design: Right door mount configuration provides flexible installation options for various door configurations and architectural requirements.
• Single Door Leaf Coverage: Optimized for complete protection of individual door leaves in swing door applications.

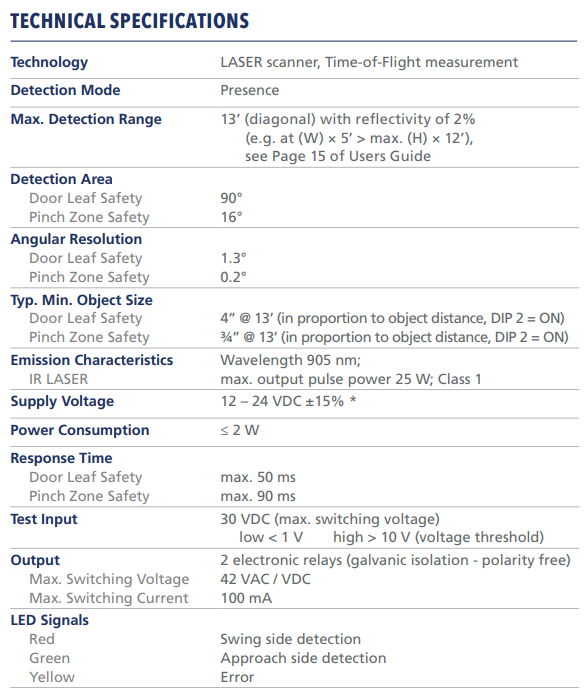

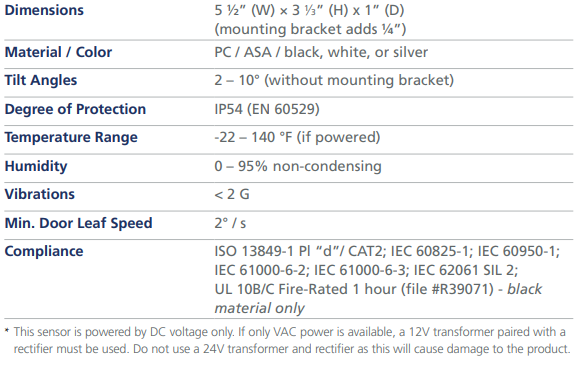

Technical Specifications

• Technology: LASER scanner, Time-of-Flight measurement
• Detection Mode: Presence
• Min. / Max. Door Width: 20 in - 48 in (per door leaf) (measured from leading edge to sensor LED)
• Mounting Height: 75 in - 98 in (6.25 ft - 8.2 ft) (measured from finished floor to sensor LED)
• Remission Factor: > 2%
• Angular Resolution: 2.56 deg.
• Test Body: 12 in (W) x 28 in (H) x 8 in (D) (per UL 325)
• Emission Characteristics (IR laser): Wavelength 905 nm; Maximum Output Pulse Power 35 W (Class 1)
• Supply Voltage: 12 - 30 VDC (15 W Class II)
• Power Consumption: < 15 W
• Response Time: Typ. 40 ms; Max. 80 ms
• Output Rating: 4 electro-mechanic relays (galvanic isolated, polarity free); All outputs Class 2 supply
• Input Rating: 2 optocouplers (galvanic isolated, polarity free)
• Test Input: 8 - 15 VDC
• Temperature Range: -13 deg. F - 121 deg. F (-25 deg. C - 55 deg. C)
• Degree of Protection: Hub: IP20 / NEMA 1 | Sensor: IP53 / NEMA 3
• Humidity: 0 - 95% Non-condensing
• Vibrations: < 2 G
• Material: PC / ASA
• Norm Conformance: EN 60825-1 Eye-safety class 1 IR laser (905 nm), UL325, UL6730

Installation & Operation

1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified right door location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including detection sensitivity and response parameters per application requirements.
6. Restore power and test all functions including normal operation, detection response, and integration with automatic door control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Entrance Safety
• Educational Institution Access Points
• Retail Store Entrance Protection
• Industrial Facility Pedestrian Safety
• Government Building Security Integration
• Multi-Tenant Residential Entry Systems

Why Choose BEA Quality?

BEA LZR-FLATSCAN SW presence sensors deliver professional-grade reliability with advanced laser Time-of-Flight technology and comprehensive 170-point detection coverage. The system exceeds ANSI 156.10 section 8.2.2.3 standards for detection area requirements while meeting section 8.1.4 monitoring specifications. Engineered for demanding commercial applications where dependable pedestrian safety and code compliance are essential.
