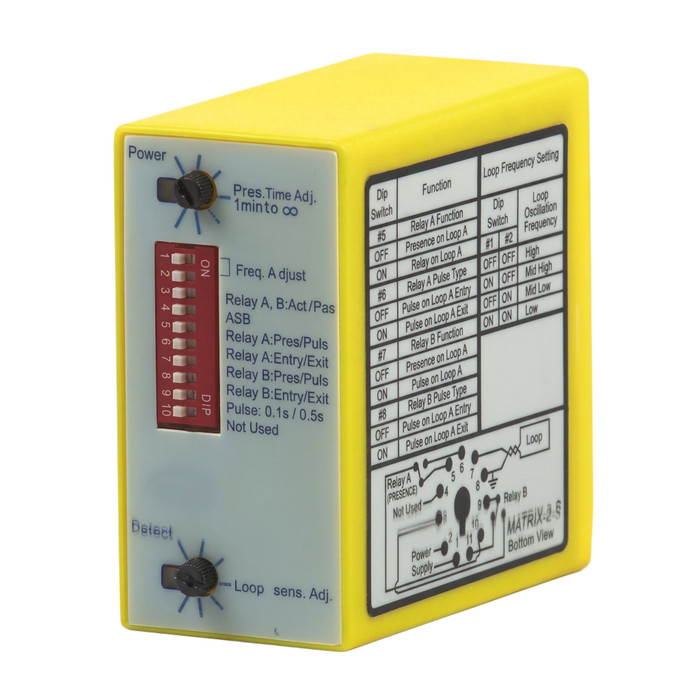

BEA 10MATRIXIIS1224 - Induction Loop Detector, Single or Dual Loop Detector, Automatic Sensitivity Boost, 12 to 24 V AC/DC 10MATRIXIIS1224

BEA 10MATRIXIIS1224 MATRIX FAMILY Induction Loop Detector with Automatic Sensitivity Boost 12-24V AC/DC

(No reviews yet) Write a Review

Model: BEA-10MATRIXIIS1224

In Stock (leaves warehouse same day if ordered before 3pm ET)

$196.86
$154.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10MATRIXIIS1224 MATRIX FAMILY Induction Loop Detector with Automatic Sensitivity Boost 12-24V AC/DC

Professional Vehicle Detection Solution for Industrial Applications

The BEA 10MATRIXIIS1224 MATRIX FAMILY induction loop detector delivers reliable vehicle detection for industrial environments with UL 508 listing for commercial applications. This single or dual loop detector operates on 12 to 24V AC/DC power and features automatic boost sensitivity (ABS) technology for enhanced detection reliability. Designed specifically for vehicle detection applications, this detector provides pulse on entry and pulse on exit functionality for comprehensive access control integration.

Professional Features & Benefits

  • Flexible Power Options: 12 to 24V AC/DC operation accommodates various system voltage requirements for versatile installation options.
  • Automatic Boost Sensitivity (ABS): Advanced sensitivity adjustment automatically optimizes detection performance for changing environmental conditions.
  • Single or Dual Loop Configuration: Configurable for single loop or dual loop detection to meet specific application requirements and traffic flow patterns.
  • UL 508 Listed: UL listing ensures compliance with commercial and industrial safety standards for professional installations.
  • Pulse Detection Modes: Pulse on entry and pulse on exit functionality provides precise vehicle tracking for access control systems.
  • Industrial-Grade Design: Engineered specifically for vehicle detection applications in demanding industrial environments.
  • MATRIX FAMILY Compatibility: Part of the comprehensive MATRIX FAMILY series offering consistent performance and integration capabilities.

Technical Specifications

  • Tuning: Automatic
  • Connector: 11-pin male (86CP11)
  • Presence Time: 1 min - infinity
  • Pulse Time Output: 100 ms or 500 ms
  • LED Indicators: Power: Green | Loop Status 1: Red | Loop Status 2: Red
  • Frequency Range: 20 kHz - 130 kHz
  • Sensitivity: 0.005% - 0.5%
  • Reaction Time: Single Loop: 25 ms | Double Loop: 50 ms (each channel)
  • Setup Time After Configuration: 2 s max by channel
  • Power Supply: 12 - 24 AC/DC +/-10% or 115 VAC +/-10% (depending on model)
  • Power Frequency: 48 - 62 Hz
  • Power Consumption: < 2.5 W
  • Temperature Range: -22 deg. F - 158 deg. F (-30 deg. C - 70 deg. C)
  • Inductance Range: 20 uH - 1000 uH
  • Relay Outputs: 2 (free potential change-over contact)
  • Max Contact Voltage: 230 VAC
  • Max Contact Current: 5 A (resistive)
  • Setup Time at Power On: MATRIXD: 8 s max | MATRIXIIS: 8 s max | MATRIX-3S: 1.6 s max | MATRIX-3D: 2.2 s max
  • Norm Conformance: R&TTE: 1999/5/EC; EMC: 89/336/EEC; EMC: 2004/108/EC; FCC: 47 CFR 15; IC: RSS-210; UL Listed for UL 508

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 12 to 24V AC/DC voltage and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including single or dual loop detection mode and automatic boost sensitivity per application requirements.
  6. Restore power and test all functions including normal operation, pulse on entry and exit detection, and integration with connected access control systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Industrial Facility Vehicle Access Control
  • Commercial Loading Dock Management
  • Warehouse Entry and Exit Monitoring
  • Manufacturing Plant Traffic Control
  • Distribution Center Security Systems
  • Parking Facility Entry Systems
  • Gate Automation and Control Systems

Why Choose BEA Quality?

BEA induction loop detectors deliver professional-grade reliability with UL 508 listing and automatic boost sensitivity technology for demanding industrial vehicle detection applications. The MATRIX FAMILY series provides consistent performance and advanced detection capabilities engineered for commercial environments where dependable access control is essential.

Product Specs

Product Type:
Loop Detector
Series:
MATRIX FAMILY
Subcategory:
Sensors, Switches, Relays and Timers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10MATRIXIIS1224 – Frequently Asked Questions

1) Will the BEA 10MATRIXIIS1224 loop detector plug into an 11-pin socket base I already have on the wall?
Yes. The 10MATRIXIIS1224 uses an 11-pin male connector (86CP11), so it drops into a standard 11-pin octal-style socket base. If your existing base is 11-pin, the detector seats directly; if you have a 4-pin or terminal-strip style base, you need to change the base to an 11-pin.
2) Can one BEA MATRIX detector run two loops, or do I need a separate detector per loop?
One unit handles it. The 10MATRIXIIS1224 is configurable as either a single loop or dual loop detector, and it has two free-potential change-over relay outputs plus two red loop status LEDs, one per channel. That is what lets you run entry and exit loops off a single detector. Reaction time is 25 ms on single loop and 50 ms per channel in double loop mode.
3) What voltage does the 10MATRIXIIS1224 run on, and can I power it off 120V?
This model is the 12 to 24V AC/DC version, plus or minus 10 percent, at 48 to 62 Hz and under 2.5 W draw. It is not a line-voltage unit. The MATRIX family also includes a 115 VAC version, so if your gate operator or dock control only offers line voltage, order that model instead of the 1224.
4) Will my existing saw-cut loop in the pavement work with this detector, or do I have to re-cut it?
The detector accepts loop inductance from 20 uH to 1000 uH and tunes across 20 kHz to 130 kHz, which covers the great majority of existing in-ground saw-cut loops and feeder runs. Tuning is automatic, so you do not set frequency by hand. Keep the total loop plus lead-in inductance inside that 20 to 1000 uH window and the existing loop can be reused.
5) Will a BEA loop detector hold a gate open while a truck sits over the loop?
Yes. Presence time is adjustable from 1 minute to infinity, so you can set it to hold the output as long as a vehicle stays on the loop, which is what you want under a loading dock door or on a safety loop. If you instead need a momentary signal for counting or a single open command, the detector also gives pulse on entry and pulse on exit with a 100 ms or 500 ms pulse output.
6) Can I wire the MATRIX loop detector relay directly to my gate operator's 120V motor control circuit?
The two change-over relay contacts are rated to 230 VAC max and 5 A resistive, so a 120V control circuit is within rating as long as the load stays under 5 A resistive. Motor loads are inductive and should be switched through the operator's own contactor, not the detector contact, to stay inside that rating.
7) Is this loop detector rated for outdoor gate and dock use in cold climates?
The electronics are rated from -22 deg F to 158 deg F (-30 deg C to 70 deg C), so freezing-climate gate houses and unheated dock areas are within spec. The unit itself is a panel or base-mounted control, not a weatherproof enclosure, so mount it in a rated cabinet with clearance for wiring and service.
8) What does automatic boost sensitivity do on the BEA MATRIXIIS, and do I still have to set sensitivity manually?
Automatic boost sensitivity (ABS) raises detection sensitivity on its own as conditions change, which is what keeps high-bed trailers and high-clearance vehicles from dropping off the loop mid-pass. Sensitivity range is 0.005 percent to 0.5 percent and tuning is automatic, so there is no manual frequency setup; you only pick single or dual loop mode and the pulse or presence behavior you want.
9) How long after power-up before the loop detector is actually detecting vehicles?
On the MATRIXIIS, setup time at power on is 8 seconds max. If you change the configuration afterward, re-setup takes no more than 2 seconds per channel. Worth knowing when you are commissioning a gate and wondering why the first pass did not register.
10) How do I tell at a glance whether a BEA MATRIX loop detector has lost a loop?
Three LEDs on the face give you it: a green power LED and a red status LED for loop 1 and loop 2. A dark green LED points at supply, and red loop status behavior points at the loop or lead-in. With automatic tuning and a 20 to 1000 uH acceptance range, a loop reading outside that window is the usual culprit on a fault call.
