ADA-Compliant Automatic Door Activation Solution

The BEA 10PBJX stainless steel jamb push plate provides professional automatic door activation with 1.5" x 4.75" compact dimensions designed for space-constrained installations. This ADA-compliant push plate enhances accessibility for users with limited mobility while seamlessly integrating with automatic door operators through hardwired or wireless connectivity options.

Professional Features & Benefits

• Compact Installation Dimensions: 1.5" x 4.75" size allows mounting in areas with limited space, including guide rail installations.
• ADA Compliance Enhancement: Improves overall door access and enhances accessibility for users with limited mobility or disabilities.
• Wireless Compatibility: Reduces installation time by eliminating the need to run wires from the push plate and additional mounting hardware requirements.
• Dual Connectivity Options: Can be hard wired directly to door operators or connected to BEA's line of wireless transmitters for installation flexibility.
• Versatile Mounting Compatibility: Compatible with both surface and flush mount boxes for various installation requirements.
• Complete Kit Availability: Available in complete kits including plates, mounting boxes and optional wireless devices for simplified ordering and installation.
• Durable Stainless Steel Construction: Professional-grade stainless steel faceplate provides long-term durability in commercial applications.
• Customizable Graphics Options: Available in a variety of popular faceplate graphic options to match facility requirements.

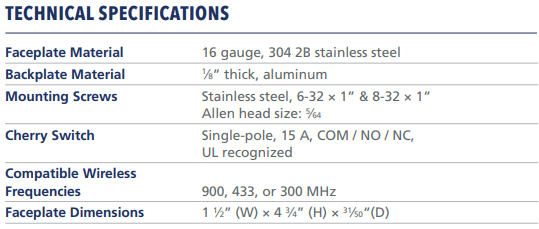

Technical Specifications

• Faceplate Material: 16 gauge, 304 2B Stainless Steel
• Backplate Material: 1/8 inch thick, Aluminum
• Mounting Screws: Stainless Steel, 6-32 x 1 in & 8-32 x 1 in Allen Head Size: 5/64
• Cherry Switch: Single-pole, 15 A, COM / NO / NC, UL Recognized
• Compatible Wireless Frequencies: 900, 433 or 300 MHz
• Faceplate Dimensions: 1.5 in (W) x 4.75 in (H) x 0.62 in (D)

Installation & Operation

1. Verify electrical requirements match available power supply and confirm compatibility with existing automatic door operator system.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the push plate in the specified jamb location ensuring adequate clearance for user access and ADA compliance requirements.
4. Route and connect wiring according to manufacturer wiring diagrams, or configure wireless transmitter connection per BEA specifications.
5. Configure operational settings including activation timing and integration parameters per application requirements.
6. Restore power and test all functions including push plate activation, door operator response, and wireless communication if applicable.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Automatic Door Systems
• Healthcare Facility Accessibility Enhancement
• Educational Institution ADA Compliance
• Retail Store Entrance Automation
• Industrial Facility Access Control
• Multi-Tenant Residential Automatic Doors
• Government Building Accessibility Systems

Why Choose BEA Quality?

BEA jamb push plates deliver professional-grade accessibility solutions with durable stainless steel construction and ADA-compliant design. The 10PBJX series offers both hardwired and wireless connectivity options for maximum installation flexibility. Engineered for demanding commercial applications where reliable automatic door activation and accessibility compliance are essential.
