BEA 10COMBOPLATE Jamb Push Plate and Maintained Keyswitch Double Gang Access Control Switch Plate

BEA 10COMBOPLATE Jamb Push Plate and Maintained Keyswitch Double Gang Access Control Switch Plate

Professional Access Control Solution with Dual Operation Capability

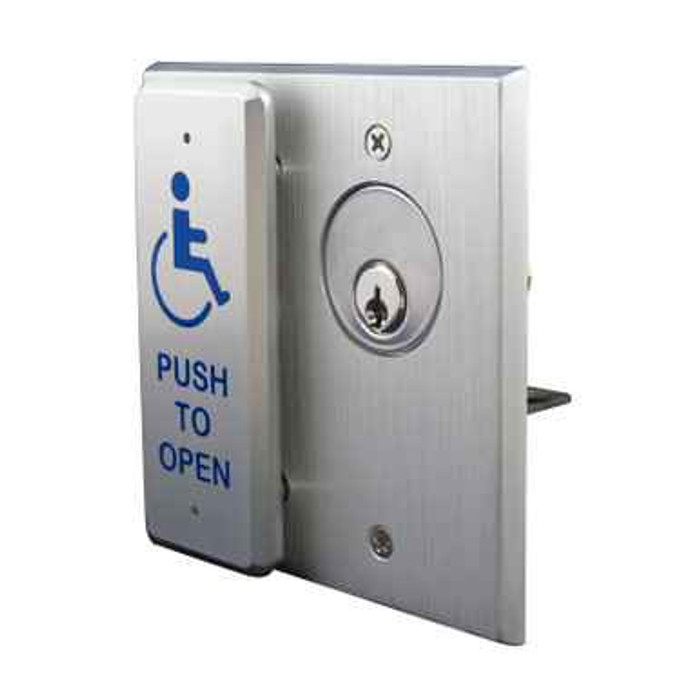

The BEA 10COMBOPLATE combines a jamb push plate and maintained keyswitch on a single double gang faceplate, providing versatile access control for commercial security applications. This low-profile aluminum plate is designed to withstand the rigors of busy environments while delivering reliable switching capability of 6A @ 124 VAC or 3A @ 250 VAC. The combo plate configuration allows for independent operation of the push plate and keyswitch, or enables the keyswitch to activate or disable the push plate for enhanced security control.

Professional Features & Benefits

• Dual Control Configuration: Combines jamb push plate and maintained keyswitch on a single double gang faceplate for versatile access control options.
• Flexible Operation Modes: Allows independent operation of push plate and keyswitch, or keyswitch override to activate or disable the push plate function.
• Heavy-Duty Switching Capacity: Capable of switching 6A @ 124 VAC or 3A @ 250 VAC for reliable electrical performance in demanding applications.
• Vandal-Resistant Construction: Low-profile aluminum wall plate with tamper-resistant screws provides durability in high-traffic environments.
• Tamper-Resistant Hardware: Furnished with both Philips and Spanner tamper-resistant screws for enhanced security and vandal protection.
• Professional Installation: Aesthetically pleasing design with easy installation for clean integration into commercial access control systems.

Technical Specifications

• Technology: Mechanical Key Access
• Faceplate Dimensions (Jamb): 1.75 in (W) x 4.75 in (H) x 0.25 in (D)
• Faceplate Dimensions (Single Gang): 3 in (W) x 4.75 in (H) x 0.25 in (D)
• Faceplate Dimensions (Combo-plate): 4.5 in (W) x 4.5 in (H) x 0.25 in (D)
• Visual Style: Combo-plate: Handicap symbol and "Push To Open" text
• Materials: Aluminum wall plate with tamper-resistant screws
• Switch Rating: 6 A @ 125 VAC or 3 A @ 250 VAC
• Mortise Cylinder: 1-1/8 in cylinder with straight cam required, NOT INCLUDED (Requires 10CYLINDERKA or 10CYLINDERKD)

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm switching capacity requirements (6A @ 124 VAC or 3A @ 250 VAC) before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including keyswitch override functions per application requirements.
6. Restore power and test all functions including normal operation, push plate activation, keyswitch operation, and override functionality.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Emergency Exit Compliance
• Multi-Tenant Residential Access Control

Why Choose BEA Quality?

BEA access control products deliver professional-grade reliability with vandal-resistant aluminum construction and tamper-resistant hardware designed for demanding commercial environments. The 10COMBOPLATE series provides versatile switching capabilities with robust electrical ratings for dependable performance in high-traffic security applications. Engineered for demanding commercial applications where reliable access control and vandal resistance are essential.
