Professional Access Control Switch Plate Solution

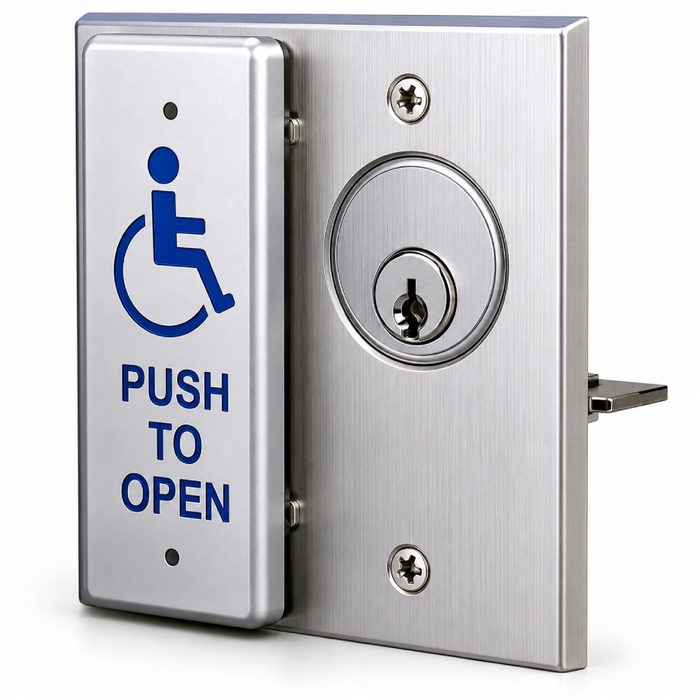

The BEA 10COMBOPLATEMOM combines a jamb push plate and momentary keyswitch on a single double gang faceplate for versatile access control applications. This low-profile aluminum plate is designed to withstand the rigors of busy commercial environments while providing an aesthetically pleasing and easy to install access control device. Capable of switching 6A @ 124 VAC or 3A @ 250 VAC, this combo plate allows for independent operation of the push plate and keyswitch, or allows the keyswitch to activate or disable the push plate.

Professional Features & Benefits

• Dual Control Configuration: Combines jamb push plate and momentary keyswitch on a single double gang faceplate for flexible access control options.
• Keyswitch Override Capability: Allows independent operation of push plate and keyswitch, or enables keyswitch to activate or disable the push plate for enhanced security control.
• High Power Switching Capacity: Capable of switching 6A @ 124 VAC or 3A @ 250 VAC for compatibility with various access control systems.
• Vandal-Resistant Construction: Low-profile aluminum wall plate with tamper-resistant screws provides durability in high-traffic commercial environments.
• Professional Installation Hardware: Furnished with both Phillips and Spanner tamper-resistant screws for secure mounting and vandal resistance.
• Commercial-Grade Design: Engineered to withstand the rigors of busy environments while maintaining aesthetic appeal and reliable operation.

Technical Specifications

• Technology: Mechanical Key Access
• Faceplate Dimensions (Jamb): 1.75 in (W) x 4.75 in (H) x 0.25 in (D)
• Faceplate Dimensions (Single Gang): 3 in (W) x 4.75 in (H) x 0.25 in (D)
• Faceplate Dimensions (Combo-plate): 4.5 in (W) x 4.5 in (H) x 0.25 in (D)
• Visual Style: Combo-plate: Handicap symbol and "Push To Open" text
• Materials: Aluminum wall plate with tamper-resistant screws
• Switch Rating: 6 A @ 125 VAC or 3 A @ 250 VAC
• Mortise Cylinder: 1-1/8 in cylinder with straight cam required, NOT INCLUDED (Requires 10CYLINDERKA or 10CYLINDERKD)

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage and current capacity before proceeding with installation.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including keyswitch override functions per application requirements.
6. Restore power and test all functions including normal operation, push plate activation, keyswitch operation, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Emergency Exit Compliance
• Multi-Tenant Residential Access Control

Why Choose BEA Quality?

BEA access control products deliver professional-grade reliability with vandal-resistant aluminum construction and tamper-resistant hardware designed for demanding commercial applications. The 10COMBOPLATEMOM series combines dual control functionality with high power switching capacity up to 6A @ 124 VAC, ensuring dependable performance where reliable access control is essential.
