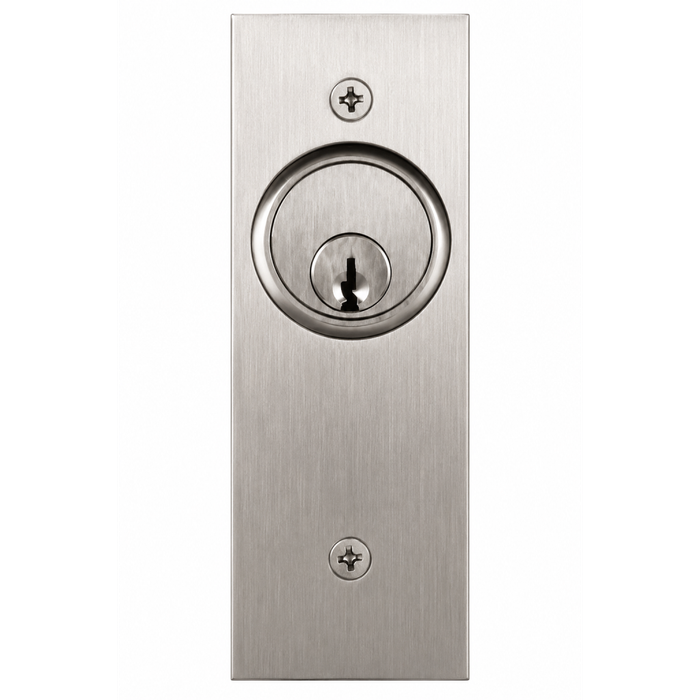

BEA 10JAMBSWITCHONF Access Control Keyswitch Plate with Tamper-Resistant Design

BEA 10JAMBSWITCHONF Access Control Keyswitch Plate with Tamper-Resistant Design

Professional Access Control Solution for Commercial Security Applications

The BEA 10JAMBSWITCHONF access control keyswitch plate delivers reliable security control with vandal-resistant aluminum construction and tamper-resistant mounting hardware. This low-profile jamb-mount keyswitch is capable of switching 6A @ 124 VAC or 3A @ 250 VAC, making it suitable for demanding commercial access control applications. The unit features both Phillips and Spanner tamper-resistant screws for secure installation in high-traffic environments.

Professional Features & Benefits

• Vandal-Resistant Construction: Aluminum wall plate with tamper-resistant screws provides exceptional durability in busy commercial environments.
• High Power Switching Capacity: Capable of switching 6A @ 124 VAC or 3A @ 250 VAC for versatile electrical load management.
• Low-Profile Design: Aesthetically pleasing jamb-mount configuration integrates seamlessly with door frame installations.
• Tamper-Resistant Security: Furnished with both Phillips and Spanner tamper-resistant screws to prevent unauthorized removal or tampering.
• Commercial-Grade Durability: Aluminum construction designed to withstand the rigors of high-traffic commercial applications.
• Easy Installation: Low-profile design provides straightforward mounting and professional appearance in security installations.

Technical Specifications

• Technology: Mechanical Key Access
• Faceplate Dimensions (Jamb): 1.75 in (W) x 4.75 in (H) x 0.25 in (D)
• Faceplate Dimensions (Single Gang): 3 in (W) x 4.75 in (H) x 0.25 in (D)
• Faceplate Dimensions (Combo-plate): 4.5 in (W) x 4.5 in (H) x 0.25 in (D)
• Visual Style: Combo-plate: Handicap symbol and "Push To Open" text
• Materials: Aluminum wall plate with tamper-resistant screws
• Switch Rating: 6 A @ 125 VAC or 3 A @ 250 VAC
• Mortise Cylinder: 1-1/8 in cylinder with straight cam required, NOT INCLUDED (Requires 10CYLINDERKA or 10CYLINDERKD)

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm switching capacity requirements (6A @ 124 VAC or 3A @ 250 VAC) before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the keyswitch plate in the door jamb location ensuring adequate clearance for wiring access and cylinder operation.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the switching application.
5. Secure the plate using the provided tamper-resistant screws (both Phillips and Spanner types included) for maximum security.
6. Install compatible cylinder (not included) and test keyswitch operation through full range of positions.
7. Complete final inspection and document wiring connections. Refer to manufacturer documentation for complete wiring diagrams and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Access Control
• Healthcare Facility Security
• Educational Institution Access Points
• Industrial Facility Entry Control
• Multi-Tenant Building Security
• Government Facility Access Management

Why Choose BEA Quality?

BEA access control products deliver professional-grade reliability with vandal-resistant aluminum construction and tamper-resistant hardware designed for demanding commercial security applications. The 10JAMBSWITCHONF keyswitch provides high-capacity electrical switching with durable materials engineered to withstand busy commercial environments while maintaining aesthetic appeal and security integrity.
