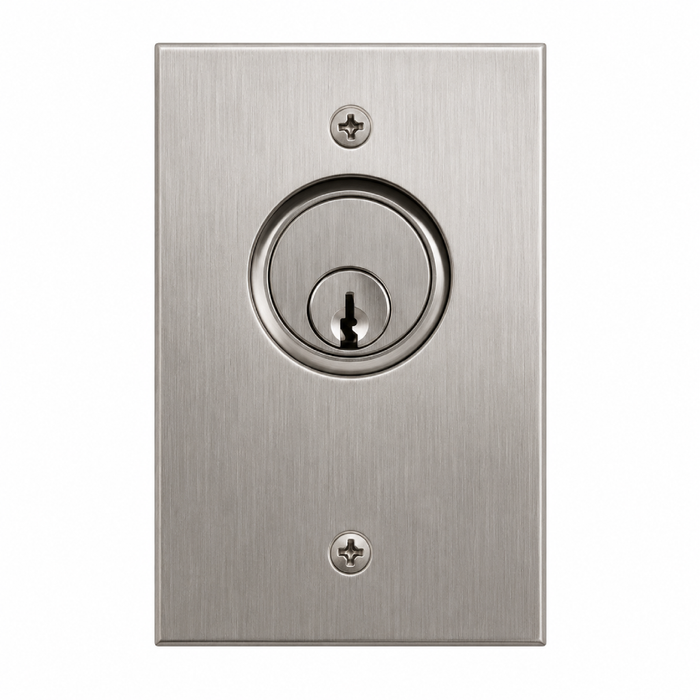

BEA 10KEYSWITCHONF Access Control Keyswitch Plate Single Gang On/Off with Tamper-Resistant Design

BEA 10KEYSWITCHONF Access Control Keyswitch Plate Single Gang On/Off with Tamper-Resistant Design

Professional Access Control Switch Solution

The BEA 10KEYSWITCHONF Access Control Keyswitch Plate provides an economical and efficient solution for controlling access in commercial security applications. This single gang on/off switch plate features vandal-resistant aluminum construction with tamper-resistant screws and is capable of switching 6A @ 124 VAC or 3A @ 250 VAC. The low-profile design withstands the rigors of busy environments while providing an aesthetically pleasing and easy to install access control device.

Professional Features & Benefits

• Vandal-Resistant Construction: Aluminum wall plate with tamper-resistant screws provides exceptional durability for high-traffic commercial applications.
• Selectable Power Consumption: Capable of switching 6A @ 124 VAC or 3A @ 250 VAC for versatile electrical load management.
• Low-Profile Design: Aesthetically pleasing aluminum construction designed to withstand the rigors of busy environments.
• Tamper-Resistant Security: Furnished with both Philips and Spanner tamper-resistant screws for enhanced security protection.
• Easy Installation: Single gang configuration provides straightforward mounting in standard electrical boxes.
• Commercial-Grade Performance: Engineered for demanding access control applications requiring reliable switching operation.

Technical Specifications

• Technology: Mechanical Key Access
• Faceplate Dimensions (Jamb): 1.75 in (W) x 4.75 in (H) x 0.25 in (D)
• Faceplate Dimensions (Single Gang): 3 in (W) x 4.75 in (H) x 0.25 in (D)
• Faceplate Dimensions (Combo-plate): 4.5 in (W) x 4.5 in (H) x 0.25 in (D)
• Visual Style: Combo-plate: Handicap symbol and "Push To Open" text
• Materials: Aluminum wall plate with tamper-resistant screws
• Switch Rating: 6 A @ 125 VAC or 3 A @ 250 VAC
• Mortise Cylinder: 1-1/8 in cylinder with straight cam required, NOT INCLUDED (Requires 10CYLINDERKA or 10CYLINDERKD)

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm voltage and current capacity before proceeding with 6A @ 124 VAC or 3A @ 250 VAC specifications.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including any configurable options per application requirements.
6. Restore power and test all functions including normal operation, alarm/alert functions, and integration with connected systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Security Systems
• Retail Loss Prevention
• Healthcare Facility Access Control
• Educational Institution Safety Systems
• Industrial Facility Monitoring
• Emergency Exit Compliance
• Government and Municipal Buildings

Tamper-Resistant Design

The BEA 10KEYSWITCHONF features vandal-resistant aluminum construction with both Philips and Spanner tamper-resistant screws for enhanced security protection. This design prevents unauthorized access to the switch mechanism while maintaining reliable operation in high-traffic commercial environments.

Why Choose BEA Quality?

BEA access control products deliver professional-grade reliability with vandal-resistant aluminum construction and tamper-resistant security features. The 10KEYSWITCHONF series is capable of switching 6A @ 124 VAC or 3A @ 250 VAC for demanding commercial applications. Engineered for demanding commercial applications where dependable performance and security protection are essential.
