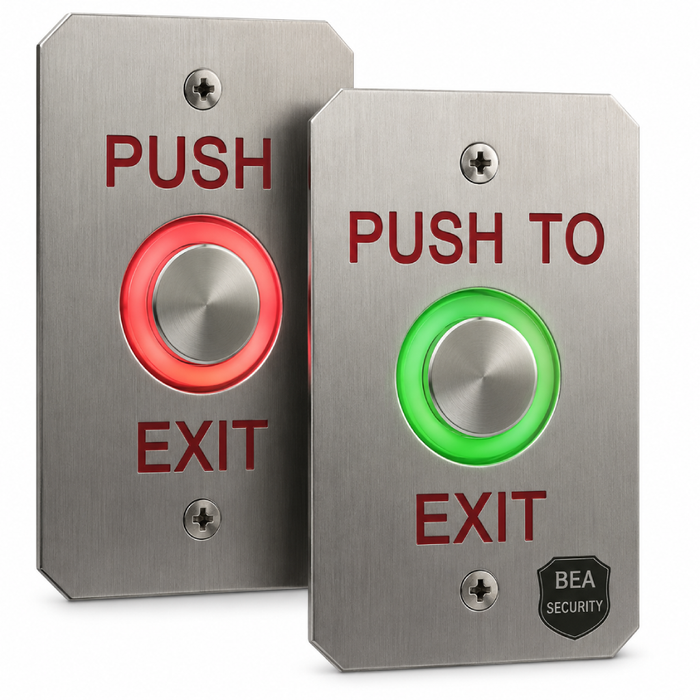

BEA 10PIEZO241 Heavy-Duty Piezoelectric Push Button with Auto-Sensing 12/24 VDC

BEA 10PIEZO241 Heavy-Duty Piezoelectric Push Button with Auto-Sensing 12/24 VDC

Professional Piezoelectric Access Control Solution

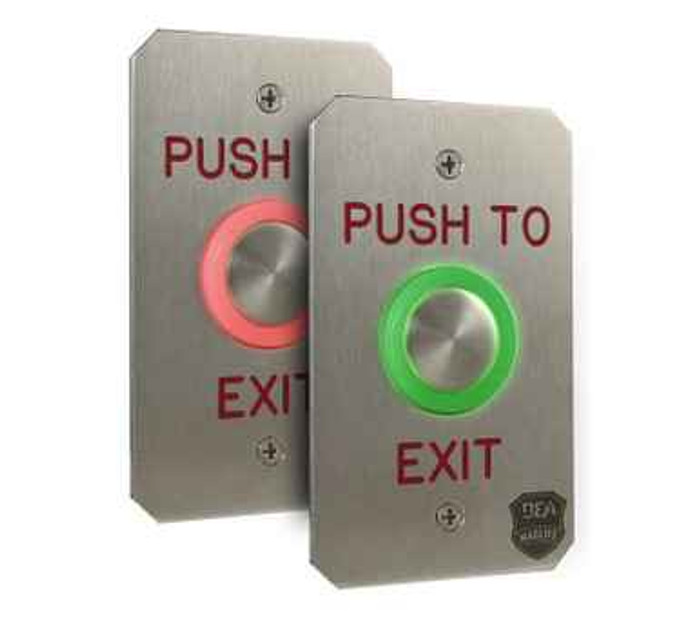

The BEA 10PIEZO241 is a heavy-duty piezoelectric push button designed for extreme environments including outdoor and industrial applications. This professional-grade button features stainless steel faceplate construction and utilizes piezoelectric technology to convert physical touch pressure into electrical energy. With auto-sensing 12/24 VDC operation and adjustable output timer ranging from 1 to 40 seconds, this vandal-resistant button provides reliable performance for request to exit and access control applications.

Professional Features & Benefits

• Adjustable Output Timer: User-configurable hold time from 1 to 40 seconds for flexible application requirements.
• Auto-Sensing Power Supply: 12/24 VDC auto-sensing operation eliminates voltage compatibility concerns for versatile installation.
• Heavy-Duty Construction: Stainless steel faceplate provides exceptional durability for extreme environments including outdoor and industrial applications.
• Piezoelectric Technology: Converts physical touch pressure to electrical energy for reliable operation without mechanical wear points.
• Flexible Configuration Options: Can be configured for fail-safe or fail-secure operation and wired normally open or normally closed.
• Customizable LED Illumination: LED illumination can be customized to user preference for enhanced visibility and status indication.
• Vandal-Resistant Design: Vandal and tamper resistant construction ensures reliable operation in high-risk environments.
• Single Gang Installation: Standard single gang mounting for easy integration into existing electrical boxes and access control systems.

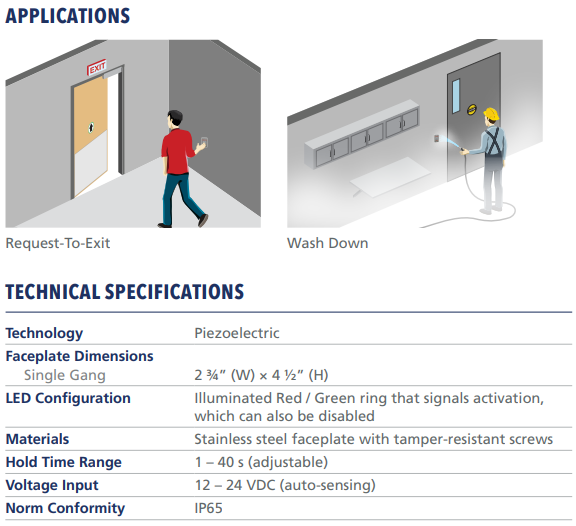

Technical Specifications

• Technology: Piezoelectric
• Faceplate Dimensions: Single Gang - 2.75 in (W) x 4.5 in (H)
• LED Configuration: Illuminated Red / Green ring that signals activation, which can also be disabled
• Materials: Stainless steel faceplate with tamper-resistant screws
• Switch Rating: 2 A @ 30 VDC; 500 mA @ 125 VAC
• Hold Time Range (adjustable): 1 s - 40 s
• Voltage Input: 12 - 24 VDC (auto-sensing)
• Relay: DPDT
• Operating Temperature: -40 deg. F - 160 deg. F
• Norm Conformance: NEMA 4 / IP65

Installation & Operation

1. Verify electrical requirements match available power supply. Confirm 12/24 VDC auto-sensing compatibility before proceeding.
2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
3. Mount the unit in the specified single gang location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
5. Configure operational settings including fail-safe or fail-secure operation and normally open or normally closed wiring per application requirements.
6. Restore power and test all functions including normal operation, LED illumination, and integration with connected access control systems.
7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

• Commercial Building Access Control Systems
• Industrial Facility Security
• Outdoor Entry Point Control
• Request to Exit Applications
• High-Security Area Access
• Vandal-Prone Environment Installations
• Emergency Exit Compliance Systems

Vandal-Resistant Design

The BEA 10PIEZO241 features vandal and tamper resistant construction with a stainless steel faceplate designed to withstand abuse in high-risk environments. The piezoelectric technology eliminates mechanical wear points that could be compromised through vandalism, ensuring long-term reliable operation even under extreme conditions.

Why Choose BEA Quality?

BEA piezoelectric push buttons deliver professional-grade reliability with stainless steel construction and piezoelectric technology rated for extreme environments. The vandal-resistant design and auto-sensing power supply ensure dependable performance in demanding commercial and industrial applications where reliable access control is essential.
