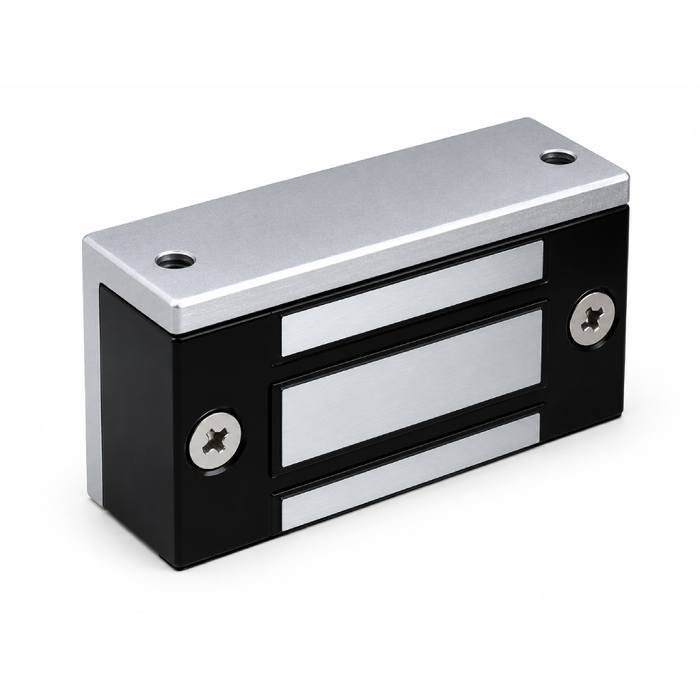

BEA 10MAGLIFELOCK9 Cabinet Electromagnetic Lock 12/24 VDC 80 Lb Holding Force

BEA 10MAGLIFELOCK9 Cabinet Electromagnetic Lock 12/24 VDC 80 Lb Holding Force

(No reviews yet) Write a Review

Model: BEA-10MAGLIFELOCK9

In Stock (leaves warehouse same day if ordered before 3pm ET)

$156.81
$106.55
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10MAGLIFELOCK9 Cabinet Electromagnetic Lock 12/24 VDC 80 Lb Holding Force

Economical Low-Profile Electromagnetic Locking Solution

The BEA 10MAGLIFELOCK9 Cabinet Electromagnetic Lock delivers reliable 80 lb holding force for access control applications requiring moderate security. This compact electromagnetic lock operates on 12/24 VDC power and features a low-profile design measuring 2.75" x 1.22" for versatile installation on cabinet doors and drawers. Engineered for commercial applications, this economical locking device provides dependable electromagnetic security for controlled access environments.

Professional Features & Benefits

  • Compact Dimensions: 2.75" x 1.22" low-profile design ideal for installation on most types of cabinet doors and drawers.
  • Dual Voltage Operation: 12/24 VDC compatibility provides flexible power supply options for various system configurations.
  • 80 Lb Holding Force: Provides reliable electromagnetic locking strength for low to moderate security applications.
  • Versatile Cabinet Applications: Suitable for pharmaceutical cabinets, retail display cases, gun cabinets, file cabinets, utility cabinets, and museum display cases.
  • Low-Profile Design: Economical electromagnetic locking solution designed specifically for cabinet and drawer access control.
  • Commercial-Grade Construction: Engineered for reliable performance in commercial access control environments.

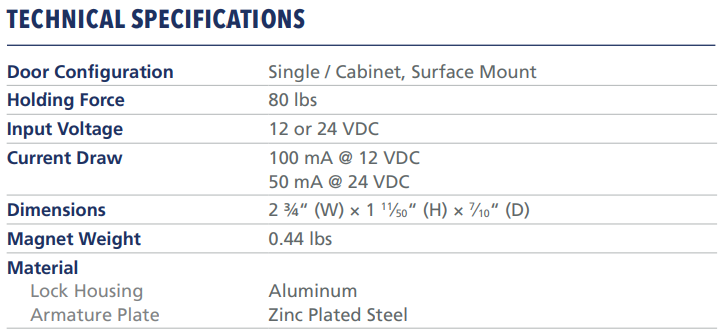

Technical Specifications

  • Door Configuration: Single / cabinet, surface mount
  • Holding Force: 80 lb
  • Input Voltage: 12 or 24 VDC
  • Current Draw: 100 mA @ 12 VDC | 50 mA @ 24 VDC
  • Magnet Weight: 0.44 lbs
  • Material (Lock Housing): Aluminum
  • Material (Armature Plate): Zinc Plated Steel
  • Dimensions: 2.75 in (W) x 1.22 in (H) x 0.70 in (D)

Installation & Operation

  1. Verify electrical requirements match available power supply. Confirm 12/24 VDC voltage and current capacity before proceeding.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including any configurable options per application requirements.
  6. Restore power and test all functions including normal operation, alarm/alert functions, and integration with connected systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Pharmaceutical Cabinet Security
  • Retail Display Case Access Control
  • Gun Cabinet Locking Systems
  • File Cabinet Security
  • Utility Cabinet Access Control
  • Museum Display Case Protection
  • Commercial Storage Security

Why Choose BEA Quality?

BEA electromagnetic locking products deliver professional-grade reliability with economical design engineered for demanding commercial applications. The 10MAGLIFELOCK9 series provides dependable 80 lb holding force in a compact form factor ideal for cabinet and drawer security applications. Engineered for commercial access control environments where reliable electromagnetic locking performance is essential.

Product Specs

Product Type:
Cabinet Lock
Series:
10MAGLIFELOCK9
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Holding Force:
80 lbs
Product Voltage:
12/24 VDC
Product Size:
2.75" x 1.22"
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10MAGLIFELOCK9 – Frequently Asked Questions

1) Is 80 lb holding force enough for a cabinet or display case door?
The BEA 10MAGLIFELOCK9 is an 80 lb holding force electromagnetic lock, which puts it in the low to moderate security bracket. That is sized for cabinet doors and drawers, pharmaceutical cabinets, retail and museum display cases, gun cabinets, and file cabinets. It is not a door mag lock, so if you are holding a swinging entry door in a commercial opening you need a full size magnetic lock rated in the hundreds of pounds instead.
2) Will the BEA 10MAGLIFELOCK9 run on my existing 12 VDC access control power supply?
Yes. The 10MAGLIFELOCK9 cabinet mag lock takes either 12 or 24 VDC, so it drops onto most access control power supplies without a separate transformer. Budget 100 mA at 12 VDC or 50 mA at 24 VDC per lock when you size the supply, which matters if you are ganging several cabinets onto one board. It is DC only, so do not feed it from a 24 VAC transformer.
3) Is this a fail safe lock, meaning does the cabinet open if power drops?
An electromagnet holds only while it is energized, so cutting power to the 10MAGLIFELOCK9 releases the cabinet. That is fail safe behavior by definition of the magnet. If the contents must stay secured through a power failure, back the supply with a battery, or use a mechanical cabinet lock instead of a magnetic one.
4) How many of these cabinet locks can I put on one 24 VDC supply?
At 24 VDC each 10MAGLIFELOCK9 draws 50 mA, so ten locks pull about 500 mA continuous. At 12 VDC the draw doubles to 100 mA each. Running the bank at 24 VDC halves your current and lets you use a smaller supply or longer wire runs across a row of display cases.
5) Where do I find the wiring diagram for the BEA 80 lb MagLife cabinet lock?
Wiring and mounting detail is in the MAGLIFE LOCK user's guide supplied with the product, and the cabinet lock brochure covers the application range. Follow the guide's diagram for polarity and wire gauge, cut power before mounting, then test the release with the access control input before closing up the cabinet.
