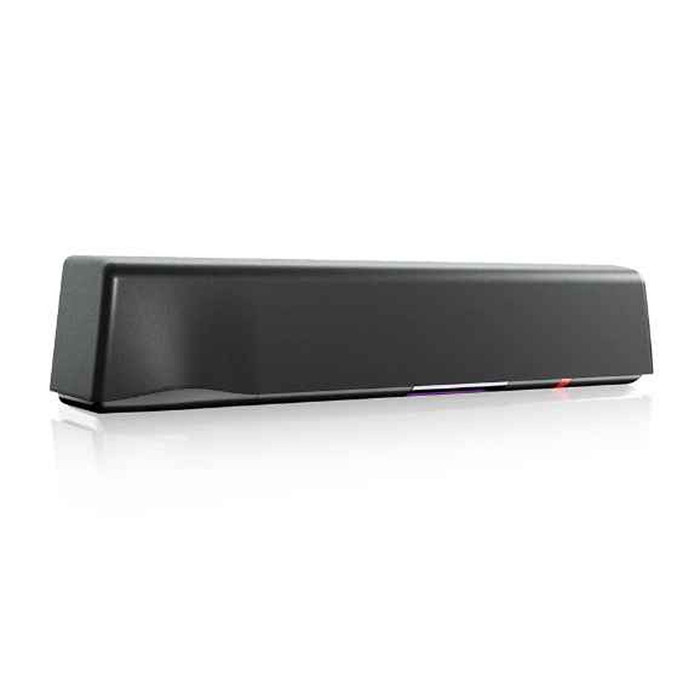

BEA BEA 10ULTIMO - ULTIMO Dual Technology Automatic Sliding Door Sensor, Extended/Enhanced Safety, Motion and Presence Detection 10ULTIMO

BEA 10ULTIMO ULTIMO Dual Technology Automatic Sliding Door Sensor with Extended Safety and Motion Detection

(No reviews yet) Write a Review

Model: BEA-10ULTIMO

In Stock (leaves warehouse same day if ordered before 3pm ET)

$678.30
$335.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10ULTIMO ULTIMO Dual Technology Automatic Sliding Door Sensor with Extended Safety and Motion Detection

Advanced Dual Technology Motion and Presence Detection System

The BEA 10ULTIMO ULTIMO combines radar and active infrared technology to provide comprehensive motion and presence detection for automatic sliding doors. This dual technology sensor features microwave motion field activation and three adjustable infrared curtains with 32 spots of detection each, ensuring optimal safety for pedestrians passing through door openings. The ULTI-SHIELD technology provides uniform sensitivity across safety curtains with extended or enhanced infrared curtain positioning capabilities.

Professional Features & Benefits

  • Dual Technology Detection: Radar and active infrared technology combination provides reliable motion detection and enhanced safety coverage for automatic sliding door applications.
  • Advanced Infrared Safety System: Three adjustable infrared curtains with 32 spots of detection each ensure comprehensive pedestrian safety through the door opening.
  • ULTI-SHIELD Technology: Provides uniform sensitivity across safety curtains with extended or enhanced infrared curtain positioning, ensuring no loss of detection and immunity to environmental disturbances.
  • Menu-Driven LCD Configuration: Easy field adjustment of microwave and infrared detection fields via LCD screen reduces manual adjustments for efficient installation and service maintenance.
  • Flexible Coverage Options: Five infrared curtain width settings provide adaptability for narrow to wide door packages in various commercial applications.
  • ULTI-SYNC Technology: Automatically synchronizes infrared curtains between sensors ensuring seamless retrofit installations and consistent performance.
  • High-Traffic Performance: Engineered for demanding commercial environments including hospitals, hotels, airports, and retail facilities where reliable operation is essential.

Technical Specifications

  • Technology: Microwave Doppler Radar + Active Infrared (dual technology)
  • Application: Dual technology sensor for automatic sliding doors
  • Cable: Replacement control harness: P/N 20.5349

Installation & Operation

  1. Verify electrical requirements match available power supply and confirm current capacity before proceeding with installation.
  2. Disconnect power supply before beginning installation. Follow all applicable electrical codes and safety procedures.
  3. Mount the sensor unit in the specified location ensuring adequate clearance for wiring access, ventilation, and future service requirements.
  4. Route and connect wiring according to manufacturer wiring diagrams. Use appropriate wire gauge and connectors for the application.
  5. Configure operational settings including microwave and infrared field adjustments using the menu-driven LCD screen per application requirements.
  6. Restore power and test all functions including motion detection, presence detection, infrared curtain operation, and integration with automatic door systems.
  7. Complete final inspection and document settings. Refer to manufacturer documentation for complete wiring diagrams, programming instructions, and troubleshooting.

Professional Applications

  • Hospital and Healthcare Facility Entrances
  • Hotel and Hospitality Automatic Doors
  • Airport Terminal Access Points
  • Retail Store Entrance Systems
  • Commercial Office Building Entrances
  • High-Traffic Public Building Access
  • Educational Facility Automatic Door Systems

Why Choose BEA Quality?

BEA ULTIMO sensors deliver professional-grade reliability with dual technology radar and active infrared detection systems engineered for demanding commercial applications. The ULTI-SHIELD and ULTI-SYNC technologies ensure consistent performance and easy installation in high-traffic environments. Designed for dependable operation where pedestrian safety and reliable automatic door function are essential.

Manufacturer Resources

BEA Product Catalog

Product Specs

Product Type:
Motion and Presence Sensor
Series:
ULTIMO
Subcategory:
Sensors, Switches, Relays and Timers
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Technology:
Radar & Active Infrared
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA BEA-10ULTIMO – Frequently Asked Questions

1) What kind of door does the BEA 10ULTIMO sensor go on?
The 10ULTIMO is built for automatic sliding doors, not swing doors. It handles two jobs on that opening at once: microwave radar activation to open the door, and active infrared curtains that watch the threshold so the door doesn't close on someone standing in it. If the opening is a swing door, this is the wrong sensor type.
2) Do I still need a separate safety sensor if I use the 10ULTIMO?
No. The 10ULTIMO is a combined activation and presence unit. Three adjustable infrared curtains, 32 detection spots each, cover the pedestrian path through the opening, while the microwave field does the activation. That's why it is called a dual technology sensor rather than a motion-only header sensor.
3) If I put two ULTIMO sensors on the same opening, will the infrared curtains interfere with each other?
No. ULTI-SYNC automatically synchronizes the infrared curtains between sensors, which is what lets you run a unit on each side of a sliding package without crosstalk. It is also what BEA leans on for retrofit jobs where a second sensor is already in place.
4) Will the 10ULTIMO cover a wide entrance, or is it only for narrow door packages?
Five infrared curtain width settings are selectable, so the same unit adapts from narrow door packages up to wide ones. The curtain width is chosen in the field rather than being fixed by the part you order.
5) How are the detection fields adjusted on the BEA ULTIMO sensor, and can it be done from a ladder?
Adjustment is menu driven through an LCD screen on the unit. Both the microwave field and the infrared field are set from that menu, so you are not fiddling with potentiometers or moving lenses by hand to dial in coverage. That is the difference a service tech feels most on a callback.
6) What does ULTI-SHIELD actually do on the BEA ULTIMO?
ULTI-SHIELD keeps sensitivity uniform across the safety curtains when the curtains are pushed out to the extended or enhanced positions. In practice that means no soft spot in the middle of the curtain and better immunity to environmental disturbance, so the door doesn't nuisance-trip or, worse, miss someone at the edge of the field.
7) My ULTIMO sensor works but the harness is damaged. Is the cable available separately?
Yes. The replacement control harness for the ULTIMO is BEA part number 20.5349. That's the piece to order when the sensor itself is fine and only the control cable needs replacing.
8) Is the BEA 10ULTIMO suitable for a hospital or airport entrance with constant traffic?
Yes, that is the intended service. BEA lists hospitals and healthcare entrances, hotels, airport terminals, retail, commercial office lobbies and schools as the applications for the ULTIMO, and it is a commercial-rated product rather than a residential one.
9) Is there only one version of the 10ULTIMO to order, or do I have to pick options?
One model, the 10ULTIMO. There are no finish, handing or width variants to specify at order time, because the coverage choices (curtain width, microwave field, curtain position) are all set in the field through the LCD menu after mounting.
10) Where do I find the wiring diagram and voltage requirements for the BEA ULTIMO?
BEA publishes the ULTIMO data in its product catalog PDF, which carries the wiring diagrams and programming detail. Before you mount anything, confirm the available power supply and its current capacity against those electrical requirements, then kill power at the operator before landing any wiring.
