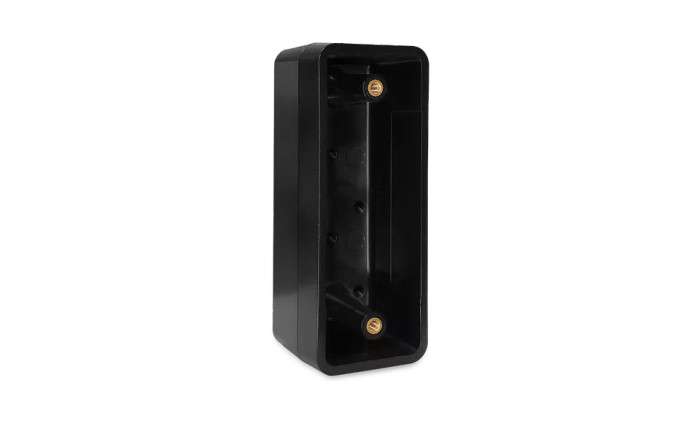

BEA 10MSBOX Surface Mount Jamb-Style Box for Magic Switch Sensors

BEA 10MSBOX Surface Mount Jamb-Style Box for Magic Switch Sensors

(No reviews yet) Write a Review

Model: 10MSBOXJAMBSM
From the 10 BOX Collection

In Stock (leaves warehouse same day if ordered before 3pm ET)

$58.00
$30.05
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10MSBOX Surface Mount Jamb-Style Box for Magic Switch Sensors

Professional Mounting Solution for Magic Switch Sensor Systems

The BEA 10MSBOX provides a professional surface mount installation solution specifically designed for Magic Switch sensor products. This jamb-style mounting box enables clean, secure installation of Magic Switch sensors in commercial door applications where surface mounting is required or preferred over recessed installation.

Professional Features & Benefits

  • Magic Switch Compatibility: Specifically engineered for BEA Magic Switch sensor products ensuring proper fit and optimal performance.
  • Jamb-Style Design: Professional jamb-style configuration provides clean integration with door frame installations.
  • Surface Mount Installation: Eliminates the need for frame preparation or recessed mounting, simplifying installation in existing openings.
  • Durable Construction: Built to withstand commercial door environment demands for long-term reliability.
  • Professional Appearance: Clean mounting solution maintains aesthetic appeal while providing secure sensor housing.

Technical Specifications

  • Technology: Microwave Doppler Radar
  • Detection Mode: Motion (bidirectional), Toggle or Timed Mode
  • Sensing Zone: 2 in - 24 in (adjustable)
  • Hold Time: 1 s - 30 s
  • Alert Settings (Audible): Silent Mode or Signal Mode
  • Alert Settings (Visual): Blue (Standby); Green (Activation)
  • Supply Voltage: 12 - 24 VAC / VDC or 5 VDC
  • Current Consumption: < 2.8 W
  • Temperature Range: -22 deg. F - 158 deg. F
  • Enclosure Rating: NEMA 4 / IP65
  • Relay: 1-Form C Solid State Relay; 1 A; 30 VAC / VDC (max)
  • Dimensions (Single Gang): 2.75 in (W) x 4.5 in (H) x 0.98 in (D)
  • Dimensions (Double Gang): 4.5 in (W) x 4.5 in (H) x 0.98 in (D)
  • Dimensions (Jamb): 1.68 in (W) x 4.5 in (H) x 0.98 in (D)
  • Wire Harness Length: 12 in
  • Material: Stainless Steel (faceplate) / ABS (center)

Installation & Operation

This mounting box is designed for use with compatible BEA Magic Switch sensor products. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Building Security Systems
  • Retail Loss Prevention
  • Healthcare Facility Access Control
  • Educational Institution Safety Systems
  • Industrial Facility Monitoring
  • Emergency Exit Compliance
  • Multi-Tenant Residential Properties

Why Choose BEA Quality?

BEA mounting solutions deliver professional-grade reliability with precision-engineered compatibility for Magic Switch sensor systems. Designed for demanding commercial applications where dependable sensor mounting and clean installation appearance are essential for optimal access control system performance.

Manufacturer Resources

BEA Product Catalog

Product Specs

Subcategory:
Sensors, Switches, Relays and Timers
Product Group:
Electronic Access Controls
Product Subgroup:
Sensors, Switches, Relays and Timers
Collection:
10 BOX
Product Category:
Electronic Access Controls
Department:
Door Hardware

BEA 10MSBOXJAMBSM – Frequently Asked Questions

1) Is the BEA 10MSBOX box weatherproof enough for an exterior door?
The Magic Switch assembly it houses carries a NEMA 4 / IP65 enclosure rating and an operating range of -22 deg F to 158 deg F, which covers an exposed exterior entrance in most North American climates. The faceplate is stainless steel with an ABS center section, so the exposed surface is the corrosion-resistant part.
2) What power and wiring do I need to run to a jamb-mounted BEA Magic Switch?
Supply is 12 to 24 VAC or VDC, or 5 VDC, drawing under 2.8 W, and the switching side is a 1-Form C solid state relay rated 1 A at 30 VAC/VDC max. A 12 in wire harness comes off the unit, so plan a junction or transition point within a foot of the box on the jamb. The relay rating is the number to check against your operator or maglock input before you commit.
3) Will a jamb-mounted Magic Switch pick up people walking past the door instead of only those reaching for it?
Detection is microwave Doppler radar with an adjustable sensing zone of 2 in to 24 in, so you can pull it in tight enough that only a hand presented at the jamb triggers it, not foot traffic in the corridor. Hold time adjusts from 1 to 30 seconds, and it runs bidirectional motion, toggle, or timed mode. In a hospital corridor or a school hallway, dial the zone toward the short end.
4) What mounting height do I order the BEA 10MSBOX jamb box for?
There is one mounting range to specify, 7 to 10 feet, which covers the sensor height on a standard commercial opening through a tall storefront head. That is the choice on the order form, so pick it against the height you intend to mount the Magic Switch at, not the door height.
5) Does the BEA 10MSBOX work with any touchless switch or only BEA sensors?
Only BEA Magic Switch sensor products. The 10MSBOX is built around that sensor's footprint, so it is not a generic jamb enclosure and will not house another manufacturer's touchless actuator. If you are standardizing a building on Magic Switch, this is the frame-mount housing for that family.
6) Can staff tell whether a jamb-mounted Magic Switch actually activated?
Yes, two ways. Visually it shows blue on standby and green on activation, so a user standing at the frame gets confirmation. Audibly you can set silent mode or signal mode, which matters in a healthcare or dormitory setting where a beep at every activation is a complaint waiting to happen.
