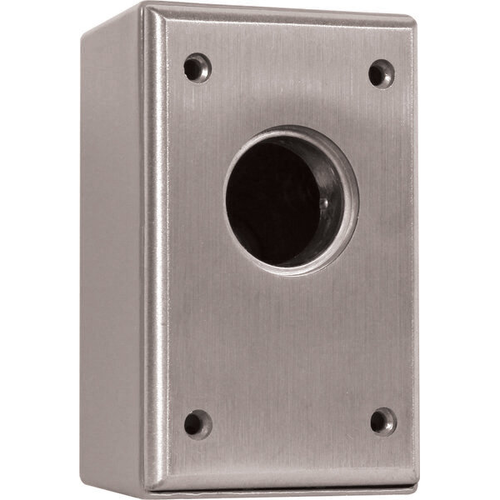

Camden CM-1000 Series Cast Aluminum Key Switch with Surface Box
Model: CM-CM-1000
Camden CM-1000 Series Cast Aluminum Key Switch with Surface Boxon
Camden CM-1000 key switches offer a vandal resistant 1/4" thick aluminum faceplate and are designed for high traffic outdoor or...
Camden Door Controls
$144.00
$119.57
Camden CM-110SK Slim Line Surface Mount Keypad 2,000 Users
Model: CM-CM-110SK
Camden CM-110SK Slim Line Surface Mount Keypad 2,000 Users
Camden surface mount keypads are rugged, weather and vandal-resistant standalone devices for control of electrically locked doors. Camden...
Camden Door Controls
$190.00
$144.04

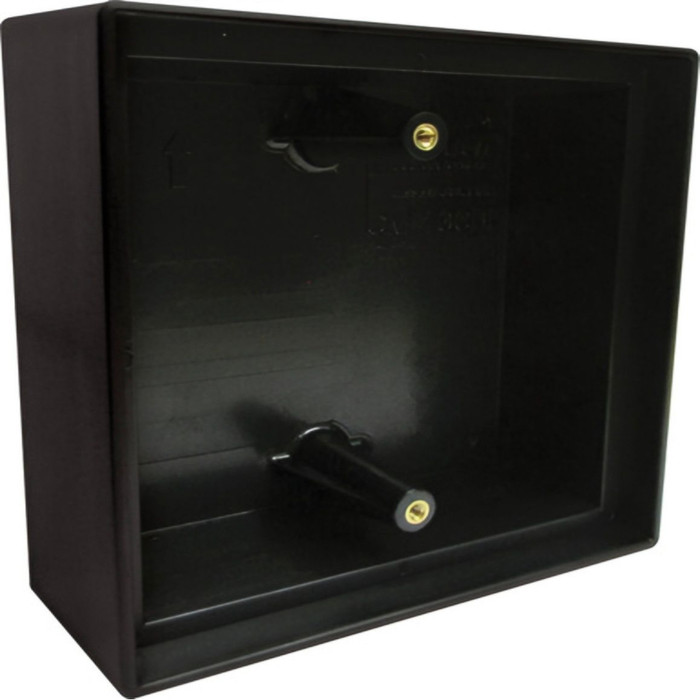

Camden CM-Series Jamb Box ABS Surface Mount
Camden offers the industry's most extensive range of ABS plastic and metal boxes, enclosures and trim rings for flush, semi-flush and surface mounting. ABS plastic models are flame and vandal resistant and are ideal for use with wireless door control transmitters.
Surface Box, Standard Depth Flame and Impact resistant black polymer (ABS) 1-3/4"W x 4-5/8"H x 1-1/4"D
Manufacturer Resources
Product Specs
- Subcategory:
- Switches/Push Buttons
- Warranty:
- 3 Year Limited
- Wireless Communication:
- No
- Commercial/Residential:
- Commercial
- Product Type:
- Enclosures and Mounting Boxes
- Electronic:
- No
- Product Group:
- Electronic Access Controls
- Product Subgroup:
- Parts and Accessories
- Product Dimension:
- 1-3/4"W x 4-5/8"H x 1-1/4"D
- Product Category:
- Electronic Access Control
- Department:
- Door Hardware
Camden Door Controls CM-23D – Frequently Asked Questions
1) Which Camden CM-Series surface box do I pick for a narrow jamb versus a double gang push plate?
Five shapes cover it. CM-23 is the narrow box in standard depth, CM-23D is the same narrow footprint in a deep version for devices that need more room behind the plate, CM-43CBL is a double gang standard box, CM-43CBLA is the double gang built for hands free switches, and CM-69S is a 6 inch round box in standard depth. Match the box to the plate you are mounting: narrow for a jamb-width switch, double gang for a wide push plate, round for a 6 inch round actuator.
2) Can a Camden ABS surface box be mounted on a wall or jamb without cutting into it?
That is exactly what a surface box is for. It fastens to the face of the jamb, mullion, or wall, so there is no back box cut-in and no coring of a hollow metal frame. Use it where the substrate is masonry, tile, or a frame you are not allowed to open up. If the finish surface can be cut and you want the switch flush, a flush or semi-flush box is the better choice; Camden builds those too.
3) Is the Camden CM-23 box plastic or metal, and will it hold up in a public corridor?
It is a black polymer ABS box, flame and impact resistant. That is the point of the plastic version in Camden's range: it takes an abuse hit in a public corridor and it does not shield an RF signal. For a high-abuse location where you want steel, Camden also makes metal boxes in the same family.
4) Can I mount a wireless door control transmitter in a Camden ABS jamb box?
Yes, and it is the reason to specify the ABS version over metal. Camden calls out the plastic models for use with wireless door control transmitters, because plastic does not attenuate the radio the way a steel box does. Note the box itself is not an electronic device and has no wireless electronics in it, it is the housing.
5) I am standardizing touchless actuators across a building. Which Camden surface box goes with hands free switches?
The CM-43CBLA is the double gang version specified for hands free switches, so that is the one to standardize on for touchless wave-to-open actuators. If some openings use a 6 inch round actuator instead, the CM-69S round box covers those in the same ABS family, which keeps one box line across the facility.
6) Is the Camden CM-Series jamb box a commercial-grade product or a residential one?
Commercial. It is built for commercial access control openings, housing push buttons and switches on jambs, mullions, and corridor walls, which is why the range runs to narrow jamb widths and double gang plates rather than residential device boxes.
