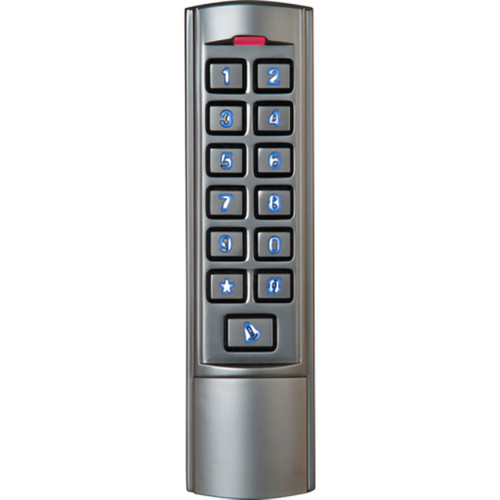

Camden CV-110SPK Slim Line Stand-Alone Proximity Reader and Keypad, Weather Resistant, Wiegand 26 Bit Output, Up to 2000 Users
Model: CM-CV-110SPK
Camden CV-110SPK Slim Line Stand-Alone Proximity Reader and Keypad, Weather Resistant, Wiegand 26 Bit Output, Up to 2000 Users
Camden CV-110SPK is a slim-line single door multifunction standalone...
Camden Door Controls
$280.00
$241.73
Camden CM-110SK Slim Line Surface Mount Keypad 2,000 Users
Camden surface mount keypads are rugged, weather and vandal-resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, 'Request to Exit' inputs, tamper alarm, and support of up to 20,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors, or other electrical devices.
| CM-110SK | |
|---|---|
| Voltage: | 12 VDC |
| Current Draw: | 60 mA |
| Contact Type: | (1) Form ‘C’ |
| Contact Rating: | 3 A @ 30 VDC |
| Wiegand Interface: | 8 bit burst |
| Temp Range: | -49°F/+140°F
(-45°C/+60°C) |
| Dimensions: | 6"H x 1-3/4"W x 1"D
(152mm x 45mm x 25mm) |
| Protection: | IP68 |
| Time Delay: | 0 – 99 seconds |
| Alarm Time: | 0 – 3 minutes |
Manufacturer Resources
Product Specs
- Product Subgroup:
- Readers, Keypads and Credentials
- Subcategory:
- Keypads and Readers
- Product Group:
- Electronic Access Controls
- Product Type:
- Access System Readers and Cards
- Series:
- CM Series
- Warranty:
- 3 Year Warranty
- Number of Users:
- 2000
- Number of Digits:
- 4
- Indoor or Outdoor Use:
- Indoor/Outdoor
- Features:
- Slim Line; Adjustable Door Output Time; Alarm Time; Door Open Time
- Product Category:
- Electronic Access Controls
- Department:
- Door Hardware
Camden Door Controls CM-110SK – Frequently Asked Questions
1) Can the Camden CM-110SK keypad be mounted outside on an exterior door?
Yes. The CM-110SK is rated for indoor and outdoor use, with an IP68 rating and an operating range of -49F to +140F (-45C to +60C), so it handles wash-down, driving rain and freezing weather on an exterior opening. The housing is cast metal with a metal backlit keypad, which is what carries the vandal resistance on an unprotected wall.
2) What power supply do I need for a Camden CM-110SK keypad?
12 VDC, drawing 60 mA. That is a small enough load that a typical door power supply running a mag lock or strike has ample headroom to feed the keypad off the same 12 VDC output.
3) Does the Camden CM-110SK need a panel or access control system to work?
No panel required. The CM-110SK is a standalone keypad, so it stores its own codes and switches its own lock relay with nothing upstream. It also carries a Wiegand interface (8 bit burst) if you later want it reporting to a controller instead of running the door on its own.
4) How many PIN codes can the Camden CM-110SK hold, and how long are they?
Up to 2,000 users, each with a 4 digit code. For a multi-family building or a mid-size commercial site that is enough to issue every tenant or employee their own code instead of sharing one, which is what lets you delete a single person's access when they leave rather than reprogramming the whole door.
5) Can I set how long the door stays unlocked after a valid code on the CM-110SK?
Yes, from 0 to 99 seconds. That range covers a quick 3 to 5 second strike release for a staff entry as well as a long hold for a loading door or an accessible entrance where someone needs more time to get through. Alarm time is separately adjustable from 0 to 3 minutes.
6) Will the Camden CM-110SK work with a push-to-exit button on the inside of the door?
Yes. The keypad has a Request to Exit input, so an interior push button, motion sensor or exit device switch wires into it and releases the lock through the keypad's own relay. That keeps egress on one set of contacts instead of running a second break-out path to the power supply.
7) Can a Camden keypad be used to trigger a gate operator or overhead door instead of a lock?
Yes. Camden surface mount keypads are used to activate or deactivate machinery, equipment, overhead doors, automatic doors and other electrical devices, not only locked doors. The CM-110SK's dry Form C contact rated 3 A at 30 VDC feeds the operator's start or command input, and the 0 to 99 second output time lets you send either a momentary pulse or a held signal depending on what the operator expects.
8) What is the difference between the Camden CM-110SK and the higher capacity Camden surface mount keypads?
Capacity is the split. The CM-110SK holds 2,000 users; other models in the Camden surface mount keypad range go up to 20,000. Everything else that decides the install, the cast metal housing, the Request to Exit input and the tamper alarm, is common across the surface mount family. Pick on how many individual codes the site needs: 2,000 covers a single building or a tenant fleet, 20,000 is campus and large portfolio territory.
9) Does the CM-110SK keypad have a tamper alarm if someone tries to pry it off the wall?
Yes, a tamper alarm is built in, and the alarm duration is settable from 0 to 3 minutes. Combined with the cast metal housing, that is the pairing you want on an exterior wall or an unsupervised entrance where the reader itself is the soft spot.
