Camden CM-550SK Surface Mount ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$240.00
$144.04

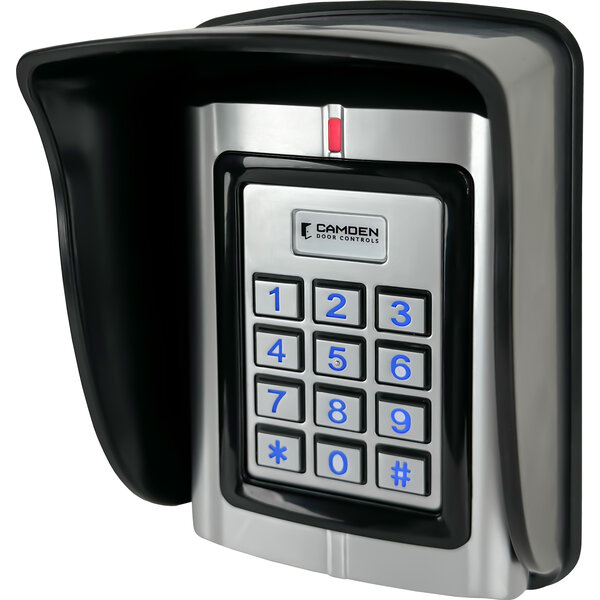

Camden CM-550SK Surface Mount Keypad 20,000 Users, (1) Form ‘C’ Relays, 12 VDC

Camden CM-550SK Surface Mount Keypad 20,000 Users, (1) Form ‘C’ Relays, 12 VDC

(No reviews yet) Write a Review

Model: CM-550SK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$240.00
$144.04
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CM-550SK Surface Mount Keypad 20,000 Users, (1) Form ‘C’ Relays, 12 VDCs


Camden surface mount keypads are rugged, weather and vandal-resistant standalone devices for control of electrically locked doors. Camden surface mount keypads feature cast metal housings with metal backlit keypads, 'Request to Exit' inputs, tamper alarm, and support of up to 20,000 users. They may also be used for activating or deactivating machinery, equipment, overhead doors, automatic doors, or other electrical devices.

Features

  • Up to 20,000 users
  • Backlit vandal resistant keypad
  • All metal construction
  • Weather resistant IP68 rated
  • Adjustable door delay time
  • Adjustable door open time
  • Tamper alarm output
  • Request to Exit device input
  • Alarm condition for door forced open and door ajar
  • 3 year warranty
  • CM-550SK: Surface Mount
CM-550SK
Voltage: 10 - 28V AC/DC
Current Draw: 100mA @ 12V
Contact Type: (2) Form 'C'
Contact Rating: 1 A @ 30 VDC
Temp Range: -40°F/+140°F
(-40°C/+60°C)
Dimensions: 5"H x 3-1/4"W x 1-1/8"D
Protection: IP68
Time Delay: 0 – 99 seconds
Alarm Time: 0 – 3 minutes

Product Specs

Product Subgroup:
Readers, Keypads and Credentials
Subcategory:
Keypads and Readers
Product Group:
Electronic Access Controls
Product Type:
Access System Readers and Cards
Series:
CM Series
Warranty:
3 Year Warranty
Number of Users:
20000
Number of Digits:
4
Indoor or Outdoor Use:
Indoor/Outdoor
Features:
Adjustable Door Output Time; Alarm Time; Door Open Time
Product Category:
Electronic Access Controls
Department:
Door Hardware

Camden Door Controls CM-550SK – Frequently Asked Questions

1) Can the Camden CM-550SK keypad be mounted outdoors on a gate or exterior door?
Yes. The CM-550SK is rated for indoor or outdoor use, with an IP68 weather rating, a cast metal housing and a metal backlit keypad. Operating range is -40F to +140F (-40C to +60C), so it holds up in northern winters and hot exterior walls. It surface mounts, so no back box cutout is needed in the door frame or wall.
2) Does the Camden CM-550SK keypad support a request-to-exit device and door position monitoring?
Yes. There is a Request to Exit input for a push button, motion sensor or exit device switch on the secure side, plus alarm conditions for door forced open and door ajar, and a tamper alarm output you can run back to a panel. Door open time and alarm time are both adjustable: time delay is 0 to 99 seconds and alarm time 0 to 3 minutes.
3) How many door codes can the Camden CM-550SK hold, and how long are they?
Up to 20,000 users, with 4 digit codes. That capacity suits a multi-family building or a facility where every tenant or staff member gets their own code rather than everyone sharing one. It is a standalone keypad, so codes are programmed at the device itself, not from a head-end system.
4) How much wall space does the Camden CM-550SK take up, and will it fit on a narrow door mullion?
The keypad measures 5 x 3-1/4 x 1-1/8 inches. At 3-1/4 inches across its narrow dimension it will not sit on a typical narrow aluminum storefront stile, so on a glass front entry plan on mounting it to the adjacent wall, a jamb or a mullion wide enough to take it. Since it surface mounts, you only need a wire pass-through and fasteners, not a recessed box.
5) Can the CM-550SK keypad be used to run something other than a door, like an overhead door or equipment?
Yes. Besides electrically locked doors, it is used to activate or deactivate machinery, equipment, overhead doors, automatic door operators and other electrical devices. The dry Form 'C' contacts give you both normally open and normally closed, so it drops into an operator's activation input or an equipment start circuit the same way it drops into a lock circuit, within the 1 A at 30 VDC contact rating.
6) Do I need a separate controller or access panel with the Camden CM-550SK?
No. It is a standalone device, so the code database and relay are in the keypad itself and no panel or software is required. That also means all the switching happens at the reader side of the door. If your facility standard calls for the relay to sit on the secure side of the opening, a keypad that is wired back to a separate controller is the better architecture.
7) Where can I get the wiring diagram and programming instructions for the Camden CM-550SK keypad?
Camden publishes both a full installation and programming manual and a spec sheet for the CM-550SK, and ZenSupply hosts them with the product. The manual covers wiring the relay outputs, the REX input and tamper, and the programming sequences for adding and deleting user codes and setting the door open and alarm times.
