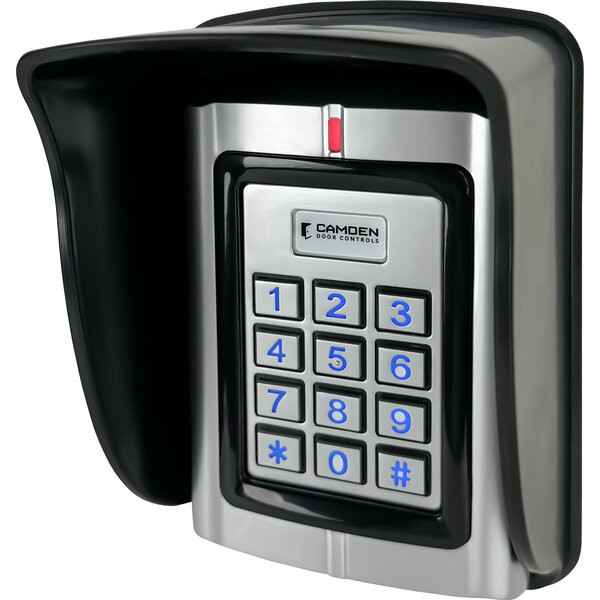

Camden CV-550SPK Keypad SMD Stand Alone VR Prox Reader 26-bit 20,000 Users

Camden CV-550SPK Keypad SMD Stand Alone VR Prox Reader 26-bit 20,000 Users

(No reviews yet) Write a Review

Model: CV-550SPK

In Stock (leaves warehouse same day if ordered before 3pm ET)

$300.00
$198.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CV-550SPK Keypad SMD Stand Alone VR Prox Reader 26-bit 20,000 Users

Camden's Next Generation CV-550SPK offers a complete single-door access control solution for high-traffic applications that demand weather and vandal resistant performance over years of operation.

The sturdy, cast metal housing and illuminated keypad with proximity reader supports up to 20,000 users, making it ideal for professional offices, schools, commercial and industrial applications.

The 26-bit Wiegand input and output allows the CV550SPK to also operate as a single or dual credential device, while the variety of configuration options make it compatible with most access systems.

Features

  • Batch card/tag enrollment
  • Cast metal, heavy duty construction
  • Backlit vandal resistant keypad
  • Weather resistant IP68 rated
  • Up to 20,000 users - Supports card, PIN, card + PIN (HID 26, 34 and 37 bit, HID and EM format)
  • 4 to 6 digit PIN code length
  • (1) Form 'C' relay output
  • Tamper alarm output
  • Request to exit device input
  • Door contact input
  • Adjustable door alarm time and door open time
  • Wiegand output for integration with access control systems
  • External 26 to 66-bit Wiegand card reader input
  • 3 year warranty

Specifications

Voltage: 12 VDC +/- 10%
User Codes: 20,000
IP Rating: 68
Idle Current: 25 mA
Contact Type: (1) Form 'C'
Contact Rating: 1 Amp @ 30 VDC
Alarm Output Load: 1 Amp @ 30 VDC
Ring Bell Load: 1 Amp @ 30 VDC
Card Read Distance: 2" (50mm) max.
Card Frequency: 125KHZ, EM and HID
Card Format: 22 to 66 Bit Wiegand
Keypad Format: 4 Bit, 8 Bit and Virtual Card Number
Temp Range: -49°F to 113°F (-45°C to 55°C)
Dimensions: 5-7/8"H x 4-1/8"W x 3-1/2"D
(150mm x 104mm x 90mm - with weather shield)

Manufacturer Resources

Product Specs

Product Subgroup:
Readers, Keypads and Credentials
Subcategory:
Keypads and Readers
Product Group:
Electronic Access Controls
Product Type:
Access System Readers and Cards
Series:
CM Series
Warranty:
3 Year Warranty
Number of Users:
20000
Number of Digits:
4
Indoor or Outdoor Use:
Indoor/Outdoor
Product Category:
Electronic Access Controls
Department:
Door Hardware

Camden Door Controls CV-550SPK – Frequently Asked Questions

1) Can the Camden CV-550SPK run a door on its own, or does it need a separate access control panel?
It works either way. The CV-550SPK is a stand alone single door controller with its own onboard database of up to 20,000 users, one Form C relay to drive the lock, a request to exit input and a door contact input, so it can run an opening with no panel behind it. It also has 26-bit Wiegand output, so you can wire it back to an existing access control system and use it as a reader instead.
2) Is the Camden CV-550SPK keypad reader rated for exterior mounting in a cold climate?
Yes. Cast metal housing, IP68 weather rating, and an operating range of -49F to 113F (-45C to 55C) mean it will sit outside through a northern winter. Camden lists it for indoor or outdoor use. The keypad is backlit and vandal resistant, which is why it gets specified on exterior entries at schools and industrial sites.
3) What credentials work with the Camden CV-550SPK prox reader?
It reads 125KHz proximity credentials in both EM and HID formats, including HID 26, 34 and 37 bit. Read range is up to 2 inches (50mm), so it is a present-the-card reader, not a long range one. Card formats from 22 to 66 bit Wiegand are supported.
4) Can I require both a card and a PIN at the door with the Camden CV-550SPK?
Yes. It supports card only, PIN only, or card plus PIN, so you can run a normal credential during business hours and force dual authentication on a sensitive opening. PIN length is configurable from 4 to 6 digits.
5) What power supply and lock can the Camden CV-550SPK switch?
Power it from 12 VDC plus or minus 10 percent; idle draw is 25 mA. The Form C relay is rated 1 Amp at 30 VDC, as are the alarm and ring bell outputs. That contact rating is fine for switching a small load directly, but most maglocks and electric strikes draw more than 1 amp inrush, so run those through a relay or a dedicated lock power supply rather than off the onboard contacts.
6) Can I add a second reader on the inside of the door to the Camden CV-550SPK?
Yes. It accepts an external Wiegand card reader input from 26 to 66 bit, so you can wire a second reader to it and run the opening as a dual credential door, in and out, off the one controller.
7) Does the Camden CV-550SPK report a door left propped open or someone prying at the reader?
Both. There is a door contact input with adjustable door open and door alarm timing for propped or forced door conditions, plus a tamper alarm output if the unit itself is attacked. The alarm output switches 1 Amp at 30 VDC.
8) Do I have to enroll 20,000 cards one at a time on the Camden CV-550SPK?
No. Batch card and tag enrollment is built in, so a property manager handing out a stack of sequential fobs to tenants can load them as a block instead of presenting each one. That is the practical difference between this and a small keypad when you are standing up a whole building.
