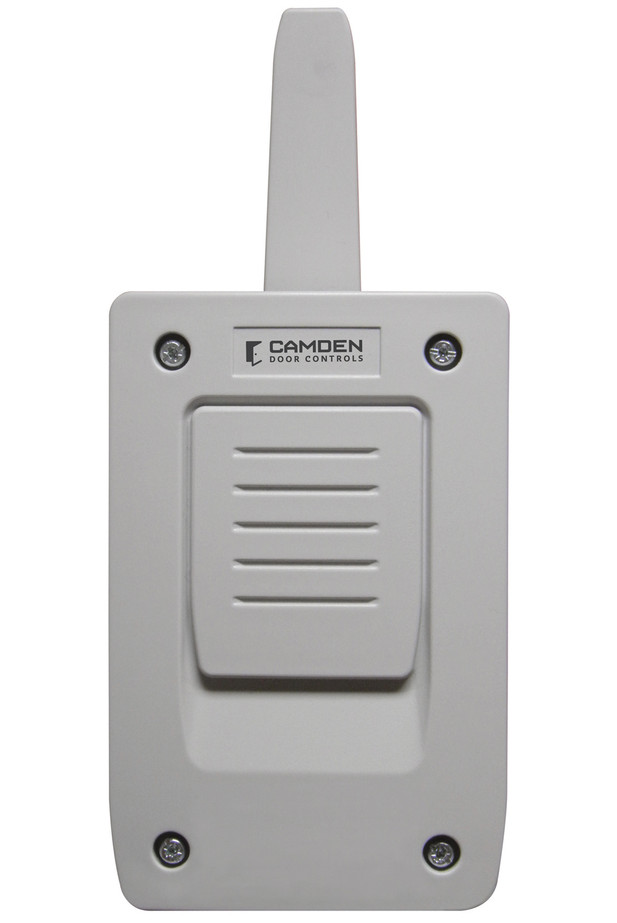

Camden CV-WRX4 Prox Receiver Wiegand Four Channel

Camden CV-WRX4 Prox Receiver Wiegand Four Channel

(No reviews yet) Write a Review

Model: CV-WRX4

In Stock (leaves warehouse same day if ordered before 3pm ET)

$354.00
$258.99
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Camden CV-WRX4 Prox Receiver Wiegand Four Channel

Camden's Wiegand receivers are designed to interface with existing access control systems for both long and short access applications. Pressing one of two buttons, users can control a barrier gate or overhead door up to 300ft. (100m) away. The same transmitter can be presented in front of a card reader, and operate as a conventional access credential. Identical 26-bit Wiegand ID numbers will be sent for both buttons and for the reader to manage multiple users in the access control database.

RESOURCES: CV-WR Series_Spec Sheet

Manufacturer Resources

Product Specs

Product Subgroup:
Access Management
Subcategory:
Parts and Accessories
Product Group:
Access Control
Product Type:
868 MHz Wireless System
Series:
CV-W Series
Warranty:
3 Year Warranty
Product Category:
Access Control
Department:
Door Hardware

Camden Door Controls CV-WRX4 – Frequently Asked Questions

1) How far away will the Camden CV-WRX4 receiver pick up a transmitter?
The CV-WRX4 Wiegand receiver reads its transmitters at up to 300 ft (100 m), so a driver can open a barrier gate or overhead door from inside the vehicle without lowering a window. That range is line-of-sight radio at 868 MHz, so mount the receiver where the antenna has a clear view of the approach lane rather than buried in a metal cabinet.
2) Will the Camden CV-WRX4 work with my existing access control panel, or do I need Camden software?
No separate software or head-end is needed. The CV-WRX4 is a Wiegand output receiver built to interface with an existing access control system, so it wires to a reader input on the panel you already have and the credentials are managed in that panel's database.
3) What Wiegand format does the Camden long range receiver send to the panel?
It sends a 26-bit Wiegand ID number, which is the most widely supported format on access control panels. Both fob buttons and the card read report the same 26-bit ID, so one user equals one credential record in the database.
4) If I give a tenant a Camden transmitter for the gate, do I have to issue them a separate prox card for the door?
No. The same transmitter that opens the gate at range can be presented in front of a card reader and works as a conventional access credential. One fob covers both the drive-up barrier and the walk-up reader, and it reports the same ID number either way, which is what makes this attractive for multi-family and parking garage fleets.
5) What does the four channel part of the CV-WRX4 mean for a garage with a gate and an overhead door?
Four channels means the receiver supports up to four separate outputs, so one unit can serve more than one barrier point. On the transmitter side, pressing one of two buttons controls a barrier gate or overhead door, which lets a single fob address different openings rather than needing a fob per device.
6) Do both buttons on the Camden fob create two different users in my access database?
No, and that is the point of the design. Identical 26-bit Wiegand ID numbers are sent for both buttons and for the card read, so the panel sees one credential per user no matter which button was pressed. You enroll the holder once and manage multiple users cleanly instead of tracking two card numbers per person.
7) What else do I need to order with the Camden CV-WRX4 receiver to make the system work?
The receiver is only half the system. You also need Camden 868 MHz transmitters for each user, since the receiver has nothing to read without them, plus the gate or door operator and the access control panel that accepts the 26-bit Wiegand output. Budget one fob per user or vehicle when you spec the job.
8) Which Camden receiver line covers both long range vehicle access and short range door access?
The CV-W Series Wiegand receivers cover both. They are built for long and short access applications on the same 868 MHz wireless system, so the same product family handles a drive-up gate at distance and a door where the user presents the fob at a reader.
