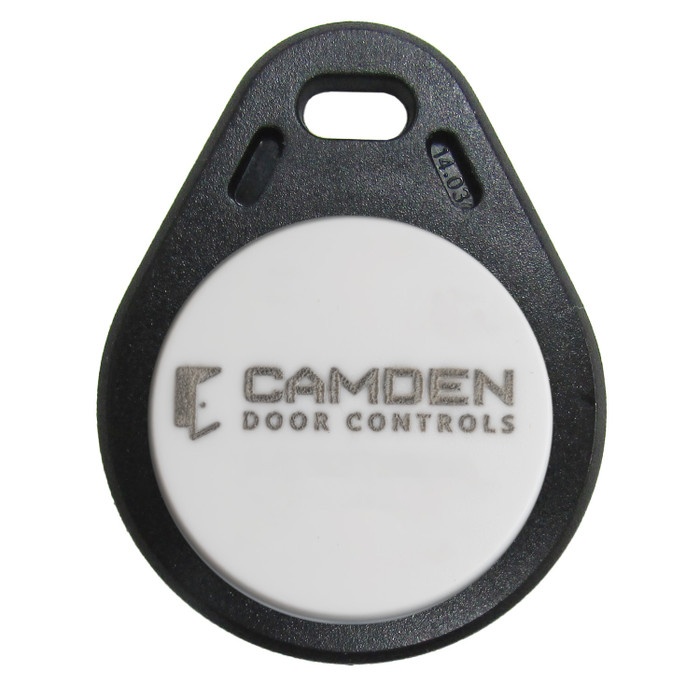

Camden CV-KTH Prox Key Tag HID Format Pack of 25

The CV-KTH is an HID format proximity key tag running 125 MHz with 37-bit Wiegand output, so it reads on equipment set up for that HID protocol and bit format. If your readers are programmed for a different bit format (26-bit, for example), the credential number won't decode correctly even though the tag is 125 MHz. Check the bit format your panel is configured for before ordering.

Yes. The CV-KTH tag is part of Camden's CV Series credential line, which is built to work across Camden's access control reader range. If you're already running Camden CV readers on 125 MHz HID protocol, the tag is the matching fob credential.

Twenty-five tags per pack. That's the order unit, so a 40-door building issuing one credential per tenant takes two packs. Fobs are typically bought in blocks like this because they get lost and replaced over the life of a building.

Same credential technology, different form factor. The CV-KTH is a key tag, so it rides on a keyring and takes the abuse of a pocket or a tool belt, which is why contractors and maintenance staff usually get tags. A prox card is flat and carries a photo ID or a badge clip, which is why office and institutional tenants usually get cards. Camden's CV Series covers both, and if your readers are on 125 MHz HID protocol at 37-bit Wiegand, you can mix tags and cards on the same system.

Prox key tags on 125 kHz HID protocol are read-only credentials, encoded at the factory. You enroll each tag into your access control software by presenting it at a reader or an enrollment station and assigning it to a user. There is nothing to write to the tag itself.
