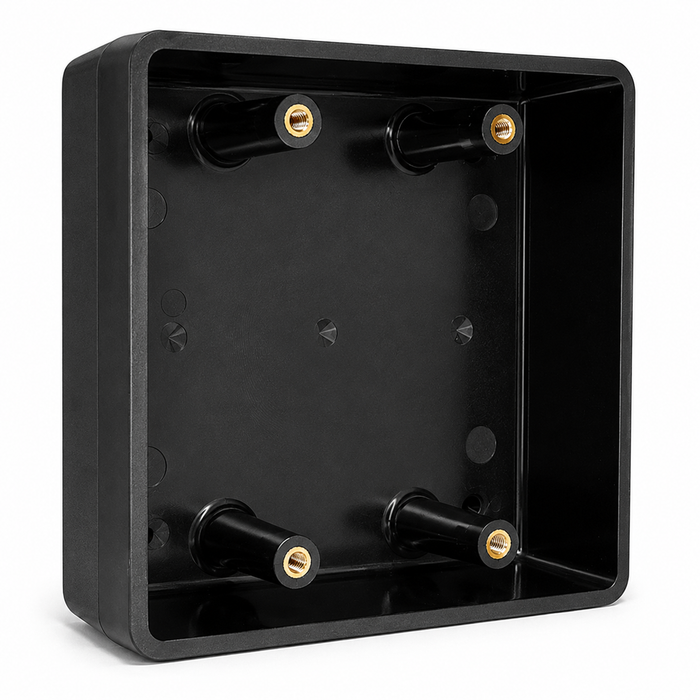

BEA 10MSBOXDGSM Double Gang Surface Mount Box for Magic Switch MS31, MS41 & MS51

BEA 10MSBOXDGSM Double Gang Surface Mount Box for Magic Switch MS31, MS41 & MS51

(No reviews yet) Write a Review

Model: 10MSBOXDGSM

In Stock (leaves warehouse same day if ordered before 3pm ET)

$47.32
$34.74
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

BEA 10MSBOXDGSM Double Gang Surface Mount Box for Magic Switch MS31, MS41 & MS51

Professional Mounting Solution for Magic Switch Systems

The BEA 10MSBOXDGSM is a double gang surface mount box specifically designed for MS31, MS41, and MS51 Magic Switch installations. This commercial-grade mounting accessory provides secure surface mounting capability for BEA Magic Switch sensors in applications where recessed installation is not feasible. The double gang configuration accommodates multiple switch installations in a single mounting location.

Professional Features & Benefits

  • Magic Switch Compatibility: Specifically designed for MS31, MS41, and MS51 Magic Switch models for seamless integration.
  • Double Gang Configuration: Accommodates multiple switch installations in a single mounting location for efficient space utilization.
  • Surface Mount Design: Enables installation on existing surfaces without requiring recessed preparation or wall modification.
  • Commercial-Grade Construction: Built for demanding commercial access control applications requiring reliable mounting solutions.
  • Professional Installation: Provides secure mounting platform for consistent Magic Switch performance and alignment.

Technical Specifications

  • Technology: Microwave Doppler Radar
  • Detection Mode: Motion (bidirectional), Toggle or Timed Mode
  • Sensing Zone: 2 in - 24 in (adjustable)
  • Hold Time: 1 s - 30 s
  • Alert Settings (Audible): Silent Mode or Signal Mode
  • Alert Settings (Visual): Blue (Standby); Green (Activation)
  • Supply Voltage: 12 - 24 VAC / VDC or 5 VDC
  • Current Consumption: < 2.8 W
  • Temperature Range: -22 deg. F - 158 deg. F
  • Enclosure Rating: NEMA 4 / IP65
  • Relay: 1-Form C Solid State Relay; 1 A; 30 VAC / VDC (max)
  • Dimensions (Single Gang): 2.75 in (W) x 4.5 in (H) x 0.98 in (D)
  • Dimensions (Double Gang): 4.5 in (W) x 4.5 in (H) x 0.98 in (D)
  • Dimensions (Jamb): 1.68 in (W) x 4.5 in (H) x 0.98 in (D)
  • Wire Harness Length: 12 in
  • Material: Stainless Steel (faceplate) / ABS (center)

Installation & Operation

This mounting box is designed for use with compatible BEA Magic Switch sensors. Refer to the parent device installation instructions and manufacturer documentation for proper integration. Ensure compatibility with existing hardware before installation.

Professional Applications

  • Commercial Building Access Control Systems
  • Healthcare Facility Automatic Door Controls
  • Retail Store Entry Systems
  • Educational Institution Safety Systems
  • Industrial Facility Access Points
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose BEA Quality?

BEA mounting accessories deliver professional-grade reliability with commercial construction designed for demanding access control applications. Engineered specifically for Magic Switch compatibility, this mounting box ensures proper sensor alignment and secure installation for dependable automatic door system performance.

Manufacturer Resources

BEA Product Catalog

Product Specs

Product Type:
Mounting Box
Subcategory:
Parts and Accessories
Commercial/Residential:
Commercial
Electronic:
Yes
Product Group:
Electronic Access Controls
Product Subgroup:
Parts and Accessories
Product Category:
Electronic Access Control
Department:
Door Hardware

BEA 10MSBOXDGSM – Frequently Asked Questions

1) What does the BEA 10MSBOXDGSM double gang surface mount box actually do, and is the Magic Switch sensor included with it?
The 10MSBOXDGSM is the mounting enclosure only, not a switch. It gives you a surface mount housing for BEA Magic Switch sensors in the MS31, MS41 and MS51 families where you cannot cut into the wall for a recessed back box. Order the Magic Switch itself separately; the box is the platform it mounts to and holds it in alignment.
2) Will the BEA 10MSBOXDGSM surface mount box work with an MS41 Magic Switch?
Yes. BEA lists the 10MSBOXDGSM as built for MS31, MS41 and MS51 Magic Switch models. If your switch is one of those three, the box is the matched surface mount housing. For any other BEA sensor family, this is not the right enclosure.
3) Should I use a surface mount box or recess the Magic Switch into the wall?
Recessed is the cleaner look and the usual choice on new construction where the back box goes in before the wall closes. Surface mount is what you use on a retrofit: existing tile, block, glass surround, or any wall you are not permitted to open. That is exactly the case the 10MSBOXDGSM covers, mounting on the existing surface with no recessed prep or wall modification. On a retrofit in an occupied healthcare or retail space, the surface box usually wins on schedule alone.
4) Why would I pick the double gang Magic Switch box instead of the single gang one?
Space for two devices at one location. The double gang configuration takes multiple switch installations in a single mounting point, which is what you want when an opening needs a pair of actuators, or a switch plus a second device, ganged together instead of two separate boxes. Its 4.5 in width against the single gang 2.75 in is the difference. If you are only mounting one Magic Switch and nothing else, the single gang keeps the footprint smaller.
5) What is the BEA Magic Switch mounting box made of, and will it hold up in a hospital or a high traffic entrance?
Construction is a stainless steel faceplate with an ABS center. Stainless on the exposed face is what you want on a healthcare, school or public entry actuator location, where the plate takes hand contact all day and gets wiped down with cleaning chemicals. BEA rates the Magic Switch assembly to NEMA 4 / IP65 with an operating range of -22 deg. F to 158 deg. F.
6) Can a BEA Magic Switch in this surface mount box be installed outside or in a wash-down area?
The Magic Switch assembly carries a NEMA 4 / IP65 enclosure rating and an operating range of -22 deg. F to 158 deg. F, which covers exterior entrances, unconditioned vestibules and areas subject to hose-directed water. Cold storage and loading dock entries fall inside that temperature band.
7) How much wire do I get at the Magic Switch, and what power does it need at the box location?
Plan for a 12 in wire harness off the device, so bring your conductors into the box location rather than expecting to reach a junction a foot or more away. Supply is 12 to 24 VAC or VDC, or 5 VDC, drawing under 2.8 W. The output is a 1-Form C solid state relay rated 1 A at 30 VAC / VDC maximum, so it dry-contacts into a door operator input rather than switching any load itself.
8) How close does someone have to get to a BEA Magic Switch to trigger the door, and can I change that?
The sensing zone is adjustable from 2 in to 24 in, so you can tune it tight for a touchless actuator that should not fire on people walking past, or open it up where users approach with full hands or from a wheelchair. Hold time is adjustable 1 s to 30 s, and it runs in motion (bidirectional), toggle or timed mode. There is a silent or signal audible setting plus a blue standby / green activation indicator, which is how the user knows it registered without touching anything.
9) Is the BEA 10MSBOXDGSM a commercial part or a residential one, and is there more than one version to choose from?
Commercial-duty, and there is a single configuration to order: model 10MSBOXDGSM, the double gang surface mount version. No finish or size choices to specify. If you need the narrower single gang or the jamb profile instead, that is a different BEA part number.
