Adams Rite 8800 Narrow Stile Exit Device Buying Guide: Specs & Trim

By ZenSupply Locksmith Desk · Reviewed by ZenSupply technical staff · Last updated June 11, 2026

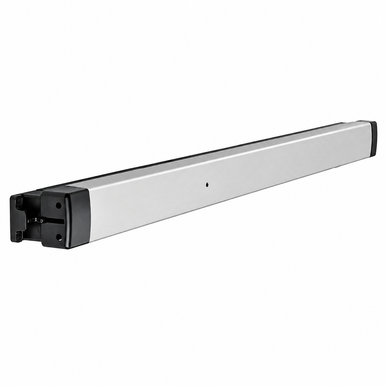

What is the Adams Rite 8800 and where is it used?

The Adams Rite 8800 is a narrow stile rim exit device engineered specifically for aluminum storefront and entrance doors. Its compact chassis fits stile widths down to roughly 1-3/4", where wide-stile devices like the Von Duprin 99 physically cannot mount.

You'll see it on retail storefronts, office building entries, medical office buildings, and any commercial opening built from extruded aluminum frame systems. The 8800 is the spec default when an architect calls out "narrow stile aluminum door with panic hardware."

Adams Rite is part of Assa Abloy. The 8800 sits alongside the 8400 (mortise exit) and 4900 deadlatch in the narrow-stile lineup, and it competes head-to-head with similar devices in the rim panic exit devices category.

What functions and ANSI grade does the 8800 carry?

The 8800 is ANSI/BHMA A156.3 Grade 1 — the highest grade for exit devices, requiring 500,000 cycles minimum per A156.3. It's UL 305 listed for panic hardware, and the 8800-F variant is labeled for use in fire door assemblies tested to UL 10C, with assembly ratings up to 3 hours depending on door and frame construction.

Per NFPA 80, dogging is prohibited on fire-rated exit devices. The 8800-F ships without mechanical dogging; if you need hold-open behavior on a fire opening, specify electric latch retraction with fire alarm release.

Functions available across the family cover exit-only, night latch (key retracts latch for entry), classroom (key locks/unlocks outside trim), and dummy pull configurations — all delivered through the push bar exit devices chassis paired with appropriate trim.

What trim options are available for the 8800?

Trim is where the 8800 spec gets real. The chassis is one decision; the outside trim is another. Adams Rite's primary trim families:

• 4500 series — lever and paddle trim for entry by authorized users with a key cylinder.
• 4900 series — deadlatch paddle trim, common night latch pairing.
• Dummy pulls — exterior pull only; entry is by key or access control elsewhere on the opening.
• Blank escutcheon — exit-only openings, no exterior operation.

Verify cylinder prep (typically 1-1/4" mortise cylinder) and handing before ordering. See the exit device trim catalog for the full matrix. For the chassis itself, the Adams Rite end cap for 8700/8800/3700 is a stocking item worth carrying.

Choose Adams Rite 8800 when:

• The opening is aluminum storefront with a stile width under approximately 2-1/4".
• You're matching existing Adams Rite 4900 deadlatch trim or 4500 lever trim on the entrance suite.
• The architect specified narrow stile or "storefront" panic hardware explicitly.
• You need a clean, low-profile push pad that doesn't dominate a glass-and-aluminum aesthetic.

Choose Von Duprin 99 when:

• The door is hollow metal or wood with a stile width of 5" or greater.
• The spec calls for the institutional-grade benchmark — schools, hospitals, government.
• You're integrating electric latch retraction (QEL) into a larger Allegion access control package.
• Long-term parts availability and field-tech familiarity are decision factors.

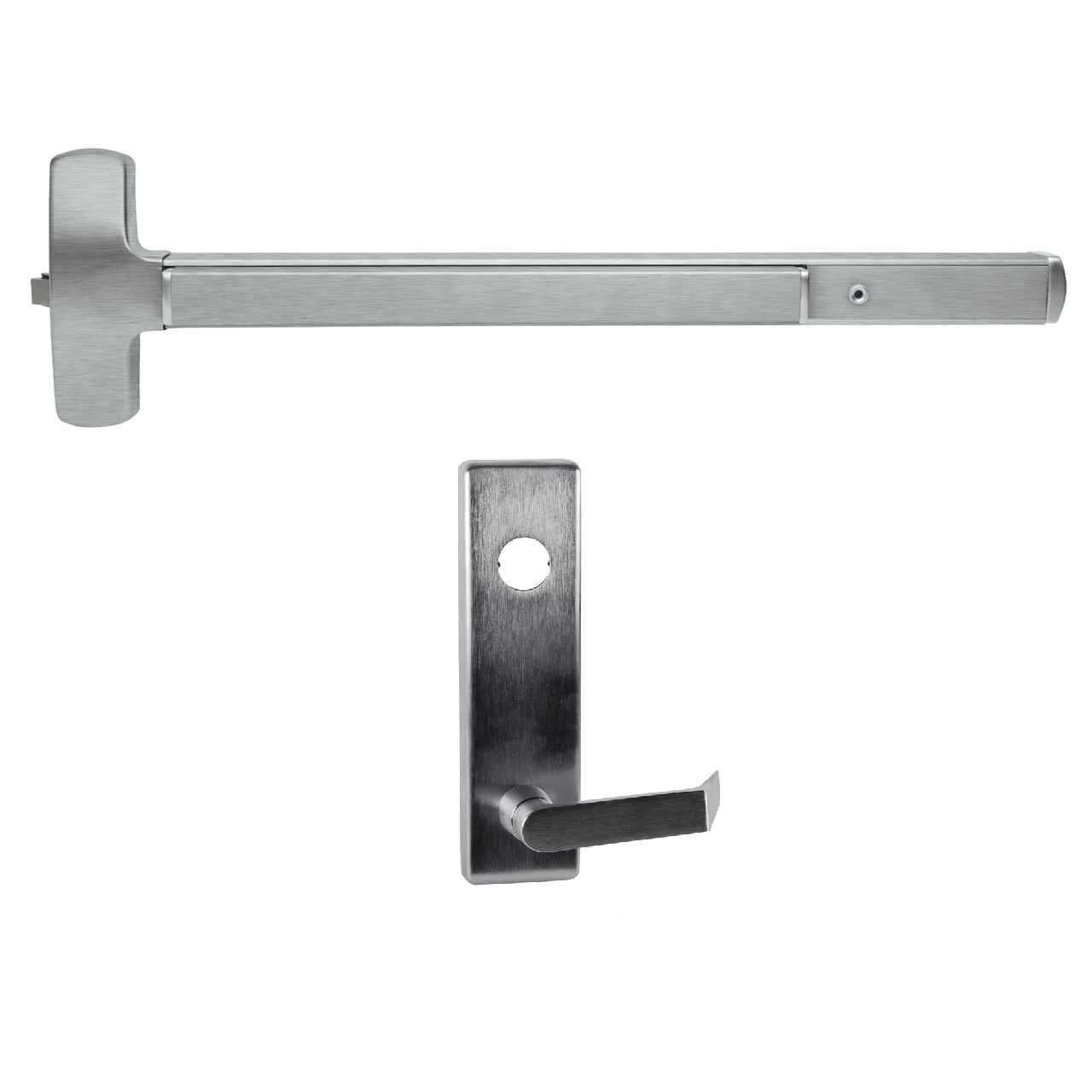

Choose Falcon 25 when:

• The budget is value-grade but you still need ANSI Grade 1 and UL 305 listing.
• The opening is wide stile (hollow metal or wood), not narrow stile aluminum.
• You want Allegion parts compatibility at a lower price tier than Von Duprin.
• The application is back-of-house, stockroom, or secondary egress where aesthetics are not driving the spec.

How does the Adams Rite 8800 compare to the Von Duprin 99 and Falcon 25?

These three devices solve the same code requirement — panic egress on a commercial door — but they don't compete on the same openings. The 8800 owns aluminum storefront. The Von Duprin 99 and Falcon 25 are wide-stile devices for hollow metal and wood doors. Specifying a 99 on a narrow aluminum stile is a non-starter — the chassis won't fit.

On cycle life and grade, all three meet A156.3 Grade 1 (500,000 cycles minimum). On price tier, the Von Duprin 99 carries a meaningful premium over Falcon 25, and the 8800 typically lands between the two depending on trim and finish. On parts ecosystem, Von Duprin has the broadest field-tech familiarity; Adams Rite's strength is its tight integration with its own 4500/4900 trim and 4900 deadlatch family already on most storefront entries.

For mixed projects — say, an office building with aluminum storefront at the lobby and hollow metal at stairwells — it's normal to spec the 8800 at the entrance and a Von Duprin 99EO or 98EO at the back-of-house openings.

Need narrow stile exit devices now? Browse our rim panic exit device inventory — locksmith-friendly stock with trim, strikes, and parts in one cart.

What electrified options and strikes work with the 8800?

Electrified configurations of the 8800 cover electric latch retraction (ELR), request-to-exit (RX) signaling, and latch-bolt monitoring. ELR variants integrate with access control to allow remote unlock for push/pull egress during business hours, then re-secure after hours.

For the strike side, the 8800 pairs with surface-mount rim strikes for non-electrified openings and electric strikes such as HES 9600/9700-series for access-controlled aluminum frames. Check the electric strikes catalog for compatibility — narrow frame depth matters on aluminum storefront, and not every strike fits.

Power supply sizing is a real consideration with ELR. Inrush current on latch retraction is significant; size the supply accordingly and run dedicated home runs for each device.

What are the sizing and door prep requirements?

Standard 8800 device lengths cover doors from approximately 36" to 48". For oversized doors, verify with the manufacturer's template before ordering. Minimum stile width is around 1-3/4" — measure the actual extrusion, not the nominal door width.

Door prep follows Adams Rite's published templates. The chassis mounts to the lock stile; the strike mounts to the strike jamb or the active leaf on pairs. For pairs, the inactive leaf typically gets a 4900-series deadlatch or surface bolts depending on the egress strategy.

NFPA 80 clearance limits apply on fire-rated openings: bottom clearance generally 3/4" maximum, top and sides 1/8" maximum, with specific UL listings governing tighter gaps. Verify against the door and frame label, not assumed values. Stock common parts from the exit device parts and accessories bin to avoid second trips.

How do you pair the 8800 with closers and thresholds?

Aluminum storefront entrances typically run an overhead concealed or surface closer matched to the door weight and opening width. LCN 4040XP and 4041 surface closers are common on storefront when the header allows, with concealed overhead closers used when aesthetics require a hidden closer.

Per ADA 2010 §404.2.9, interior hinged doors (excluding fire doors) have a 5 lbf maximum opening force; ADA does not set an opening-force maximum for exterior doors. Per §404.2.5, thresholds on accessible-route doors are limited to 1/2" maximum. Browse surface mounted door closers for matched pairings.

How does it compare in a spec table?

Brand/Series	BHMA Grade	Cycle Rating	Best For	List Price Tier
Adams Rite 8800	Grade 1	500,000 minimum per A156.3	Narrow stile aluminum storefront	Mid-High
Von Duprin 99EO	Grade 1	500,000 minimum per A156.3	Institutional wide-stile, schools/hospitals	High
Von Duprin 33A-EO	Grade 1	500,000 minimum per A156.3	Allegion narrow-stile alternative	High
Falcon 25	Grade 1	500,000 minimum per A156.3	Value-grade wide-stile commercial	Value

How do you order the right 8800 configuration?

Specify in this order: (1) function — exit only, night latch, classroom, or dummy; (2) fire rating — 8800 panic-only or 8800-F fire-labeled; (3) device length to match door width; (4) handing; (5) trim family (4500 or 4900) and trim function; (6) finish (628 clear anodized, 313 dark bronze, and 710 are common storefront finishes); (7) cylinder prep and keyway; (8) electrified options if any.

Lead times on standard finishes and configurations are generally short; custom finishes and electrified ELR builds run longer. Confirm before quoting installation dates. Shop the full rim panic exit device lineup for current stock.
