Norton Rixson Door Closers Buying Guide: Series, Specs & Applications

By ZenSupply Facility Solutions Team · Reviewed by ZenSupply technical staff · Last updated May 28, 2026

Norton and Rixson are both Assa Abloy brands, sold together as Norton Rixson. Norton covers surface and overhead concealed closers; Rixson handles floor closers and pivots. For facility managers spec'ing replacements across a portfolio, the lineup gives you one source for nearly every closer condition — surface, concealed, floor, fire-rated, and low-energy operator.

This guide breaks down the series, arm choices, ADA and fire-code rules, and where Norton Rixson fits against LCN and dormakaba — the two brands you'll usually be comparing on a closer schedule.

What are the main Norton Rixson door closer series and how do they compare?

The Norton lineup is organized by duty cycle and mounting. Surface-mounted heavy-duty 7500 and 8500 sit at the top for high-traffic Grade 1 openings. The 1600 medium-duty handles interior offices and light commercial. The 9500 Series covers electromechanical hold-open and smoke-release functions. Cam-action and low-force surface closers are the right line for ADA-sensitive interior openings.

Rixson contributes the 27 and 28 floor closer families plus center-hung and offset pivots — what you specify when the door has no top rail to mount surface hardware on. For overhead concealed installations, the Norton Rixson 7900 Series and 91/93 families handle architectural openings up to roughly 250 lbs.

Browse the full Norton Rixson catalog and adjacent options through our commercial door closer category, or jump straight to surface mounted door closers.

Which Norton Rixson closer is best for heavy-traffic commercial openings?

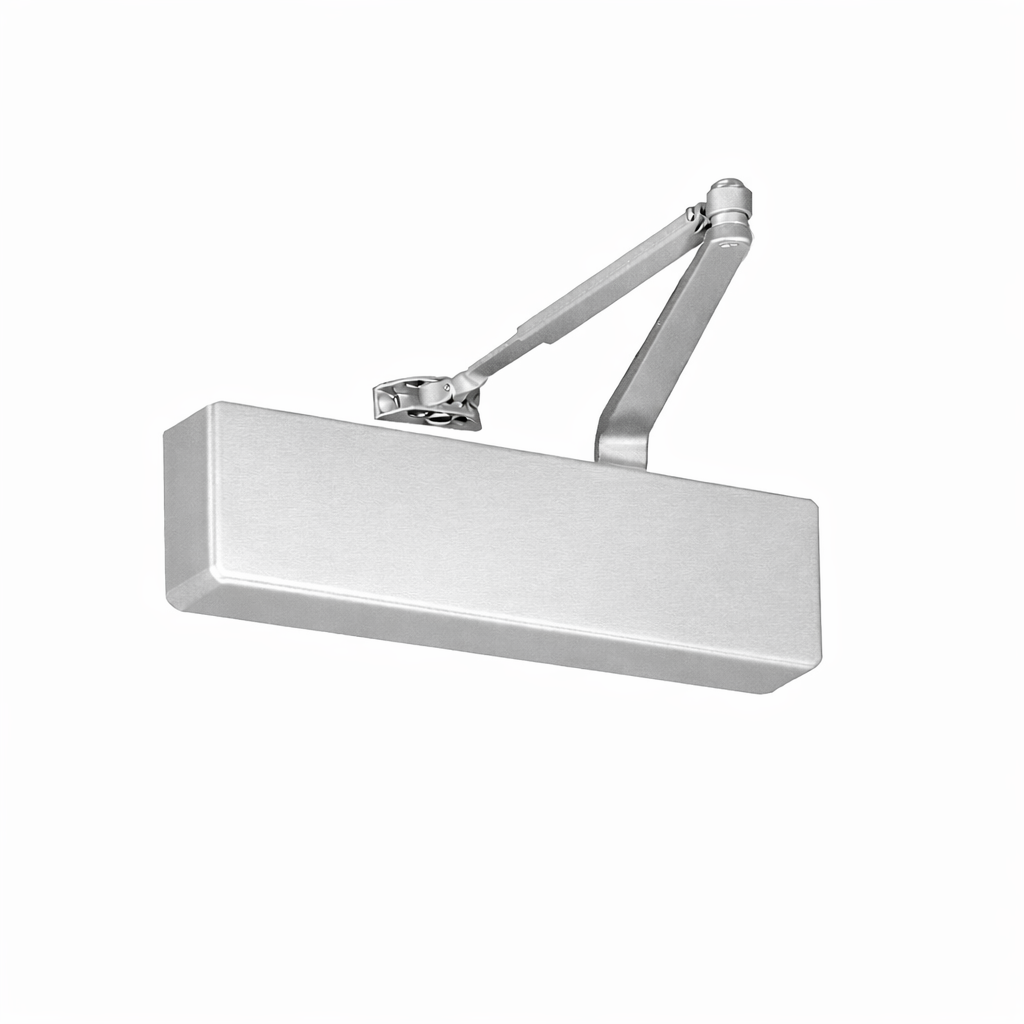

For exterior entrances, stairwells, and corridor doors that see institutional cycling, specify the Norton 7500 Series. It meets ANSI/BHMA A156.4 Grade 1. Cast iron body, full hydraulic adjustment, and broad arm options (regular, parallel, hold-open, EDA) make it the workhorse choice.

For openings with abuse exposure — schools, transit, public restrooms — the 8500 adds reinforced arm and security cover. Both are Grade 1; pick by aesthetic and abuse profile, not cycle count. Shop our heavy duty door closers selection for cross-brand comparison.

Heavy-duty vs medium-duty vs light-duty Norton Rixson closers — what changes?

The split comes down to ANSI grade and duty rating. Norton 7500/8500 are Grade 1 per ANSI/BHMA A156.4. The 1600 family is also Grade 1 (smaller spring sizes, lighter cast). Light-duty closers in the lineup target storeroom and closet doors with minimal traffic.

Decision rule: any door on an accessible route, exterior, fire-rated, or with traffic above ~100 cycles/day gets Grade 1. Interior office and tenant doors at low traffic can drop to medium duty closers. Closets and utility doors only — go light duty closers.

What is the difference between regular arm, parallel arm, and slide-track closers?

Regular arm: closer mounts on the pull side of the door, arm projects perpendicular to the door face. Strongest mechanical advantage, but the arm is visible and exposed to abuse. Use it when aesthetics don't matter and you want the most efficient closer action.

Parallel arm: closer on the push side, arm folds parallel to the door when closed. Less exposed, cleaner look, slightly less mechanical advantage — typical exterior storefront and corridor application. See our parallel arm closers.

Slide-track (track arm): arm rides in a track mounted to the door or frame. Cleanest aesthetic, lowest profile, common on cam-action closers and ADA-sensitive openings because opening force can be tuned lower. Compare regular arm configurations and slide track arm closers.

Are Norton Rixson door closers ADA compliant?

Yes — when correctly sized and adjusted. ADA 2010 §404.2.9 caps opening force at 5 lbf for interior hinged doors. Fire doors are not subject to the 5 lbf max under ADA; IBC/NFPA 101 generally allow up to 15 lbf for fire doors. Exterior doors have no ADA-specified maximum, but state/local code or accessibility standards often impose 8.5 lbf.

To hit 5 lbf, downsize the spring (size 1-3 typical for interior) and use a slide-track or cam-action arm. Cam-action closers are purpose-built for this. Adjustment matters as much as model — a Grade 1 closer set to spring size 5 won't pass ADA on an interior door.

Need closers shipped to a job this week? Browse our surface mounted door closer inventory — schedule-ready stock with full arm and finish options for facility managers and GCs.

When should I specify a delayed-action or hold-open Norton Rixson closer?

Delayed-action: the closer pauses in the open position for 10-30 seconds before closing. Specify on healthcare openings, accessible routes with wheelchair/gurney traffic, and any door where the user needs unhurried passage. Adjustable via separate valve on the closer body. See delayed action closers.

Mechanical hold-open arm: door stays open at a set angle until manually pushed closed. NEVER on fire-rated openings — NFPA 80 prohibits mechanical hold-open on fire assemblies. Fine on non-rated office, conference, and corridor doors. See hold-open closers.

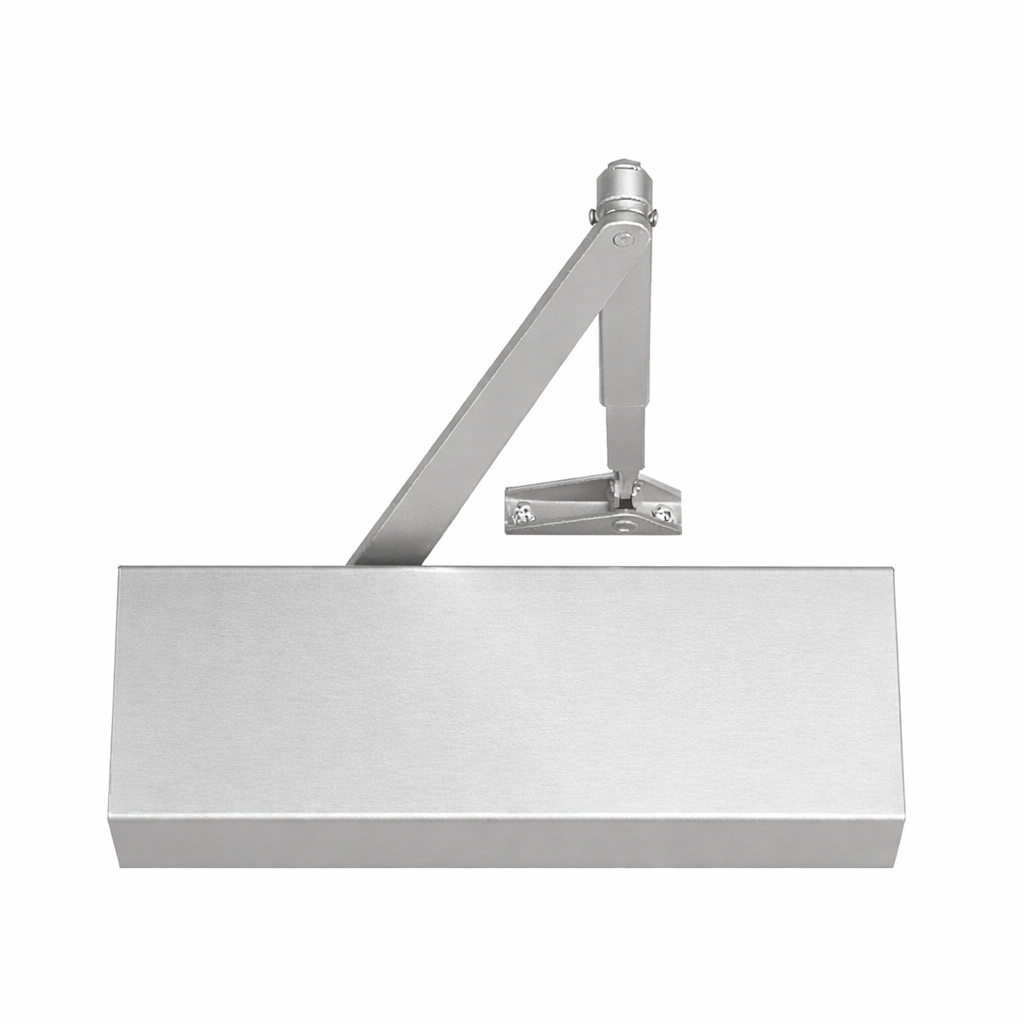

Electromagnetic hold-open (Norton 9500/SE families): door holds open electronically and releases on fire alarm signal. Permitted on fire-rated openings under NFPA 80 because the smoke detector or alarm system drops the hold. This is the right answer for fire-rated openings that need to stay open during normal use. Coordinate with fire and life safety hardware.

Concealed and overhead Norton Rixson closer applications

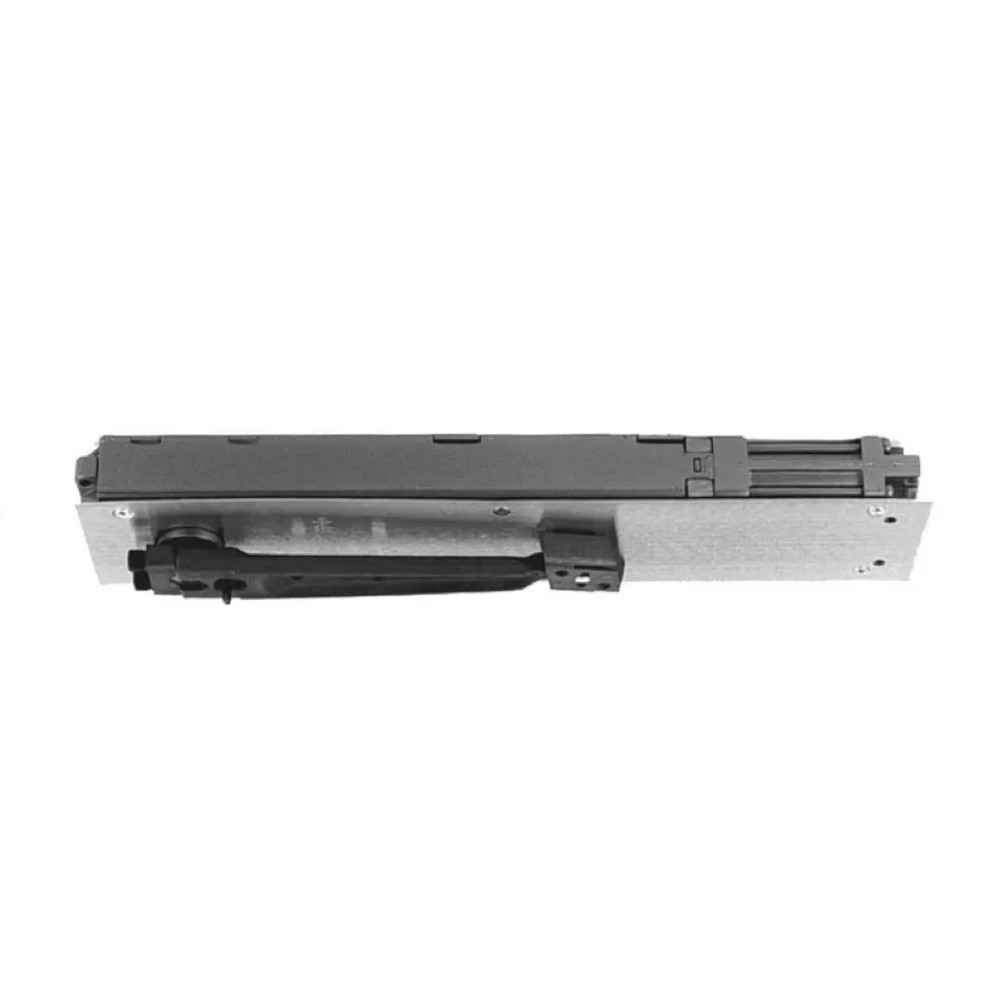

When the door schedule calls for clean sightlines — lobbies, executive offices, hospitality — go concealed. Norton Rixson 91/93/7900 Series overhead concealed closers mount inside the frame head, completely hidden when the door is closed. Capacity runs to about 250 lbs depending on series. Browse overhead concealed door closers.

For all-glass storefronts, balanced doors, and monumental entrances, Rixson 27 floor closers are the spec standard — they take the place of bottom pivots and provide hydraulic closing from below. See floor closers. Pair with overhead stops and holders when the swing needs to be limited.

Can Norton Rixson closers be used on fire-rated openings?

Yes — closers are required on fire-rated assemblies (NFPA 80 mandates self-closing and self-latching on fire doors). Any Norton Rixson closer used in this application must be listed for use in UL 10C-rated assemblies. Note: UL 10C tests the door assembly, not the closer itself; the closer is listed for use in those assemblies.

Two rules to remember: no mechanical hold-open arms on fire-rated doors (electromagnetic hold-open tied to the alarm is fine), and the closer must drive the door fully closed and latched at the rated opening force.

How does Norton Rixson compare to LCN and dormakaba?

All three are Grade 1 capable and spec'd interchangeably on most schedules. The differences are real but narrower than marketing implies.

LCN (Allegion) — the LCN 4040XP is the spec-standard heavy-duty surface closer in North American institutional work. Cast iron, manufacturer-tested service life well beyond the A156.4 Grade 1 threshold, broad arm and accessory ecosystem. The LCN 1461 covers medium-duty.

Norton Rixson — closer parity on heavy-duty surface closers, advantage on floor closers (Rixson is the spec-standard floor closer brand) and overhead concealed architectural applications. Sentronic/electromagnetic hold-open is well-developed.

dormakaba — TS 93 cam-action surface closer is the cleanest aesthetic and best for ADA-sensitive interior work where low opening force matters. ITS96 overhead concealed is competitive with Norton 7900. List pricing typically runs a modest premium over comparable LCN/Norton.

Choose Norton Rixson when:

• Project already specifies Assa Abloy openings (Sargent, Yale, Corbin Russwin) — single-source documentation.
• You need floor closers — Rixson 27 is the institutional default.
• Overhead concealed architectural openings on 200-250 lb doors.
• Electromagnetic fire/smoke hold-open integrated with the closer body.

Choose LCN when:

• Spec calls for "LCN or equal" — the 4040XP is the baseline most schedules reference.
• Allegion ecosystem (Schlage, Von Duprin) is in play for keying and exit hardware.
• Maximum tested service life on abusive openings (schools, transit).
• Broadest aftermarket arm and accessory stock through distribution.

Choose dormakaba when:

• ADA opening force is the binding constraint — TS 93 cam-action excels.
• European architectural aesthetic is required (slimmer body profile).
• Project standardizes on dormakaba access control or Best cores.
• Overhead concealed with tight reveal dimensions.

Specifying by opening: schools, healthcare, office, and retail

K-12 and higher ed: Norton 7500 or 8500 with parallel arm, security cover, and electromagnetic hold-open on corridor cross-doors tied to the fire alarm. Stairwell doors get standard Grade 1 surface, no hold-open.

Healthcare: delayed-action on patient room and exam doors. Cam-action or slide-track for low opening force on accessible patient routes. Electromagnetic hold-open on smoke barrier cross-corridor doors. Consider automatic operators for high-volume accessible entrances.

Office and retail: Norton 1600 medium-duty on interior; 7500 on exterior. Hold-open is fine on non-rated conference and break room doors. For tenant entries with controlled access, coordinate with high security door closers with anti-tamper covers.

Compatible hardware: exit devices, strikes, and hinges

Closer specification doesn't stand alone. On fire-rated egress doors, the closer pairs with a rim panic exit device — Sargent 80 series and Von Duprin 99 are the typical pairings, both listed for use in UL 10C assemblies.

Hinge count matters for closer performance: heavy doors with closer-induced loading need four-knuckle ball-bearing hinges minimum on doors above 7'0" or 200 lbs. See commercial hinges. For electrified openings, coordinate strike specification through electric strikes.

How to order: finishes, templates, and lead times

Standard finishes are powder coat (689 aluminum is the default; 690 dark bronze, 691 light bronze, 693 black common) and plated (605 bright brass, 612 satin bronze, 626 satin chrome). Plated finishes carry premium pricing and longer lead times — Plated finishes carry a meaningful premium and longer lead times than powder coat..

Templates: confirm hand (LH/RH), arm type, and mounting (pull/push side) before ordering. Most Norton surface closers are non-handed but the arm assembly is — getting this wrong is the #1 reject on site. For cam-action specifically, see cam action closers. Replacement arms, covers, and adapters are stocked under parts and accessories.

Norton Rixson series comparison table

Series / Model	BHMA Grade	Cycle Rating	Best For	List Price Tier
Norton 7500 surface	Grade 1	Grade 1 (A156.4)	Exterior, institutional, high-traffic	$$$
Norton 8500 surface	Grade 1	Grade 1 (A156.4)	Abuse-prone openings, schools, transit	$$$
Norton 1600 medium-duty	Grade 1	Grade 1 (A156.4)	Interior office, tenant doors	$$
Norton 9500 (electromagnetic)	Grade 1	Grade 1 (A156.4)	Fire/smoke hold-open on rated doors	$$$$
Norton Rixson 7900 concealed	Grade 1	Grade 1 (A156.4)	Architectural concealed, up to 250 lbs	$$$$
Rixson 27 floor closer	Grade 1	Grade 1 (A156.4)	All-glass, monumental, storefront	$$$$$
LCN 4040XP (comparison)	Grade 1	Grade 1 (A156.4)	Spec-standard heavy-duty surface	$$$
dormakaba TS 93 (comparison)	Grade 1	Grade 1 (A156.4)	ADA-sensitive cam-action interior	$$$$

Norton Rixson covers nearly every closer condition you'll encounter on a commercial project. Match the series to traffic, code, and aesthetic — and confirm hand, arm, and finish before the PO goes out. Shop Norton Rixson surface mounted door closers for in-stock options and quote pricing on full-project quantities.
