Square D Commercial Electrical Buying Guide: Breakers, Panelboards & Load Centers

What are the main Square D product lines: QO, Homeline, NQ, NF, and I-Line?

Square D is the North American brand of Schneider Electric. On commercial jobs, five families cover most of what you'll spec:

• QO — plug-on miniature breakers with Visi-Trip indicator; go into QO load centers and NQ panelboards. Commercial standard.
• Homeline — value-tier plug-on miniature, HOM load centers only. Residential and light commercial.
• NQ Panelboard — 240V-class distribution panelboard, uses QO-B (bolt-on QO) breakers, up to 400A mains.

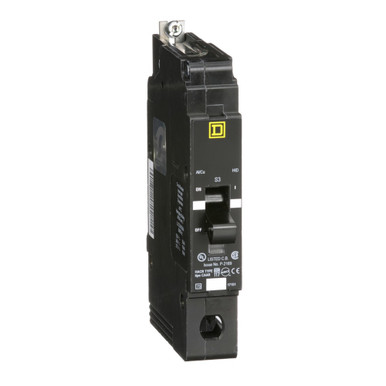

• NF Panelboard — 480Y/277V lighting and appliance panelboard, uses E-Frame bolt-on breakers (EDB/EGB/EJB).
• I-Line — column-style branch mounting, used in switchboards and higher-amperage distribution. Q-Frame, H-Frame, J-Frame, L-Frame plug directly onto the I-Line bus.

For heavy duty distribution: PowerPact is the current molded case circuit breaker (MCCB) platform — B/H/J/L/M/P/R frames, replacing legacy Q/F/K/L/M frame nomenclature. Older LA and MARK 75 (HLA) breakers still show up on retrofits.

What is the difference between Square D QO and Homeline breakers?

Both are 1-inch plug-on miniature breakers listed to UL 489, but they are physically and electrically different products.

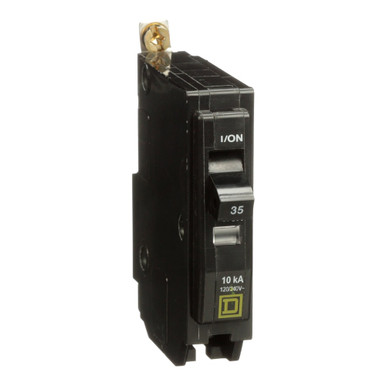

QO uses a patented Qwik-Open trip mechanism with a Visi-Trip red indicator on the handle when tripped, tighter manufacturing tolerances, and the Square D QOB bolt-on variant for panelboards. Standard QO plug-on is 10 kAIC; QO-H is 22 kAIC. It is the commercial default and what you'll find in NQ panelboards.

Homeline (HOM) is the residential/light-commercial value tier. 10 kAIC standard, plug-on only, HOM load centers only. Cheaper per pole, no Visi-Trip, no bolt-on version.

Do not mix. A QO breaker will not fit a Homeline panel and vice versa — the stab geometry is different. Both lines are 100% Square D but not interchangeable.

Are Square D breakers interchangeable with Eaton or Siemens?

Generally no. Square D QO/QOB, Eaton CH (Cutler-Hammer) CHN215CAF series, Eaton BR, and Siemens QP each have unique stab or bolt patterns. UL-listed replacement is by same manufacturer, same series.

A limited number of breakers are UL-classified for use in competitor panels (typically Eaton BR-classified into certain Square D HOM panels, and vice versa — always verify the classification label on the specific breaker). For a Square D QO, NQ, or NF panel, spec Square D. Retrofitting Eaton or Siemens is not a shortcut — it will fail inspection if the classification isn't on the label. See miniature breakers for current inventory.

How do PowerPact and Q-Frame molded case breakers compare?

PowerPact is Schneider's current MCCB platform. The frames scale by amperage:

• PowerPact B — up to 125A, replaces legacy QO/QB in molded case service

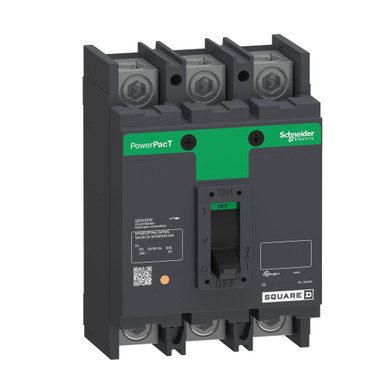

• PowerPact Q (QD/QB/QG) — up to 240A, thermal-magnetic. Square D PowerPacT QBL32100 is a 100A 3-pole example at 10 kAIC.
• PowerPact H/J/L — 150A to 600A, thermal-magnetic or electronic Micrologic trip
• PowerPact M/P/R — 800A up to 3000A, electronic trip standard

For jobs where you need 25 kAIC at 240V, the Square D PowerPacT QDL32175 175A 3-pole covers most branch feeder applications. For 480V main breaker positions you're typically stepping up to H-Frame or J-Frame. See molded case circuit breakers for current stock.

Legacy LA and MARK 75 (HLA) breakers are still available for retrofit-in-kind on existing switchboards where a PowerPact upgrade would require rework.

Should you spec a Square D main lug or main breaker load center?

Main breaker (MB) load centers have an integral main disconnect — required by NEC 230.71 as service equipment when you need the single service disconnect at the panel. Use MB when the load center IS the service entrance or when a downstream feeder panel needs its own disconnect for maintenance isolation. Browse Square D main breaker panels for current stock.

Main lug only (MLO) load centers have no main breaker — power lands directly on the bus lugs. Use MLO when upstream overcurrent protection already exists (a feeder breaker in an upstream panel, or a fused disconnect ahead of it). MLO is the standard sub-panel configuration. See Square D main lug load centers for current options.

Rule of thumb: if the panel receives conductors directly from the utility meter or is the disconnecting means for a building/tenant space, spec MB. If it's fed from a breaker in another panel, spec MLO.

How do you size Square D NQ and NF panelboards for a commercial building?

NQ is 240V-class (208Y/120, 240/120 single-phase, 240 delta), uses QO-B bolt-on breakers, and comes in 100A through 400A mains. Typical use: tenant distribution, small commercial branch panels, mechanical room panels. Bolt-on breakers meet the seismic and vibration requirements many jurisdictions call out.

NF is 480Y/277V for commercial lighting and appliance loads, uses E-Frame bolt-on breakers (Square D EDB for 480Y/277V single-pole through Square D EGB at 65 kAIC three-pole for higher fault current). NF is your default for large commercial buildings with 480Y/277V lighting distribution.

Sizing checklist per NEC Article 408:

• Calculate connected load and demand load per NEC 220
• Size main to 125% of continuous load plus 100% of non-continuous
• Verify AIC of every breaker equals or exceeds available fault current at the panel line side
• Provide minimum 25% spare circuit capacity for future loads (project-typical, not code-mandated)
• Confirm bus material (copper vs aluminum) matches spec — copper is standard on NF, optional on NQ

What is the difference between Square D D-Series and H-Series safety switches?

D-Series (general duty) — 240V max, lower endurance, residential and light commercial. Fusible (DG) and non-fusible (DGN, DGU). Comparable to Eaton's DG100NB general duty line — same use case.

H-Series (heavy duty, HD/HU) — 240V or 600V, higher mechanical and electrical endurance, industrial. Required where the switch sees frequent operation, higher available fault current, or 480V/600V systems. Fusible (H) and non-fusible (HU) variants; NEMA 1 indoor, 3R outdoor, 4/4X stainless for washdown or corrosive locations.

For any 480V motor disconnect or service-entrance-rated disconnect on a commercial job, spec H-Series. D-Series is not rated for 480V. See Square D safety switches.

Does Square D make AFCI and GFCI breakers for commercial panels?

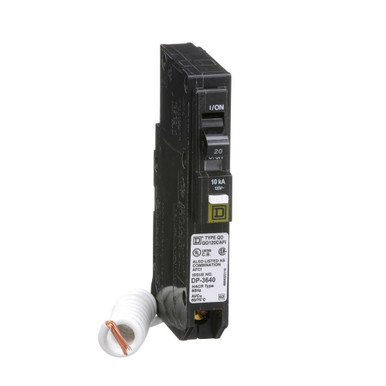

Yes. QO Combination AFCI (CAFI) is available in plug-on (Square D QO120CAFI) and bolt-on (Square D QOB115CAFI) — the bolt-on version is the one you need for NQ panelboards and any spec calling out bolt-on branch breakers.

NEC 210.12 requires AFCI protection on most 120V, 15A and 20A branch circuits in dwelling units and (per the 2020/2023 cycles) in guest rooms, dormitories, and similar occupancies. GFCI protection under NEC 210.8 continues to expand into commercial occupancies — kitchens, rooftops, outdoor receptacles, and now (2023 cycle) many 250V outlets.

See AFCI breakers for current inventory. For whole-panel surge, panel-mount SPDs mount to a knockout or dedicated interior — consult the Square D catalog for compatible SPD options.

How do Square D dry-type transformers and motor controls fit into a commercial spec?

Schneider dry-type transformers step 480V distribution down to 208Y/120V for receptacle and lighting loads. Standard sizes: 15, 30, 45, 75, 112.5, 150, 225, 300, 500, and 750 kVA. Spec by kVA (per calculated load plus growth), primary/secondary voltage, K-factor (K-4 or K-13 for non-linear/harmonic loads from LED drivers and VFDs), and enclosure (NEMA 2 indoor standard, 3R outdoor).

For motor loads, Schneider's TeSys line covers contactors, overloads, and combination starters. IEC-style (D-line) is compact and standard on OEM machinery; NEMA-style is preferred where field replacement and coil interchangeability matter.

Building out a panel schedule? Browse the full Square D catalog — verified stock with same-week ship on most commercial NQ and NF configurations.

How does Square D compare to Eaton and Siemens on a commercial job?

All three are UL 489-listed, all three cover residential value tier through medium-voltage distribution, and none of the three interchange freely with each other in a panel. Where they differ is ecosystem, availability, and legacy footprint on the site you're working on.

Square D is widely specified in North American commercial base-building packages — NQ and NF panelboards are common architect/EE defaults. QO's Visi-Trip and the bolt-on branch construction make it a consistent choice for tenant and lighting distribution.

Eaton (Cutler-Hammer legacy) is the industrial and residential value-tier heavyweight. BR is the residential competitor to Homeline; CH is the premium 3/4-inch commercial line. Eaton Series C, Series G, and Power Defense MCCBs go head-to-head with Square D PowerPact — and Eaton's Power Defense platform includes strong digital/networked trip options. See the Eaton Power Defense PDG-23G for a directly comparable Frame 2 three-pole MCCB.

Siemens is the third of the "big three." Strong in industrial control (SIMATIC/S7) and MV switchgear, with the QP miniature breaker line as the residential/light-commercial entry. Less common than Square D or Eaton in North American commercial base-building specs, but heavily used in industrial and process work.

Choose Square D when:

• The base-building spec calls out NQ or NF panelboards (most commercial architect/EE packages)
• You need bolt-on branch breakers with seismic/vibration ratings
• The site already has Square D distribution and you're extending or replacing in-kind
• You want the Visi-Trip indicator for faster troubleshooting during service calls

Choose Eaton when:

• You're on a legacy Cutler-Hammer site — CH breakers, Pow-R-Line panelboards
• The spec calls for Power Defense electronic trip with networked metering
• Residential or light commercial value work where BR is already stocked
• Industrial retrofit with Freedom or Advantage motor control lineups

Series / Model	Type	AIC / Rating	Best For	List Price Tier
Square D QOB	Miniature bolt-on MCB	22 kAIC, 120/240V	NQ commercial branch breakers	Mid
Square D EGB (E-Frame)	Miniature bolt-on MCB	65 kAIC, 480Y/277V	NF panelboards, 480V lighting	Mid
Square D PowerPact QDL	Molded case (Q-Frame)	25 kAIC, 240V, 175A	Feeder breakers, 240V distribution	Mid
Square D PowerPact M-Frame	Molded case, electronic trip	18 kAIC, ET 1.0	Main breakers, switchboards	High
Eaton Power Defense PDG-23G	Molded case, Frame 2	150A, 3-pole	Eaton-standardized sites, networked trip	High
Eaton DG100NB Safety Switch	General duty non-fusible	240V, NEMA 1/3R	Light-commercial disconnect (Eaton parallel to Square D D-Series)	Value

What AIC ratings do Square D commercial breakers offer, and how do you spec them?

Available Interrupting Capacity (AIC) must equal or exceed the available fault current at the breaker's line-side terminals. Undersizing AIC is a code violation (NEC 110.9) and a life-safety issue — a breaker that can't clear the fault will weld shut or explode.

Square D commercial AIC landmarks:

• QO plug-on: 10 kAIC standard, 22 kAIC (QO-H) high interrupt
• QOB bolt-on: up to 22 kAIC at 240V
• E-Frame (NF branch): EDB 65 kAIC at 240V / 18 kAIC at 480Y/277V; EGB 65 kAIC at 480Y/277V; EJB 100 kAIC
• PowerPact Q: 10-25 kAIC depending on series
• PowerPact H/J: up to 65-100 kAIC at 480V
• PowerPact L/M: 65-200 kAIC at 480V

Get the available fault current from the utility (transformer secondary) and run a short-circuit study or use Schneider's downloadable calculator. Series ratings (a downstream breaker "series-rated" with an upstream device) can lower cost — but the combination must appear on the manufacturer's UL-recognized series rating table, and the label must be posted at the panel per NEC 110.22.

For transfer switches ahead of a critical panel, see transfer switches.

Where can contractors buy Square D breakers, panels, and MCCBs?

ZenSupply stocks Square D across QOB miniature breakers, E-Frame bolt-on for NF panelboards, PowerPact Q/H/M-Frame MCCBs, and Multi9 supplementary breakers. Volume pricing on quote for panel-schedule builds. Browse the full Square D catalog to start a spec.
