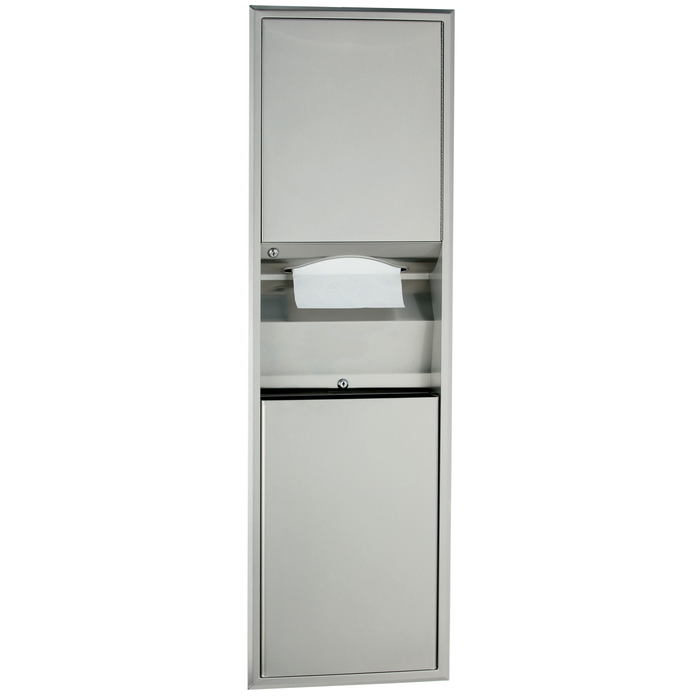

Bobrick B-3940 Recessed Convertible Paper Towel Dispenser/Waste Receptacle

Bobrick B-3940 Recessed Convertible Paper Towel Dispenser/Waste Receptacle

Bobrick B-3940 Recessed Convertible Folded Paper Towel Dispenser and Waste Receptacle

Bobrick ClassicSeries®, Economy-Budget Priced Series

Recessed convertible paper towel dispenser and waste receptacle is Type-304 stainless steel with welded construction; exposed surfaces have satin finish.
Flange is drawn and beveled, one-piece, seamless construction.
Door is secured to cabinet with a full-length stainless steel piano-hinge and equipped with a semi-concealed tumbler lock keyed like other Bobrick washroom accessories.
Paper towel dispenser dispenses 600 C-fold or 800 multifold paper towels without adjustment or use of adapters.
Removable waste receptacle is secured to cabinet with a tumbler lock, has front and side edges of bottom and all top edges hemmed for safe handling, and has a minimum capacity of 6 gal (22.7-L).
To adapt to changing needs of washrooms, this unit is equipped with an interchangeable paper towel dispenser and waste receptacle.

Features

• Unit includes convertible folded paper towel module and 6-gallon waste receptacle.
• Satin-finish stainless steel. Seamless beveled flange.
• Dispenses 600 C-fold or 800 multifold towels.
• Removable waste receptacle locked into cabinet.
• Receptacle is 4″ (100mm) deep with capacity of 6-gal.
• (22.7-L); extends 4-1/8″ (105mm) from wall. Rough Wall Opening: 16″ W, 54-3/4″ H, 4″ min.
• depth (405 x 1390 x 100mm). Field conversion made easy without replacing existing cabinets in wall.
• Interchangeable with:
  367-60 Interchangeable Receptacle 12 gal. (45.5 L)
  368-60 Interchangeable Receptacle, 18-gal. (68-L).
  3974-350 Convertible Automatic, Universal Roll Paper Towel Dispenser Module Equipped with LED Light.
  3961-50 “touch-free” Pull Towel Dispenser Module.

Product Specs

• Finish : Satin-Finish Stainless Steel
• Operation : Manual
• Mounting Options : Recessed Mounted
• Paper Type : Multi-Fold Towel
• Towel Capacity : 600 C-fold; 800 multifold
• Waste Capacity : 6-gal. (22.7-L)
• Accessibility : ADA Compliant : Surface Mounted
• Waste Capacity : 13-gal. (49.2-L)

Resources

• B-3940 Technical Data Sheet
• B-3940 Product Warranty
• B-3940 Care and Maintenance
