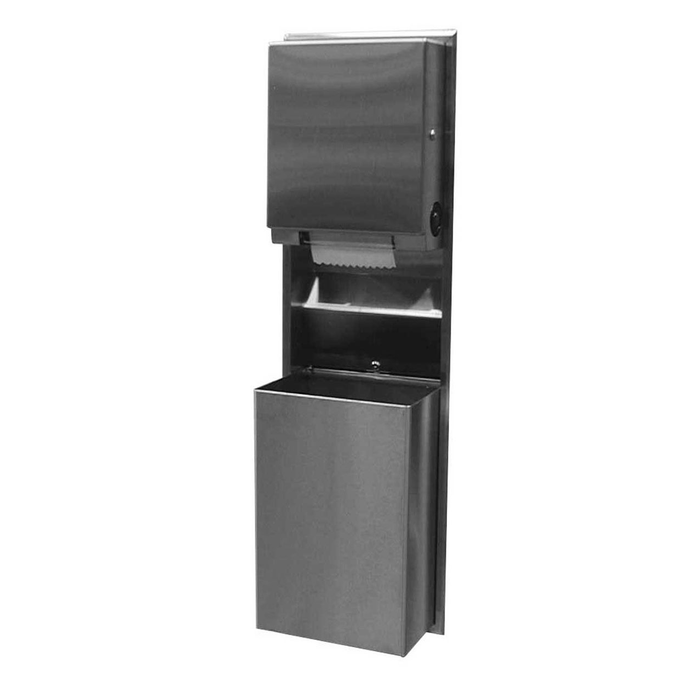

Bobrick B-39617 Convertible Paper Towel Dispenser/Waste Receptacle – 18-Gal.

Bobrick B-39617 Convertible Paper Towel Dispenser/Waste Receptacle – 18-Gal.

Unit includes convertible universal, roll paper towel module and 18-gallon (68.0-L) waste receptacle. Satin-finish stainless steel. Seamless beveled flange. “Touch-free” pull-towel mechanism dispenses 12″ (305mm) length per pull of universal roll paper towels. Accommodates 8″ (205mm) wide, up to 8″ (205mm) diameter rolls, 800 ft (244m) long, plus 3 1/2″ (90mm) diameter stub roll with automatic transfer. Removable waste receptacle is locked into cabinet.

Rough Wall Opening: 16″ W, 54-3/4″ H, 4″ min. depth (405 x 1390 x 100mm). Field conversion made easy without replacing existing cabinets in wall

Interchangeable with:
367-60 Interchangeable Receptacle, 12-gal. (45.5-L).
3974-250 Convertible Automatic, Universal Roll Paper Towel Dispenser Module Equipped with LED Light.
3944-52 Folded Towel Dispenser Module

Features

•  Stainless steel, satin finish
•  Recessed Mount
• 17-3/16″ W x 56″ H x 12-1/16″ D
• Dispenses towels rolls 8″ wide and up to 8″ in diameter
•  Removable 18-gal waste receptacle locks into cabinet

Product Specs

• Operation: Manual
• Mounting Options: Recessed Mounted
• Paper Type: Roll Towel
• Towel Capacity: Roll: 8" W x 8" D; 800'
• Waste Capacity: 18-gal. (68.0-L)

Resources

• B-39617 Technical Data Sheet
• B-39617 Product Warranty
• B-39617 Country of Origin
• B-39617 LEED Contribution
• B-39617 Care and Maintenance
