Bobrick B-50516 Recessed Specimen Pass Through Cabinet

Bobrick B-50516 Recessed Specimen Pass Through Cabinet

(No reviews yet) Write a Review

Model: 50516
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$945.40
$938.90
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

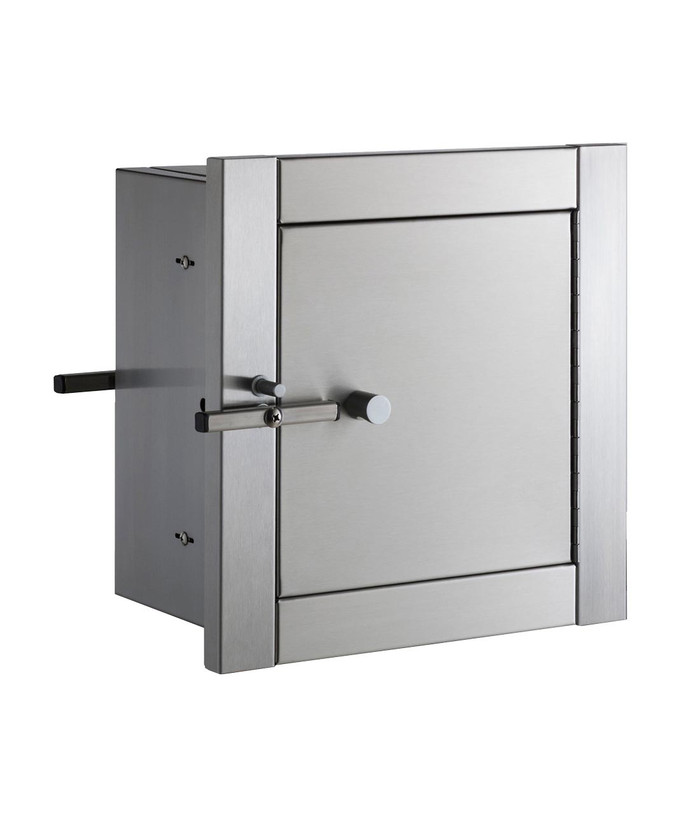

Bobrick B-50516 Recessed Specimen Pass Through Cabinet, 7" Depth

Provides convenient passage for specimen from patient area to laboratory. Mounts in walls 3-6″ thick with adjustable flange. Type 304 stainless steel, satin finish. ADA compliant interlocking mechanism prevents both doors from being open at the same time; provides sight barrier. Removable stainless steel spillage tray. Rough Wall Opening 12-3/8″ W x 12-3/8″ H (314 x 314mm)

Features

  • Stainless steel, satin finish
  • Recessed
  • 13-1/2″ W x 13-1/2″ H x 7″ D
  • Provides convenient passage for specimen from patient area to laboratory

Product Specs

  • Product Categories : Specimen Pass Throughs
  • Finish : Satin-Finish Stainless Steel
  • Accessibility : ADA Compliant

Resources

Manufacturer Resources

Product Specs

Product Type:
Specimen Cabinet
Features:
ADA Compliant
Product Group:
Washroom/Bath Accessories
Product Subgroup:
Specimen Cabinet
Product Material:
Stainless Steel
Department:
Plumbing
Product Depth:
7"

Bobrick 50516 – Frequently Asked Questions

1) Will a recessed specimen pass through fit in a 4 inch stud wall?
Yes. The B-50516 mounts in walls 3 to 6 inches thick, and the flange is adjustable to take up the difference, so a standard 2x4 stud wall is within range. Thicker than 6 inches and this cabinet is not the right unit.
2) How does the Bobrick B-50516 keep the patient side and lab side separated?
An interlocking mechanism prevents both doors from being open at the same time, which also acts as a sight barrier between the patient area and the laboratory. So a specimen is handed through without either side seeing into the other room.
3) Can the B-50516 be surface mounted on a wall instead of recessed?
No. This is a recessed unit only, built to drop into a 12-3/8 inch square framed opening in a 3 to 6 inch wall. If the wall cannot be cut, for example a solid masonry or shear wall, you need a different pass through configuration rather than this one.
4) Is this specimen cabinet ADA compliant for a healthcare exam room?
The B-50516 is ADA compliant, with the interlocking door mechanism stated as ADA compliant. That covers the cabinet hardware itself; mounting height still has to be set per the reach ranges for your installation.
5) What happens if a specimen container leaks inside the cabinet?
There is a removable stainless steel spillage tray in the bottom of the cabinet. It lifts out for cleaning or disinfecting, so a leaking container is contained in the tray rather than in the cabinet body or the wall cavity.
6) How much wall cavity depth does the cabinet actually take up behind the finished face?
The cabinet body is 7 inches deep overall, which is why the wall thickness range runs 3 to 6 inches with the adjustable flange taking up the remainder at the face. Check for plumbing or conduit in that cavity before cutting the opening.
7) What material and finish is the Bobrick B-50516 pass through cabinet?
Type 304 stainless steel with a satin finish, inside and out. That is the grade specified for clinical and lab washroom work because it takes repeated cleaning and disinfecting without pitting the way a painted or plated cabinet would.
