Bobrick B-6697 Recessed Toilet...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$99.84

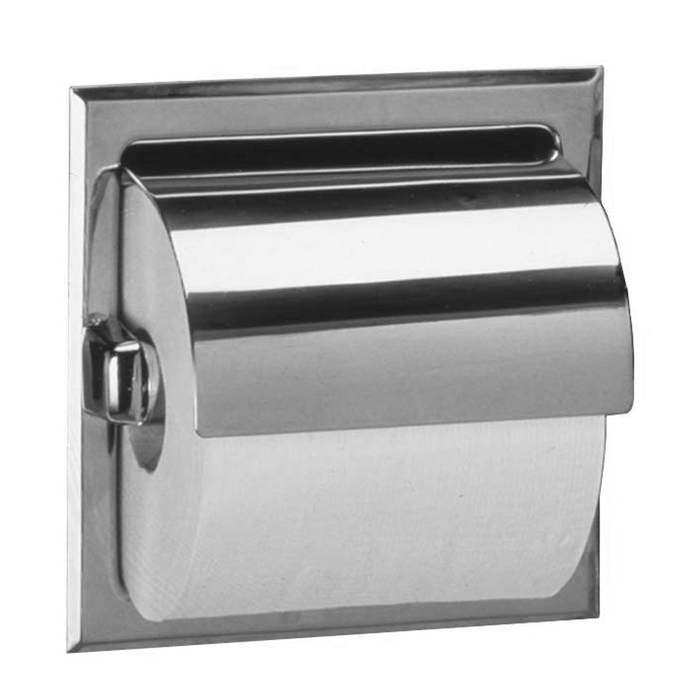

Bobrick B-6697 Recessed Toilet Tissue Dispenser

Bobrick B-6697 Recessed Toilet Tissue Dispenser

(No reviews yet) Write a Review

Model: BO6697-66
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$99.84
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Bobrick B-6697 Recessed Toilet Tissue Dispenser

  • Type 304 stainless steel with one-piece seamless construction. Satin finish. Chrome-plated plastic spindles hold rolls up to 5 1/8″ (130mm) diameter (1500 sheets). Single-roll model measure 6 1/8″ W x 6 1/8″ H (155 x 155mm). Mounting: clamps for securing to stud walls or countertop aprons. Rough Wall Opening: 5 1/2″ W x 5 1/4″ H x 3 3/8″ mi. Depth (140 x 135 x 85mm). With stainless steel hood.

Features

  • Stainless steel, satin finish
  • Recessed Mount
  • 6-1/8″ W x 6-1/8″ H x 4-5/8″ D (plus mounting clamp)
  • Dispenses rolls up to 5-1/8″ diameter
  • For stud wall or countertop apron

Prdouct Spec

  • Finish : Satin-Finish Stainless Steel
  • Mounting Options : Recessed Mounted
  • Tissue Type : Standard Roll - Single
  • Accessibility : ADA Compliant

Product Resources

Manufacturer Resources

Product Specs

Roll Diameter:
5 1/8"
Dispenser Type:
Open
Product Style:
Recessed
Product Type:
Toilet Paper Dispenser
Product Group:
Washroom/Bath Accessories
Product Subgroup:
Toilet Paper Dispenser
Capacity:
Single Roll
Product Material:
Stainless Steel
Department:
Plumbing
Product Depth:
4 9/16"

Bobrick BO6697-66 – Frequently Asked Questions

1) What size rough wall opening do I need for the Bobrick B-6697 recessed tissue dispenser?
Frame the opening at 5-1/2 inches wide by 5-1/4 inches high, with a minimum wall depth of 3-3/8 inches behind the finished surface. The dispenser body itself is 4-9/16 inches deep, and the visible flange measures 6-1/8 by 6-1/8 inches, so it covers a modest amount of overcut around the opening.
2) Can the B-6697 be recessed into a stud wall, or does it need a chase?
It mounts in a standard stud wall. Mounting clamps secure it to stud wall construction or to a countertop apron, so you don't need a masonry chase or a dedicated recess box. You do need at least 3-3/8 inches of clear depth behind the finish surface for the body to sit in.
3) Will this Bobrick dispenser hold jumbo rolls, or only standard rolls?
Standard rolls only, one at a time. The chrome-plated plastic spindle takes rolls up to 5-1/8 inches in diameter, roughly a 1500-sheet roll. Jumbo tissue runs well past that diameter and will not fit. If your facility is standardized on jumbo roll, you need a different dispenser family.
4) Can the B-6697 be surface mounted on a tile wall instead of recessed?
No. It's a recessed unit, built to drop into an opening in the wall or a countertop apron and be held by clamps. There is no surface-mount backplate. For a solid tile-over-block wall with no cavity, you need a surface-mounted tissue dispenser instead.
5) Is the B-6697 ADA compliant for a public restroom stall?
Bobrick lists the B-6697 as ADA compliant. It is an open-style dispenser, so the roll is reachable without opening a cover or working a latch. Mounting height and the position relative to the water closet are set by your installer per the code drawing, not by the unit itself.
6) What material and finish is the Bobrick B-6697, and will it hold up in a high-traffic public restroom?
Type 304 stainless steel with one-piece seamless construction and a satin finish, plus a stainless steel hood. Seamless means no welded corners to crack or collect grime, and 304 handles the humidity and cleaning chemicals of a public washroom. Satin hides fingerprints and scratches better than a polished finish across a fleet of stalls.
7) Is this a single-roll dispenser, and what should I use if I want a spare roll held in reserve?
The B-6697 carries one roll only, on a single spindle. In a busy restroom that means more frequent service rounds. If you want a reserve roll behind the one in use, look at a multi-roll recessed Bobrick unit instead, such as a two-roll recessed tissue dispenser from the same recessed washroom accessory range. Rough opening sizes differ between the single and multi-roll bodies, so re-check framing before you swap.
8) Can I mount this Bobrick tissue dispenser in a countertop apron under a vanity?
Yes, that is one of the two intended applications. The same clamp mounting that secures it to a stud wall works on a countertop apron, provided the apron gives you the 5-1/2 by 5-1/4 inch opening and at least 3-3/8 inches of clear depth behind it.
9) Is the B-6697 an open dispenser or does it have a locking cover?
Open. The roll sits on an exposed spindle under a stainless steel hood, with no locking door. That keeps service fast for housekeeping, but it offers no protection against roll theft or tampering, which matters in unsupervised public restrooms. A locking multi-roll cabinet is the answer where pilferage is a problem.
