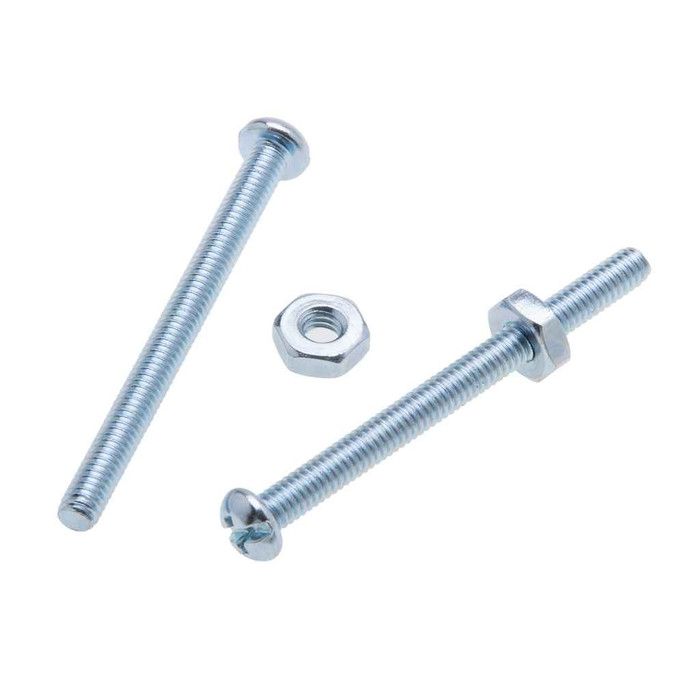

Bolt 10-32 x 1 RH CD Stove Blt St-Z (100 pcs)
Manufacturer Resources
Product Specs
- Division:
- Electrical H1
- Product Group:
- Fasteners
- Sub Division:
- Electrical-E H2
- Department:
- Electrical
- Product Subgroup:
- Bolts
Metallics RSB98 – Frequently Asked Questions
1) What thread size and length is the Metallics RSB98 stove bolt?
The RSB98 is a 10-32 x 1 inch stove bolt. That is a #10 machine screw diameter with 32 threads per inch, so it mates with a standard 10-32 nut or tapped hole, and the 1 inch length is measured on the shank under the round head.
2) Will a 10-32 x 1 inch stove bolt work for grounding screws or box mounting?
10-32 is the standard thread used on electrical boxes and device mounting holes, so the RSB98 threads into those tapped holes. Note what it is, though: a round head combination drive stove bolt, meant to be run through with a nut or into a tapped hole. It is not a listed green grounding screw, so if the job calls specifically for a ground screw, order that part.
3) Is the Metallics RSB98 bolt a Phillips or a slotted head?
Round head with a combination drive, so it takes either a slotted (flat) screwdriver or a Phillips bit. Handy on a panel or box where you only have one driver in your pouch.
4) Are Metallics RSB98 stove bolts zinc plated or stainless?
These are steel with a zinc plating, not stainless. Zinc plated steel is fine for dry indoor electrical work, boxes, panels and enclosures, but for wet, coastal or corrosive locations you want a stainless fastener instead.
5) How many bolts come in a box of Metallics RSB98?
One hundred pieces per pack. That is a bulk count aimed at MRO stock and electrical contractors who burn through 10-32 hardware on box and device work, rather than a small retail card of a dozen.
6) What is the Metallics part number for the 10-32 x 1 zinc stove bolt?
Metallics catalogs it as RSB98, a 10-32 x 1 round head combination drive stove bolt in zinc plated steel, packed 100.
