Metallics SBHK1213 Bolts 1/2-13 Hx Blt Wshr &Nt Kit SS (Tray 240)

Metallics SBHK1213 Bolts 1/2-13 Hx Blt Wshr &Nt Kit SS (Tray 240)

(No reviews yet) Write a Review

Model: SBHK1213
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$507.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/2-13 Hx Blt Wshr &Nt Kit SS (Tray 240)

  • Kit Components

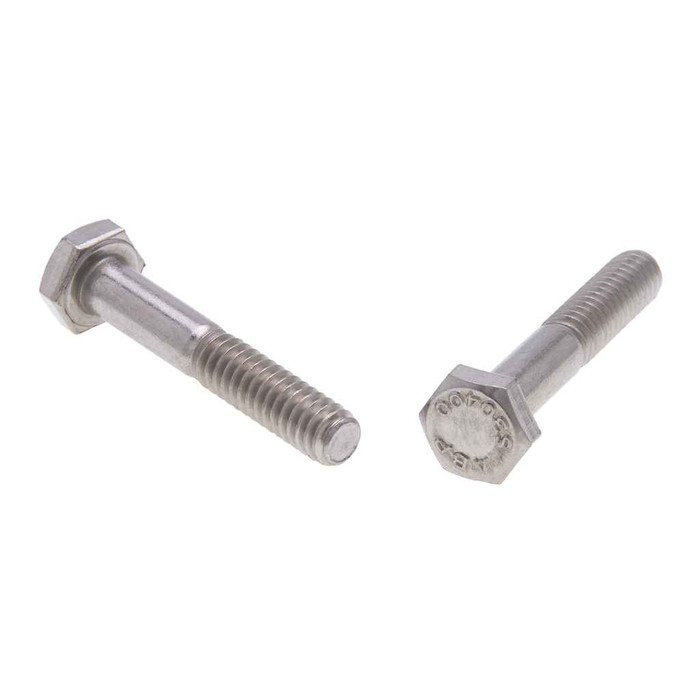

    • (20) 1/2 -13 x 1 Hex Head Bolts - Stainless Steel
    • (75) 1/2 IN Split Lock Washers - Stainless Steel, (75) 1/2 IN Flat SAE Washers - Stainless Steel

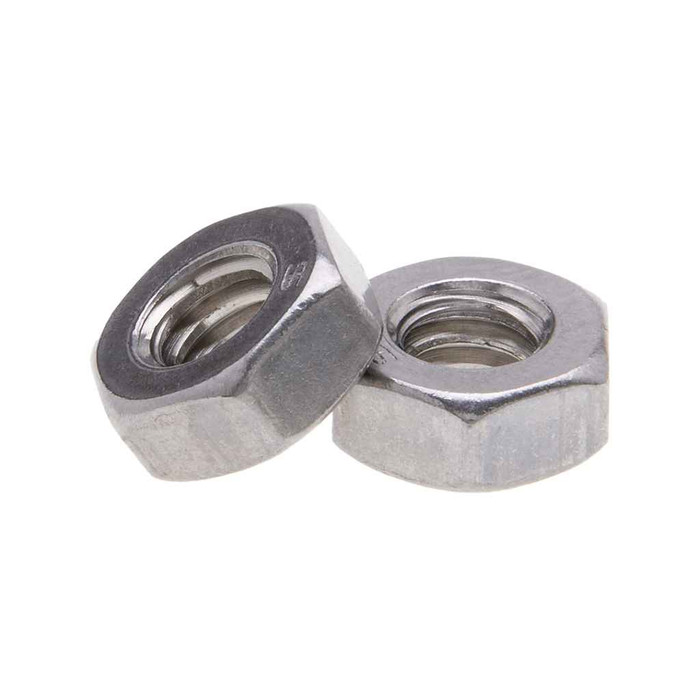

    • (10) 1/2-13 IN x 2 IN Hex Head Cap Screws - Stainless Steel, (45) 1/2-13 IN Hex Nuts - Stainless Steel
    • (15) 1/2-13 IN x 1-1/2 IN Hex Head Cap Screws - Stainless Steel

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Fastener Head Type:
Hex
Field Application:
Electrical, Plumbing, Heating and Air Conditioning Industries
Kit Component 5:
(45) 1/2 -13 Hex Nuts - Stainless Steel
Language Code:
EN
Number Of Pieces:
240
Order Minimum Imperial:
1
Order Minimum Uom Imperial:
EA
Pack Type:
Tray
Product Group:
Fasteners
Product Height:
1.75 in
Product Length:
11 in
Product Weight:
3969 g
Product Width:
184.15 MM
Sub Division:
Electrical-E H2
Thread Per Inch:
13
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Bolt, Nut And Washer Kit
Type2:
Bolt, Nut And Washer Kit
Series:
SBHC and JSBHC
Product Details:
Bolt, Nut And Washer Kit
Product Material:
18-8 Stainless Steel

Metallics SBHK1213 – Frequently Asked Questions

1) What exactly comes in the Metallics SBHK1213 stainless hex bolt kit, and how many pieces total?
240 pieces in a tray: 20 hex head bolts 1/2-13 x 1 inch, 15 hex head cap screws 1/2-13 x 1-1/2 inch, 10 hex head cap screws 1/2-13 x 2 inch, 45 hex nuts 1/2-13, 75 split lock washers for 1/2 inch, and 75 flat SAE washers for 1/2 inch. Everything is stainless steel, so one tray covers three bolt lengths plus the nuts and both washer styles.
2) Will the bolts in this 1/2 inch kit thread into a standard 1/2-13 nut or tapped hole?
Yes. Every bolt, cap screw and nut in the kit is 1/2-13, meaning 13 threads per inch, which is the standard UNC coarse thread for 1/2 inch fasteners. They mate with any 1/2-13 nut, coupling, strut channel nut or tapped hole. They will not thread into 1/2-20 fine thread hardware.
3) Is this stainless bolt kit suitable for outdoor or damp mechanical rooms?
The fasteners are 18-8 stainless steel, which is the common corrosion resistant austenitic grade used for outdoor, wet and washdown work. That is why the kit is aimed at electrical, plumbing, heating and air conditioning installs where plated steel would rust in a damp room or on a rooftop curb.
4) How many complete bolt, nut and washer assemblies can I actually build out of the SBHK1213 kit?
There are 45 bolts and cap screws in total (20 at 1 inch, 15 at 1-1/2 inch, 10 at 2 inch) and 45 hex nuts, so the bolts and nuts pair up one for one. Washers run ahead of that count at 75 split lock and 75 flat, which leaves spare washers for bolting into tapped holes, strut nuts or anchors where no nut is used.
5) Does the Metallics SBHK1213 kit meet Buy American or ARRA requirements on a public job?
No. The kit is not Buy American compliant and not ARRA compliant, and country of origin is listed as multiple. If your contract carries a domestic sourcing clause, this tray will not satisfy it.
6) I only need one bolt length. Is a kit like this worth it over loose stainless bolts?
If you know the exact grip length and quantity, loose box-quantity 1/2-13 stainless bolts are the cheaper way to buy. The SBHK1213 tray makes sense for MRO stock and service trucks: three lengths (1, 1-1/2 and 2 inch) plus nuts and both washer types in one assortment, so an electrician or mechanical tech hanging strut, pipe hangers or equipment can build a complete joint without a trip to the supply house.
7) Are the bolt heads hex or socket drive on the Metallics SBHK1213 kit?
All hex head, so you drive them with a standard 3/4 inch wrench or socket rather than an Allen key. No hex key or Torx bit needed on the job.
8) Can I buy a single tray of the SBHK1213 kit, or is there a case minimum?
One tray is the minimum, sold each. The tray itself is the pack, holding all 240 pieces.
