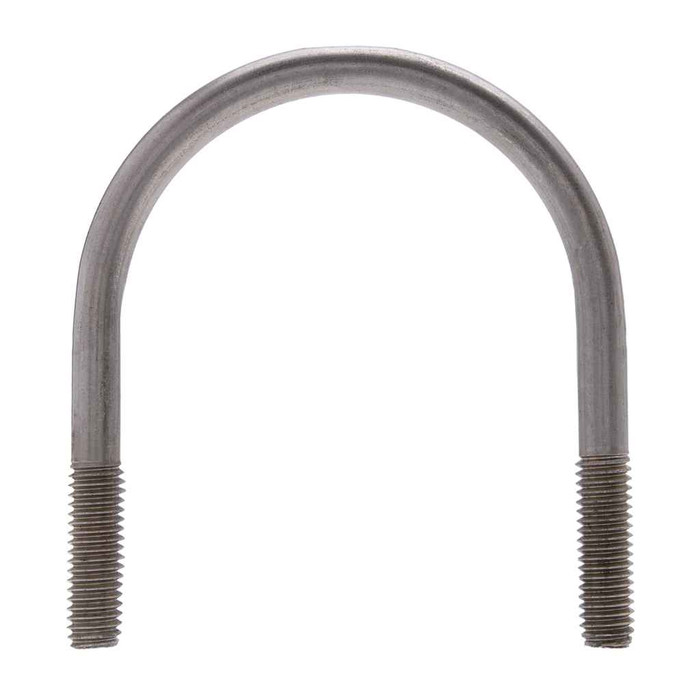

Bolts 1/4-20 x 1-1/4 x 9/16 U-Blt &N SS (Bag 10)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.2
- Division:
- Electrical H1
- Fastener Head Width:
- 0.428 - 0.438 in.
- Fastener Height:
- 0.212 - 0.226
- Fastener Length:
- 1/1/04
- Fastener Width:
- 16-Sep
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Language Code:
- EN
- Material Standard:
- ASTM F594
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-U-Bolt_18-8_SS.pdf
- Number Of Nuts:
- 2
- Order Minimum Imperial:
- 10
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Bag
- Product Group:
- Bolts
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 236 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 20
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Fasteners
- Product Subgroup:
- Specialty Bolts
- Product Type:
- U-Bolt
- Type2:
- U-Bolt with Hex Nuts
- Series:
- UBS
- Product Details:
- U-Bolt with Hex Nuts
- Product Material:
- 18-8 Stainless Steel
Metallics UBS01 – Frequently Asked Questions
1) What size pipe or tube will the Metallics UBS01 U-bolt clamp?
The UBS01 is a 1/4-20 U-bolt with a 9/16 inch inside width and 1-1/4 inch legs, so it wraps round stock up to about 9/16 inch across. That suits small conduit, tubing and cable runs rather than larger trade sizes. If you need a wider opening, other sizes in the UBS series are available by request.
2) Is the Metallics UBS01 U-bolt stainless, and will it hold up outdoors?
It is made from 18-8 stainless steel, the austenitic grade commonly used for corrosion resistance in wet and exterior work, and the nuts are supplied to ASTM F594 for stainless fasteners. That makes it a reasonable choice for damp mechanical rooms, rooftop runs and exterior supports where plated steel would rust.
3) Does the Metallics UBS01 U-bolt meet Buy American requirements for a public job?
The UBS01 is flagged as both Buy American compliant and ARRA compliant, which is what a government, school or healthcare procurement office usually needs on the submittal. Country of origin is listed as multiple, so the specific bag can come from more than one source plant.
4) How many U-bolts are in a bag of Metallics UBS01, and what is the minimum order?
They are bagged 10 to a bag, and 10 each is the minimum order quantity. A bag weighs 236 g, so it is light enough to carry a handful of bags on the truck for a conduit run.
5) Will a standard 1/4-20 nut or threaded coupling thread onto this U-bolt?
Yes. Threads are cut to ANSI/ASME B1.1 in right hand 1/4-20, so any off-the-shelf 1/4-20 nut, washer or coupling will run on. Stick with stainless mating hardware if the assembly is outdoors, since mixing plated steel with 18-8 invites galvanic corrosion at the joint.
6) How much space does the Metallics UBS01 U-bolt need once it is installed?
Plan on roughly 2.15 inches of height for the bolt, which is the leg plus threaded length you have to clear behind the mounting surface for the nuts. The 9/16 inch inside width sets how far the two legs are apart when you drill the plate.
7) What trades actually use a U-bolt like the Metallics UBS01?
It is catalogued for electrical, plumbing, heating and air conditioning work, which is where small U-bolts earn their keep: strapping conduit or tube to strut and angle, anchoring a hanger rod assembly, or clamping a small pipe to a bracket. The pair of hex nuts lets you set it through a drilled plate or channel and lock it from the back.
