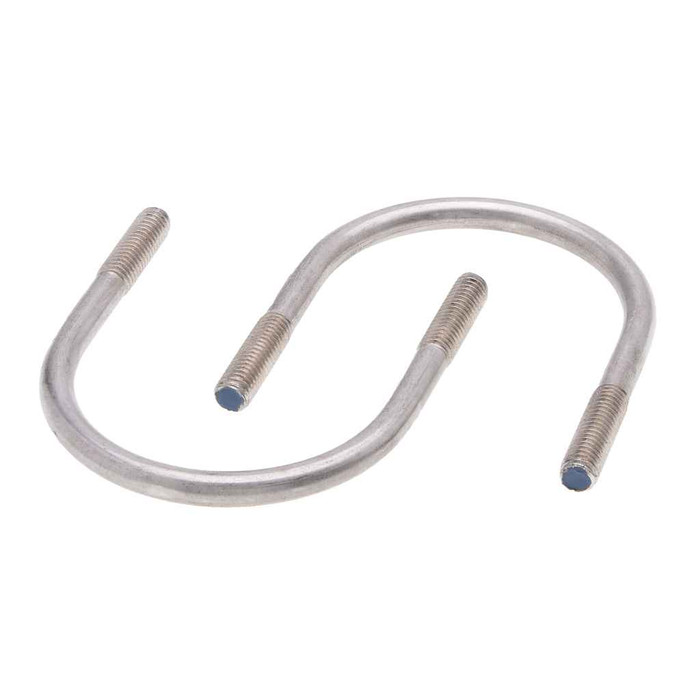

Bolts 1/4-20 X 2-1/4 X 1-1/4 U-Blt & SS (Bag 10)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.2
- Division:
- Electrical H1
- Fastener Head Width:
- 0.428 - 0.438 in.
- Fastener Height:
- 0.212 - 0.226
- Fastener Length:
- 2/1/04
- Fastener Width:
- 1/1/04
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Language Code:
- EN
- Material Standard:
- ASTM F594
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-U-Bolt_18-8_SS.pdf
- Number Of Nuts:
- 2
- Order Minimum Imperial:
- 10
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Bag
- Product Group:
- Fasteners
- Product Height:
- 3 in
- Product Length:
- 6 in
- Product Weight:
- 313 g
- Product Width:
- 152.4 MM
- Sub Division:
- Electrical-E H2
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 20
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- U-Bolt with Hex Nuts
- Type2:
- U-Bolt with Hex Nuts
- Series:
- UBS
- Product Details:
- U-Bolt with Hex Nuts
- Product Material:
- 18-8 Stainless Steel
Metallics UBS06 – Frequently Asked Questions
1) What size is the Metallics UBS06 U-bolt and what comes in the bag?
The UBS06 is a 1/4-20 U-bolt measuring 2-1/4 by 1-1/4, and it ships as a bag of 10. Each U-bolt comes with two hex nuts, so you are not buying nuts separately. Thread is 20 threads per inch, right hand.
2) Is the UBS06 U-bolt stainless steel, and will it hold up outdoors or in a wet area?
It is 18-8 stainless steel, the austenitic grade normally specified for damp, washdown, and outdoor-exposed mounting where plated carbon steel would rust. The nuts are made to ASTM F594, the stainless fastener nut standard. For heavy chloride exposure (coastal, pool chemical rooms) 316 is the usual step up.
3) Does this U-bolt qualify for a Buy American or ARRA-funded job?
Metallics lists the UBS06 as both Buy American compliant and ARRA compliant. Country of origin is recorded as multiple, so if your contract requires a documented single origin, get the certification pulled for the lot you receive before it goes into a federally funded install.
4) What are U-bolts like the Metallics UBS06 used for on a job?
They clamp round stock, conduit, pipe, tube, or cable runs to a channel, angle, or bracket. Metallics lists the field application as the electrical, plumbing, heating, and air conditioning trades, which is where a 1/4-20 stainless U-bolt this size usually shows up: small conduit and pipe supports, equipment and antenna mast clamping, and strut-mounted runs. The two nuts let you set it against a flat plate or a piece of strut without extra hardware.
5) Are the threads standard inch threads, so I can use my own stainless nuts and washers?
Threading is to ANSI/ASME B1.1 unified inch, 1/4-20 right hand. Any standard 1/4-20 nut, lock nut, or washer will run on it, so you can add nylon-insert nuts or flat washers from stock if the mount calls for them.
6) Can I buy a single UBS06 U-bolt or do I have to take the bag?
It sells in the bagged 10-piece quantity, with an order minimum of 10 each. Metallics notes other sizes and quantities are available by request if a job needs a different U-bolt size or a larger pack.
7) How much does a bag of 10 Metallics UBS06 U-bolts weigh?
313 g for the packaged bag of 10, so it is a light item that drops easily into a van stock bin or a kitted material order.
