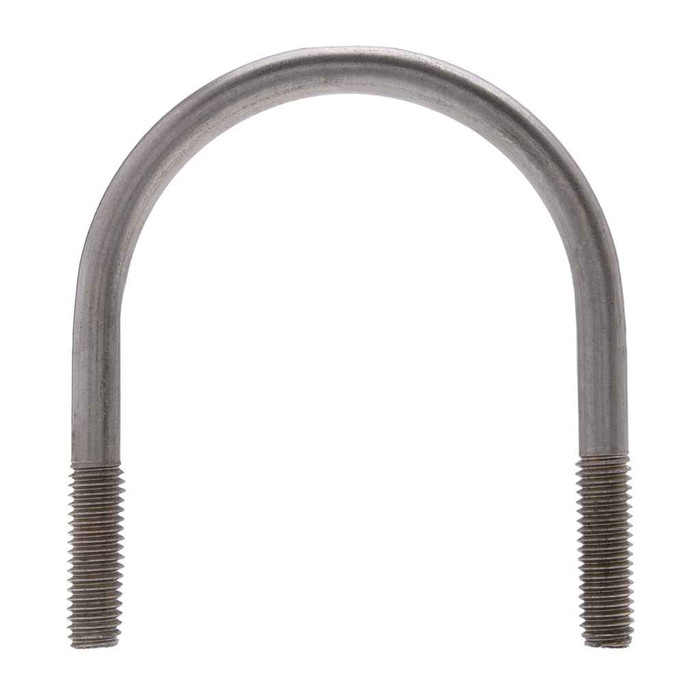

Bolts 1/4-20 X 2-3/4 X 1-1/2 U-Blt & (Bag 10)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Dimensional Standard:
- ASME B18.2.2
- Division:
- Electrical H1
- Fastener Head Width:
- 0.428 - 0.438 in.
- Fastener Height:
- 0.212 - 0.226
- Fastener Length:
- 2/3/04
- Fastener Width:
- 1/1/02
- Field Application:
- Electrical, Plumbing, Heating, Air Conditioning Industries
- Language Code:
- EN
- Material Standard:
- U-Bolt: ASTM A307 / Nut: Grade A per ASTM A563
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-U-Bolt_St-Zn.pdf
- Number Of Nuts:
- 2
- Order Minimum Imperial:
- 10
- Order Minimum Uom Imperial:
- EA
- Pack Type:
- Bag
- Product Group:
- Bolts
- Product Length:
- 6 in
- Product Weight:
- 408 g
- Product Width:
- 152.4 MM
- Sub Division:
- Electrical-E H2
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 20
- Thread Standard:
- ANSI/ASME B1.1
- Department:
- Fasteners
- Product Subgroup:
- Specialty Bolts
- Product Type:
- U-Bolt
- Type2:
- U-Bolt with Hex Nuts
- Series:
- UB
- Product Finish:
- Zinc
- Product Details:
- U-Bolt with Hex Nuts
- Pipe Size Dimension:
- 1
- Product Material:
- Steel
Metallics UB07 – Frequently Asked Questions
1) What pipe size does the Metallics UB07 U-bolt fit?
The UB07 is sized for 1 inch pipe. The U is 1-1/2 inches across the inside opening with 2-3/4 inches of leg length, so it wraps 1 inch pipe and still leaves thread for the two nuts plus a backing plate or strut. If you are clamping a different diameter, you need a different size in the UB series rather than this one, since a U-bolt that is loose on the pipe will not hold under vibration.
2) Does the UB07 U-bolt come with nuts, or do I have to order them separately?
Two hex nuts ship with each U-bolt, so nothing else is needed on the thread side. The nuts are Grade A per ASTM A563. You still supply whatever you are bolting into, a backing plate, strut, or channel, since no plate is included.
3) What thread is on the Metallics UB07 and will standard 1/4-20 nuts fit it?
Threads are 1/4-20, right hand, cut to ANSI/ASME B1.1. That means any standard off-the-shelf 1/4-20 nut or coupling will thread on if you lose one of the two supplied nuts.
4) Is this U-bolt okay for damp or outdoor use, like a rooftop condenser line?
Construction is steel with a zinc finish. Zinc plating handles indoor, damp, and sheltered exterior work and is what most electrical and mechanical rough-in uses. For continuous weather exposure, salt air, or wash-down areas, step up to a stainless U-bolt instead, because plated steel will eventually rust through at the thread.
5) Does the Metallics UB07 qualify for a Buy American or ARRA funded job?
Both the Buy American and ARRA compliance flags on the UB07 read compliant, which is what a government, school, or healthcare procurement file usually needs on record. Country of origin is listed as multiple, so if your spec requires a single named source country, confirm the origin on the lot you receive.
6) What standards does this U-bolt and nut assembly meet for a submittal?
Three to put on the submittal: the U-bolt itself is ASTM A307 material, the nuts are Grade A per ASTM A563, and the hex nut dimensions follow ASME B18.2.2. Thread form is ANSI/ASME B1.1.
7) Is a U-bolt like the UB07 the right way to hang conduit, or should I use a one-hole strap?
A U-bolt wraps the pipe on both sides and clamps through a plate, strut, or channel with two nuts, so it resists pull-off and vibration far better than a single-screw strap and lets you mount off steel or Unistrut rather than a flat surface. A one-hole strap is quicker and fine for light conduit against a wall. Use the UB07 where the run is on a trapeze, on steel, or where the load and movement matter. It is specified for electrical, plumbing, heating, and air conditioning work.
8) How many U-bolts are in a bag of Metallics UB07, and is there an order minimum?
The UB07 is bagged 10 per bag, with a minimum order of 10 each. Bag weight works out around 408 g total. Other sizes and quantities can be had by request if 10 does not match the run you are doing.
9) What size wrench or socket do I need for the nuts on the UB07?
The hex nuts measure 0.428 to 0.438 inch across the flats with a height of 0.212 to 0.226 inch, which is the standard 7/16 inch wrench size for a 1/4-20 hex nut. A 7/16 socket or nut driver runs them down.
