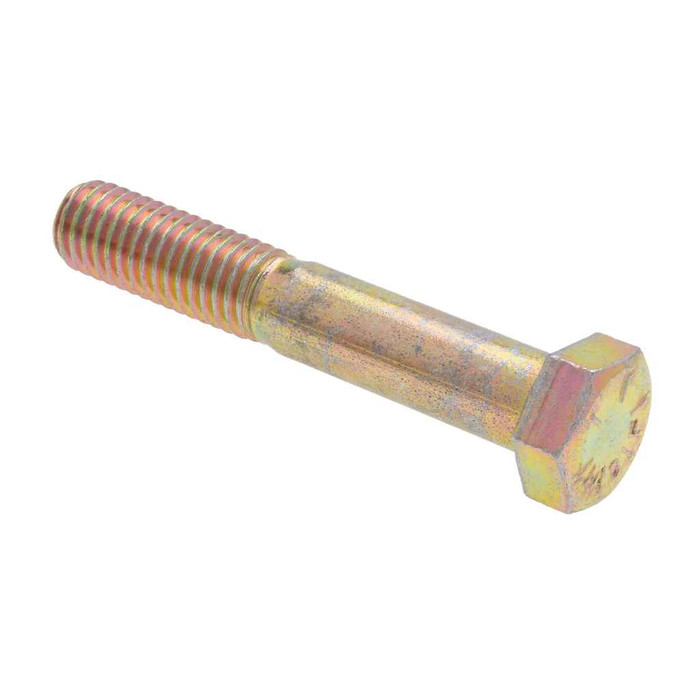

Bolts 1/4-20 x 3 G8 HXBT St-zn (Jar 50)
Additional Notes
- Other sizes and quantities available by request
Features
- A cap screw made from medium carbon steel and heat-treated
- Used in automotive and fleet industries, where greater tensile strength is required than can be met by a Grade-5
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.428 - 0.438 in.
- Fastener Height:
- 0.150 - 0.163
- Fastener Length:
- 3
- Fastener Width:
- 0.484 - 0.505
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Grade:
- 8
- Hardness:
- Rockwell C33-39
- Language Code:
- EN
- Material Standard:
- AISI 1021 - 1045
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Gr_8_Hex_Bolt_St-Zn.pdf
- Order Minimum Imperial:
- 50
- Order Minimum Uom Imperial:
- EA
- Outside Diameter:
- 0.2450 - 0.2500 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 4.57 in
- Product Length:
- 3 in
- Product Weight:
- 1034 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 150000 psi minimum
- Thread Per Inch:
- 20
- Yield Strength:
- 130000 psi minimum
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- G8HC and JG8HC
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JG8HC6 – Frequently Asked Questions
1) What thread and size is the Metallics JG8HC6 hex bolt, and what nuts will it take?
The JG8HC6 is a 1/4-20 bolt, 3 inches long, so it is 20 threads per inch with a measured shank diameter of 0.2450 to 0.2500 inch. That is standard 1/4-20 UNC, so any 1/4-20 nut or tapped 1/4-20 hole will take it. For full Grade 8 joint strength you want a matching Grade 8 (or higher) nut, not a standard Grade 2 nut.
2) Is Grade 8 overkill, or do I actually need it instead of Grade 5?
Grade 8 buys you tensile strength. The JG8HC6 is rated at 150,000 psi minimum tensile and 130,000 psi minimum yield, with a hardness of Rockwell C33-39 from medium carbon steel that has been heat treated. Grade 5 of the same diameter cannot reach those numbers. If you are hanging a bracket, strut, or a light fixture where the load is nowhere near the limit, Grade 5 or even Grade 2 will do the job. Choose Grade 8 where the joint is highly loaded or vibration means you need to torque it hard without yielding the fastener.
3) Can I use these Metallics Grade 8 bolts on a Buy American or ARRA funded job?
No. The JG8HC6 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. For a federally funded project with domestic sourcing requirements you will need a domestically produced fastener instead.
4) Will zinc plated Grade 8 bolts hold up outdoors or in a damp mechanical room?
The JG8HC6 is steel with a zinc finish. Zinc plating handles indoor and sheltered damp conditions, mechanical rooms, and interior electrical work fine. For direct weather exposure, wash-down, or coastal use, zinc plated carbon steel will eventually rust at any scratch or cut thread, so hot dip galvanized or stainless is the better call there. Note that stainless will not give you Grade 8 strength.
5) How many bolts come in a jar of Metallics JG8HC6, and can I buy fewer?
These ship 50 pieces to a jar, and 50 each is the minimum. Other sizes and quantities are available by request.
6) What steel are Metallics G8HC series bolts made from?
Medium carbon steel in the AISI 1021 to 1045 range, heat treated to Rockwell C33-39. The G8HC and JG8HC series is a cap screw commonly used in automotive and fleet work where Grade 5 strength is not enough, and it carries into electrical, plumbing, and HVAC installation.
