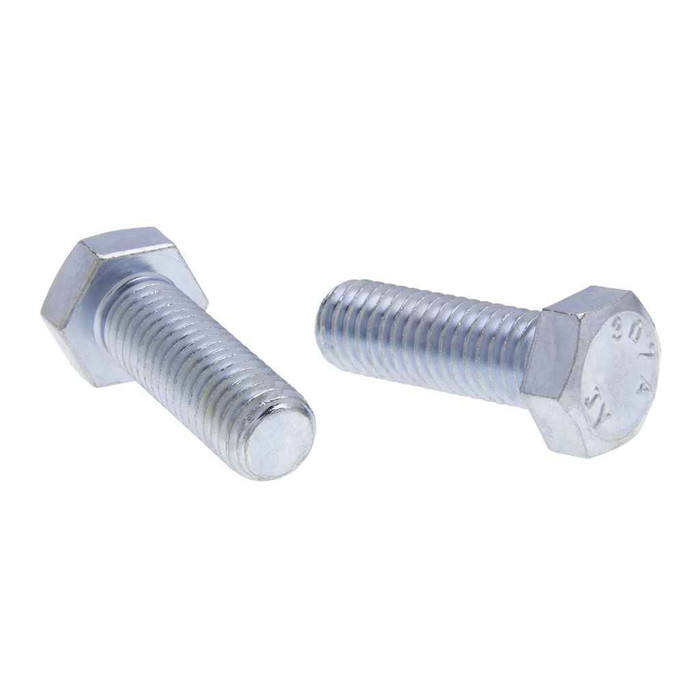

Bolts 1/4-20 X 4 Hx Tap Blt St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 4
- Fastener Width:
- 0.484 - 0.505
- Field Application:
- Complete Thread Engagement Applications, Electrical, Plumbing, Heating, Air Conditioning Industries
- Hardness:
- Rockwell B69-B100
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Tap_Bolt_St-Zn_and_18-8_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 2254 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 20
- Thread Standard:
- IFI-199 (2014)
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- HTB, JHTB, and JSHTB
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JHTB56 – Frequently Asked Questions
1) What grade or strength are the Metallics JHTB56 bolts, and are they strong enough for hanging strut and trapeze supports?
Minimum tensile strength is 60,000 psi with a hardness of Rockwell B69 to B100. That is standard low carbon commercial bolt strength, in line with a Grade 2 fastener, and it is the normal specification for electrical strut, channel nut, and light trapeze hanging work. If a structural engineer has called out a Grade 5 or Grade 8 bolt on the drawing, this is not the right fastener for that line item.
2) Will the Metallics JHTB56 meet a Buy American or ARRA requirement on a government job?
No. The JHTB56 hex tap bolt is not Buy American compliant and is not ARRA compliant, and the country of origin is listed as multiple. On a federally funded project with domestic sourcing language in the spec, this fastener will not satisfy it, so source a domestically produced hex tap bolt for that scope.
3) Can these zinc plated hex tap bolts be used outdoors or in a damp mechanical room?
These are carbon steel with a zinc plated finish, which is a general corrosion coating for indoor and sheltered use. It holds up in a mechanical room, a ceiling plenum, or inside a panel, but zinc plating is not a marine or chronically wet duty coating. For direct weather exposure or washdown areas, step up to a stainless hex tap bolt instead.
4) How many bolts come in a jar of Metallics JHTB56, and can I buy a smaller count?
They ship as a jar of 100 pieces, and the jar is the minimum order unit, so 100 is the smallest quantity. Metallics notes that other sizes and quantities in the HTB, JHTB and JSHTB hex tap bolt family are available by request if 1/4-20 x 4 in a 100 count jar is not the right packaging for your job.
