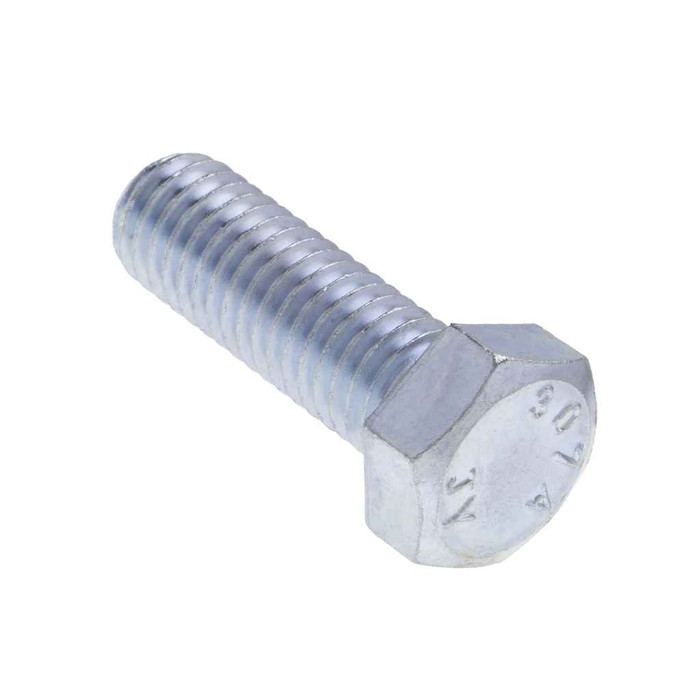

Bolts 1/4-20 X 6 Hx Tap Blt St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 6
- Fastener Width:
- 0.484 - 0.505
- Field Application:
- Complete Thread Engagement Applications, Electrical, Plumbing, Heating, Air Conditioning Industries
- Grade:
- 5
- Hardness:
- Rockwell B69-B100
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Tap_Bolt_St-Zn_and_18-8_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 3189 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Direction:
- Right Hand
- Thread Per Inch:
- 20
- Thread Standard:
- IFI-199 (2014)
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- HTB, JHTB, and JSHTB
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JHTB5 – Frequently Asked Questions
1) What thread size and pitch is the Metallics JHTB5 hex tap bolt?
The JHTB5 is a 1/4-20 hex tap bolt, 6 inches long, with 20 threads per inch and a right hand thread cut to IFI-199 (2014). Being a tap bolt, it's threaded the full length rather than having a plain shank, so it works where you need complete thread engagement all the way through the joint.
2) Do Metallics JHTB5 bolts meet Buy American or ARRA requirements on a government job?
No. The JHTB5 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. If your contract carries a domestic sourcing clause, this part will not satisfy it.
3) Will zinc plated steel hex tap bolts hold up outdoors or in a damp mechanical room?
The JHTB5 is steel with a zinc finish, which handles indoor and normally dry conditions fine. For sustained wet exposure, corrosive wash-down areas or coastal work, go to a stainless version instead, which Metallics offers in the same hex tap bolt family under the JSHTB designation.
4) How many bolts come in a jar of Metallics JHTB5, and can I buy fewer?
They ship 100 to a jar, and the jar is the minimum order unit, so 100 pieces is the smallest quantity. Other sizes and quantities are available by request.
5) What is the difference between a hex tap bolt and a regular hex cap screw?
A tap bolt like the JHTB5 is threaded for its full 6 inch length; a standard hex cap screw has an unthreaded shank under the head. Full threading is what you want when you're tapping into a threaded hole, stacking strut and channel nuts, or need the clamp point adjustable anywhere along the bolt. If your joint relies on a smooth shank bearing in a reamed hole, use a cap screw instead.
