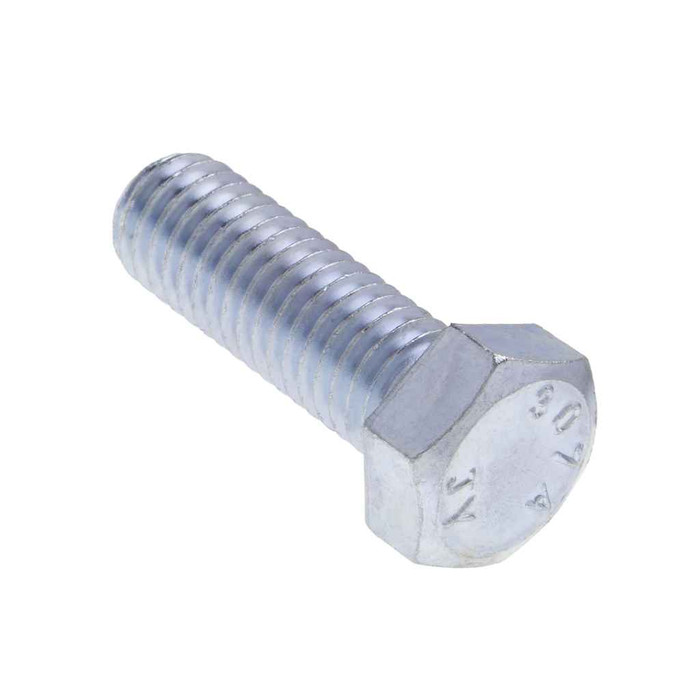

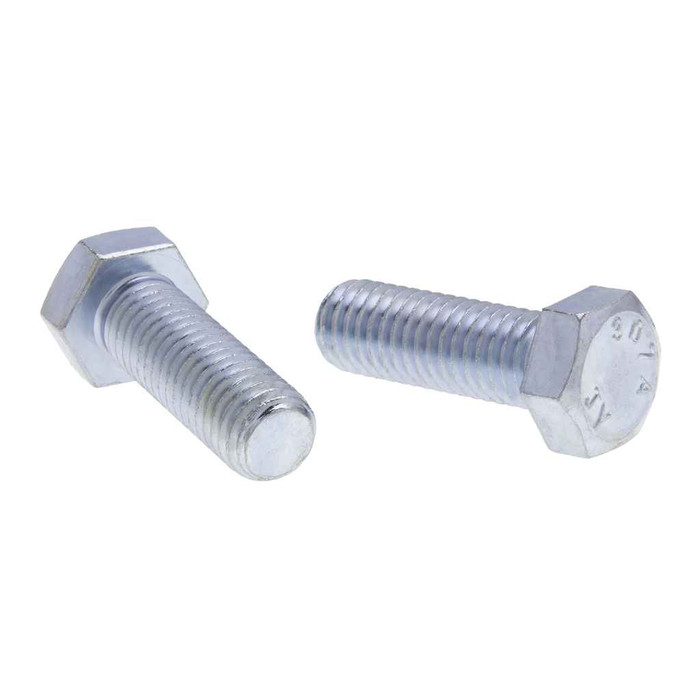

Bolts 1/4-20 X 1-3/4 Hx Tap Blt St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 1/3/04
- Fastener Width:
- 0.484 - 0.505
- Hardness:
- Rockwell B69-B100
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Tap_Bolt_St-Zn_and_18-8_SS.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 4.57 in
- Product Length:
- 3 in
- Product Weight:
- 1279 g
- Product Width:
- 76.2 MM
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Per Inch:
- 20
- Thread Standard:
- IFI-199 (2014)
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- HTB, JHTB, and JSHTB
- Product Finish:
- Zinc
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JHTB51 – Frequently Asked Questions
1) What thread size and pitch is the Metallics JHTB51 hex tap bolt?
The JHTB51 is a 1/4-20 hex tap bolt, meaning a 1/4 inch diameter with 20 threads per inch, which is the standard UNC coarse pitch for that diameter. It takes any standard 1/4-20 nut or tapped 1/4-20 hole. Length is 1-3/4 inches.
2) Is a hex tap bolt threaded all the way to the head, or does it have a shoulder?
A hex tap bolt is fully threaded the whole length under the head, unlike a hex cap screw that has an unthreaded shank. That is what makes the JHTB51 useful for threading directly into a tapped hole or a strut nut, where you want engagement right up to the clamped surface. Thread form follows IFI-199 (2014).
3) What strength grade are these 1/4-20 hex tap bolts rated to?
Minimum tensile strength is 60,000 psi, with hardness in the Rockwell B69 to B100 range. That is low-carbon commercial grade material, appropriate for strut, enclosure, bracket, and general electrical mounting work. For structural or high-preload connections, step up to a higher grade fastener instead.
4) What wrench or socket size fits the head on the Metallics JHTB51?
Head width across the flats measures 0.425 to 0.438 inches, which is a 7/16 inch wrench or socket. Head type is a standard hex.
5) Will zinc plated steel hex tap bolts hold up outdoors or in a damp mechanical room?
The JHTB51 is steel with a zinc finish, which handles indoor and protected-interior electrical work well but is not a stainless part. For wet exterior, coastal, or washdown locations, specify the 18-8 stainless version in the same series rather than the zinc.
6) How many bolts come in a jar of Metallics JHTB51?
They ship 100 to a jar, and 100 count is the order minimum. Total weight of the jar is 1279 g. The jar packaging keeps loose 1-3/4 inch bolts contained on a cart or in a gang box rather than spilling in a bag.
7) Do these Metallics hex tap bolts meet Buy American requirements for a government job?
The JHTB51 is flagged compliant for both Buy American and ARRA. Country of origin is listed as multiple, so if your contract requires a single documented origin, request origin paperwork on the specific lot.
8) Can I get 1/4-20 hex tap bolts in a length other than 1-3/4 inches?
The JHTB51 covers the 1/4-20 by 1-3/4 inch size in a 100 count jar. Other lengths and pack quantities in the HTB, JHTB, and JSHTB series are available by request, including bulk HTB and stainless JSHTB.
