Metallics JHTB11 Bolts 1/4-20 ...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.34
$36.67

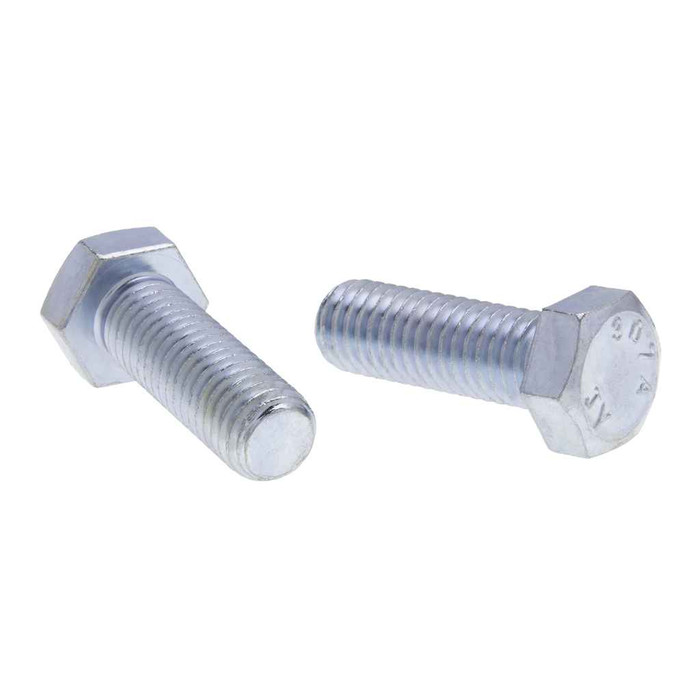

Metallics JHTB11 Bolts 1/4-20 X 1/2 Hx Tap Blt St-zn (Jar 100)

Metallics JHTB11 Bolts 1/4-20 X 1/2 Hx Tap Blt St-zn (Jar 100), 100 Pack

(No reviews yet) Write a Review

Model: JHTB11
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.34
$36.67
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/4-20 X 1/2 Hx Tap Blt St-zn (Jar 100)

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Fastener Head Height:
Nov-64 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.425 - 0.438 in.
Fastener Height:
0.150 - 0.188
Fastener Length:
2-Jan
Fastener Width:
0.484 - 0.505
Field Application:
Complete Thread Engagement Applications, Electrical, Plumbing, Heating, Air Conditioning Industries
Hardness:
Rockwell B69-B100
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Tap_Bolt_St-Zn_and_18-8_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Group:
Fasteners
Product Height:
2.15 in
Product Length:
3 in
Product Weight:
558 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
20
Thread Standard:
IFI-199 (2014)
Department:
Electrical
Product Subgroup:
Bolts
Product Type:
Hexagonal Bolt
Type2:
Hexagonal Bolt
Series:
HTB, JHTB, and JSHTB
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JHTB11 – Frequently Asked Questions

1) What thread size and pitch is the Metallics JHTB11 hex tap bolt?
The JHTB11 is a 1/4-20 hex tap bolt, so 1/4 inch diameter with 20 threads per inch, right hand thread, made to IFI-199 (2014). It mates with any standard 1/4-20 nut, coupling, or tapped channel insert.
2) How strong are the Metallics JHTB11 hex tap bolts?
Rated at 60,000 psi minimum tensile strength with a hardness of Rockwell B69 to B100. That is standard low carbon commercial grade material, fine for hanging conduit, strut, boxes and light equipment. If the drawing calls out an SAE Grade 5 or Grade 8 bolt for a structural or high load connection, this is not that bolt.
3) Do Metallics JHTB11 bolts meet Buy American or ARRA requirements on a federal job?
No. The JHTB11 is not Buy American compliant and is not ARRA compliant, with country of origin listed as multiple. On a federally funded project with domestic sourcing language, these will not pass. Specify a domestically produced fastener instead.
4) Will zinc plated steel hex tap bolts hold up outdoors or in a damp mechanical room?
The JHTB11 is zinc plated steel, which suits dry interior electrical, plumbing, heating and air conditioning work and handles incidental moisture. For sustained wet, exterior, or corrosive exposure, step up to the stainless version of the same series (JSHTB) in 18-8 stainless rather than the zinc plated one.
5) What wrench or socket size fits these 1/4-20 Metallics hex tap bolts?
Head width across flats runs 0.425 to 0.438 in., which is a 7/16 inch wrench or socket. One driver covers the whole jar.
6) How are these Metallics hex tap bolts packaged and what is the minimum order?
They come 100 pieces to a jar, and the jar is the order minimum, so you buy in multiples of 100. The jar packaging is handy on a cart or in a gang box because it reseals and doesn't dump like a bag.
7) I need the same bolt in a different length or a bigger quantity. Does Metallics make it?
Yes. The JHTB11 is one size within the HTB, JHTB and JSHTB hex tap bolt series, and other sizes and quantities are available by request. HTB is the bulk pack, JHTB the zinc jar pack, JSHTB the stainless. Give the diameter, thread, length and finish you need.
