Metallics Bolts 1/4-20 X 1-1/4...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$50.32
$37.87

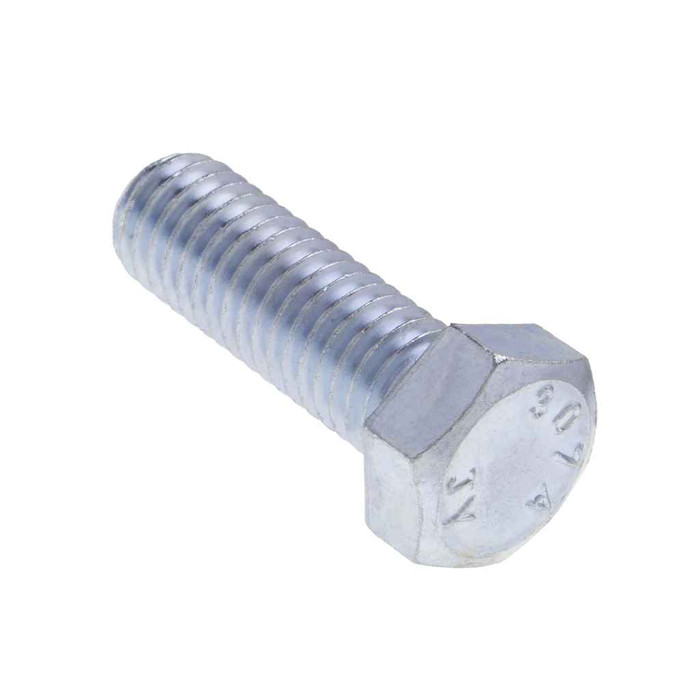

Metallics Bolts 1/4-20 X 1-1/4 Hx Tap Blt St-zn

Metallics Bolts 1/4-20 X 1-1/4 Hx Tap Blt St-zn, 100 Pack

(No reviews yet) Write a Review

Model: JHTB49
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.32
$37.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Bolts 1/4-20 X 1-1/4 Hx Tap Blt St-zn (Jar 100)

  • Additional Notes

    • Other sizes and quantities available by request

Manufacturer Resources

Product Specs

Arra Compliant:
N
Buy American Compliant:
No
Division:
Electrical H1
Fastener Head Height:
Nov-64 in.
Fastener Head Type:
Hex
Fastener Head Width:
0.425 - 0.438 in.
Fastener Height:
0.150 - 0.188
Fastener Length:
1/1/04
Fastener Width:
0.484 - 0.505
Field Application:
Complete Thread Engagement Applications, Electrical, Plumbing, Heating, Air Conditioning Industries
Hardness:
Rockwell B69-B100
Language Code:
EN
Neurspe:
https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Tap_Bolt_St-Zn_and_18-8_SS.pdf
Order Minimum Imperial:
100
Order Minimum Uom Imperial:
JR
Pack Type:
Jar
Product Height:
3.6 in
Product Length:
3 in
Product Weight:
939 g
Product Width:
76.2 MM
Sub Division:
Electrical-E H2
Tensile Strength:
60000 psi minimum
Thread Direction:
Right Hand
Thread Per Inch:
20
Thread Standard:
IFI-199 (2014)
Product Type:
Hexagonal Bolt
Product Group:
Fasteners
Department:
Electrical
Product Subgroup:
Bolts
Type2:
Hexagonal Bolt
Series:
HTB, JHTB, and JSHTB
Product Finish:
Zinc
Product Details:
Hexagonal Bolt
Product Material:
Steel

Metallics JHTB49 – Frequently Asked Questions

1) What thread does the 1/4-20 Metallics hex tap bolt take, and will standard 1/4-20 nuts and channel nuts fit?
It's a 1/4 inch diameter bolt with 20 threads per inch, right hand, made to IFI-199 (2014). That is standard 1/4-20 UNC, so any 1/4-20 nut, channel nut, or tapped 1/4-20 hole will take it.
2) How strong are these 1/4-20 hex tap bolts, and are they rated for structural use?
Tensile strength is 60,000 psi minimum with a hardness of Rockwell B69 to B100. That is a standard low carbon commercial grade bolt, fine for hanging strut, boxes, equipment supports and general MRO work. It is not a Grade 5 or Grade 8 fastener, so don't substitute it where a drawing calls out a higher grade or a structural connection.
3) Do these Metallics bolts meet Buy American or ARRA requirements for a government job?
No. The JHTB49 hex tap bolts are not Buy American compliant and are not ARRA compliant, with a multiple country of origin. If your project has domestic sourcing requirements, these will not pass.
4) What wrench or socket size do I need for these Metallics hex tap bolts?
The hex head measures 0.425 to 0.438 inch across the flats, which is a 7/16 inch wrench or socket. Standard for a 1/4-20 bolt head.
5) Are these zinc plated steel bolts okay for outdoor or damp locations?
The JHTB49 is steel with a zinc finish. Zinc plating is a general purpose coating suited to dry interior and protected locations. For wet, washdown, coastal or chemically aggressive areas, step up to a stainless bolt instead, which Metallics offers in the same hex tap bolt family (the 18-8 stainless version of the HTB line).
6) How many Metallics JHTB49 bolts come in a jar, and can I buy fewer?
They ship 100 to a jar, and 100 (one jar) is the order minimum. Metallics notes other sizes and quantities are available by request, so if you need a different length or a bulk box, ask rather than piecing together jars.
7) Will a 1-1/4 inch long 1/4-20 hex tap bolt be long enough for my assembly?
The JHTB49 gives 1-1/4 inches of usable length measured from under the head, and because it's threaded the full length you can engage a nut anywhere along it. Add up your material stack plus roughly 1/4 inch for full nut engagement; if the stack is over about an inch, go to a longer length in the same HTB series.
8) How much does a jar of 100 Metallics 1/4-20 x 1-1/4 hex tap bolts weigh?
A jar runs 939 grams, a little over two pounds, and the jar itself measures 3 inches by 3.6 inches. Easy to throw a couple on the truck without eating into your load.
