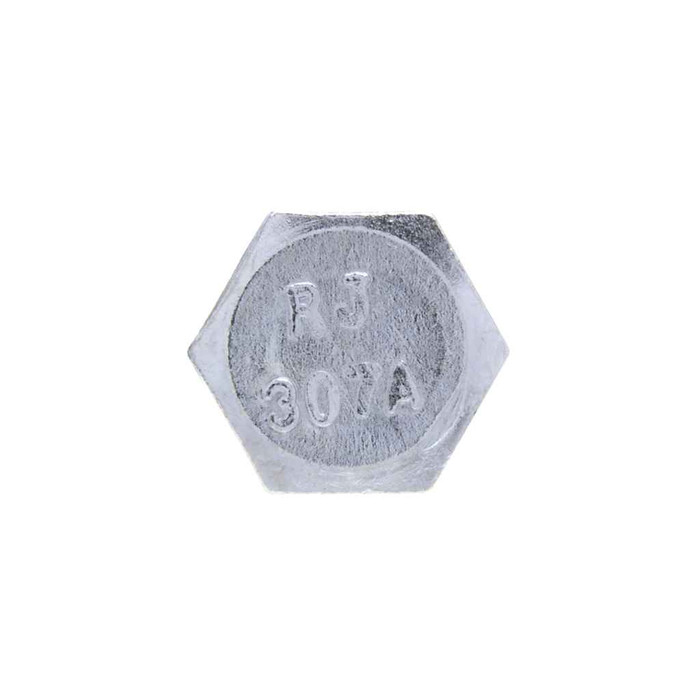

Bolts 1/4 X 6 Hx Lag Blt Galv (Jar 100)
Additional Notes
- Other sizes and quantities available by request
Features
- A full-bodied boltwith hex head, spaced threads and a gimlet point
- For use in corrosive enviroments
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- China
- Dimensional Standard:
- ASME B18.2.1-1996
- Division:
- Electrical H1
- Fastener Head Height:
- Nov-64 in.
- Fastener Head Type:
- Hex
- Fastener Head Width:
- 0.425 - 0.438 in.
- Fastener Height:
- 0.150 - 0.188
- Fastener Length:
- 6
- Fastener Width:
- 0.484 - 0.505
- Hardness:
- Rockwell B70-B100
- Language Code:
- EN
- Material Standard:
- AISI 1006 - 1022
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Hex_Lag_Bolt_St-Zn_18-8_SS_Galv.pdf
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Outside Diameter:
- 0.237 - 0.260 IN
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 6.95 lbs
- Product Width:
- 4.5 in
- Sub Division:
- Electrical-E H2
- Tensile Strength:
- 60000 psi minimum
- Thread Per Inch:
- 10
- Washer Od:
- 0.094 in.
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- BLS and JBLS
- Product Finish:
- Galvanized
- Product Details:
- Hexagonal Bolt
- Product Material:
- Steel
Metallics JBLS10G – Frequently Asked Questions
1) What size lag bolt is the Metallics JBLS10G, and how many come in a jar?
The JBLS10G is a 1/4 inch by 6 inch hex head lag bolt, galvanized steel, packed 100 to a jar. The order minimum is 100 count, so a jar is the smallest quantity you buy.
2) Can I use these galvanized lag bolts outdoors or in a damp location?
That is what they are made for. The galvanized coating is specified for use in corrosive environments, so exterior mounting, damp utility rooms and coastal work are all in scope. Steel body, galvanized finish.
3) Do I need to drill all the way through, or will these bite on their own?
These are full-bodied lag bolts with a gimlet point and spaced threads, so they cut their own thread in wood once started in a pilot hole. They are not through-bolts and take no nut. At 6 inches of length you are typically going through strapping or a mounting plate into a stud or joist.
4) Are these lag bolts strong enough for hanging electrical strut, conduit racks or equipment?
Tensile strength is rated at 60,000 psi minimum with a hardness of Rockwell B70-B100, made from AISI 1006-1022 steel. That is standard low carbon lag screw material, suitable for general anchoring of strut, backboards and conduit supports into wood framing. For rated structural connections, work from your engineer's withdrawal values for the substrate.
5) Do these Metallics lag bolts meet Buy American and ARRA requirements for a federal or institutional job?
The JBLS10G is flagged compliant for both Buy American and ARRA. Country of origin is listed as China, so if your specification requires domestic melt and manufacture rather than the compliance flag, verify against your contract language before submitting.
6) What dimensional standard do these hex lag bolts conform to?
Dimensions follow ASME B18.2.1-1996, the standard for square and hex bolts and screws. If your submittal calls out B18.2.1 head dimensions, the JBLS10G answers it.
7) Should I add washers when installing these galvanized lag bolts?
A washer is usual under a lag head to spread load on wood and keep the head from crushing the surface. The spec references a washer OD of 0.094 in.; washers are not described as supplied with the jar, so plan on ordering galvanized washers separately to match the galvanized bolt and avoid dissimilar metal corrosion.
8) Can I get this Metallics lag bolt in a different length or diameter than 1/4 x 6?
Yes. The BLS and JBLS series covers other sizes and quantities by request, so if you need a shorter 1/4 inch lag or a heavier 5/16 or 3/8 diameter for the same galvanized application, ask for the matching series number rather than substituting a plain zinc bolt in a wet location.
9) How much does a jar of 100 of these 1/4 x 6 lag bolts weigh for shipping?
The packed jar weight is listed at 6.95 lbs, with pack dimensions of 7.25 in. by 4.5 in. by 4.5 in. Useful if you are staging multiple jars on a van shelf or figuring freight on a bulk order.
