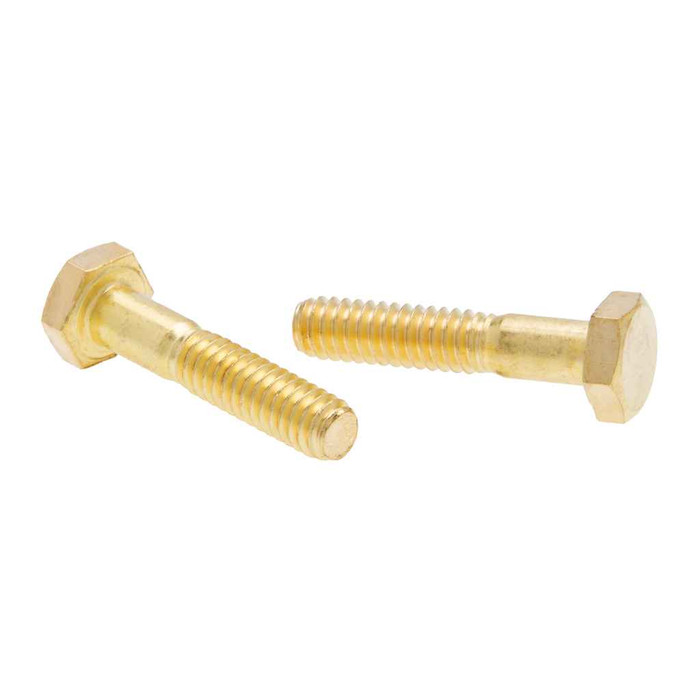

Bolts 3/8-16 x 1-3/4 HXBT Br (Jar 100)
Additional Notes
- other sizes and quantities available by request
Manufacturer Resources
Product Specs
- Arra Compliant:
- C
- Buy American Compliant:
- C
- Country Of Origin:
- China
- Division:
- Electrical H1
- Fastener Head Color:
- Brass
- Fastener Head Type:
- Hex
- Fastener Length:
- 1/3/04
- Language Code:
- EN
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- CT
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 7.25 in
- Product Length:
- 4.5 in
- Product Weight:
- 3125 g
- Product Width:
- 114.3 MM
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 16
- Department:
- Electrical
- Product Subgroup:
- Bolts
- Product Type:
- Hexagonal Bolt
- Type2:
- Hexagonal Bolt
- Series:
- JBRHC
- Product Details:
- Hexagonal Bolt
- Product Material:
- Brass
Metallics JBRHC60 – Frequently Asked Questions
1) What thread size are the Metallics JBRHC60 brass hex bolts?
The JBRHC60 is a 3/8-16 x 1-3/4 inch hex bolt, so it's 3/8 inch diameter with 16 threads per inch. That's UNC coarse thread, which is what matches a standard 3/8-16 nut or a tapped 3/8-16 hole in a strut, box or ground bar.
2) Are these hex bolts solid brass or just brass plated?
Solid brass. The material is listed as brass and the head color as brass, not a plating over steel. That matters for grounding and bonding work and for wet or corrosive locations where a plated steel bolt would rust through. It also means you should not expect steel-grade strength from them, so they are not a substitute for a Grade 5 structural bolt.
3) How many bolts come in a jar of Metallics JBRHC60?
100 pieces per jar, and 100 count is also the order minimum, so one jar is the smallest buy. The jar packaging keeps loose brass hardware from mixing on a service truck or in a shop bin.
4) Do these brass bolts meet Buy American and ARRA requirements for a federal job?
The JBRHC60 is flagged as both ARRA compliant and Buy American compliant in the product record, with country of origin China. If your contract language treats those flags and the origin differently, get the flag confirmed against your specific contract before you submit it on a federal or federally funded project.
5) Do I need nuts and washers with these 3/8-16 brass hex bolts?
The jar contains hex bolts only, 100 of them. Anything else the connection needs, 3/8-16 brass hex nuts, flat washers or lock washers, is ordered separately. Keep the nuts and washers in brass too if the reason you picked brass was corrosion resistance or bonding, since mixing brass with plated steel in a damp location sets up galvanic corrosion at the joint.
6) Can I get the Metallics JBRHC brass hex bolts in a different length or diameter?
Yes. JBRHC60 is the 3/8-16 x 1-3/4 inch size in the JBRHC brass hex bolt series, and other sizes and quantities in the series are available by request. Give the diameter, thread, and length you need when you ask.
